China mini cnc lathe machine CK6146ZX servo motor high precision small fanuc cnc metal lathe good price quality automatic

Supplier: Zhejiang Kaida Machine Tool Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Xie
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Spindle taper:	MT7;	Tool holder:	25x25mm;
Tool Post Stations:	8,6,4;	Spindle nose:	D8;
Max. Spindle Speed (r.p.m):	2000;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Package Preview:	;	Type:	Horizontal;
Warranty:	1 Year;	Structure:	Flat Bed Lathe;
Automatic Grade:	Automatic;	Rapid speed x/z axis:	8/10 m/min;
Power(W):	5.5KW (Optional:7.5KW);	No. of Spindles:	Single;
Number of Axes:	3;	Travel (Z Axis)(mm):	960;
Max. Swing Diameter (mm):	460 mm;	CNC control:	Optional (Fanuc, Simens, GSK);
Travel (X Axis)(mm):	280;	Key Selling Points:	High Productivity;
Positioning Accuracy (mm):	0.015;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Japan,Malaysia,Australia;
Width of bed (mm):	336;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan;
CNC or Not:	CNC;	Machining Capacity:	Medium Duty;
Brand Name:	KD;	Certification:	CE, ISO9001, ISO14001;

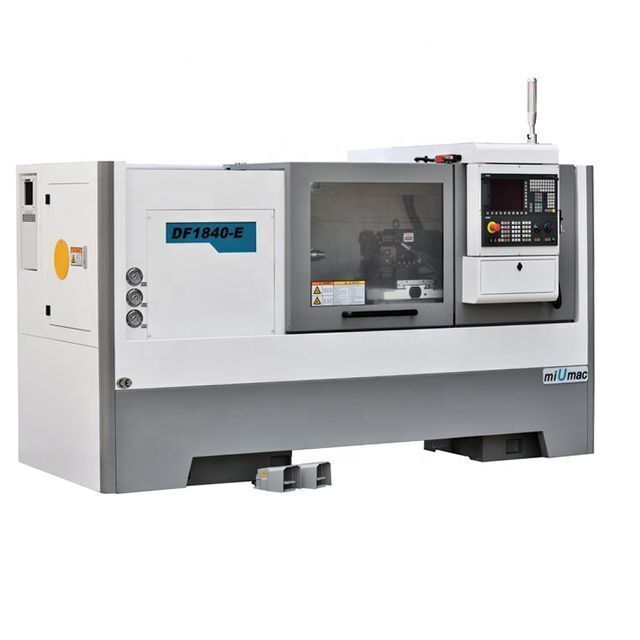

Repeatability (X/Y/Z) (mm):	0.006;	Model Number:	DF1840-E;
Dimension(LWH):	(2060/ 2310/ 2790)11801500mm;	Packaging Detail:	International Heat Treatment Standard Export Wooden Package;
Max. Turned Length (mm):	850;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Spindle Bore(mm):	80 m'm;	Condition:	New;
Supply Ability:	500 Set/Sets per Month;	Weight:	2200kg;
Max. Length of Workpiece (mm):	1000 mm;	Port:	Shanghai Port;
Weight (KG):	2350;	Place of Origin:	Zhejiang China;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Home Use,Retail,Construction works ;	Spindle Motor Power(kW):	5.5;
Voltage:	Made to order;	Payment Terms:	L/C,D/P,T/T;

Product Description

Variable speed cnc machine
Product Feature 1) Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors. 2) Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. 3) The post is located on precision contrite gears with a high repeated positioning accuracy. 4) Both chuck and tailstock are supplied with hydraulic or manual type. 5) The surface of the bedways is supersonic frequency hardened and precision ground with a long service life. 6) The spindle bore size is 80mm. The spindle system is high in the rigidity and accuracy.

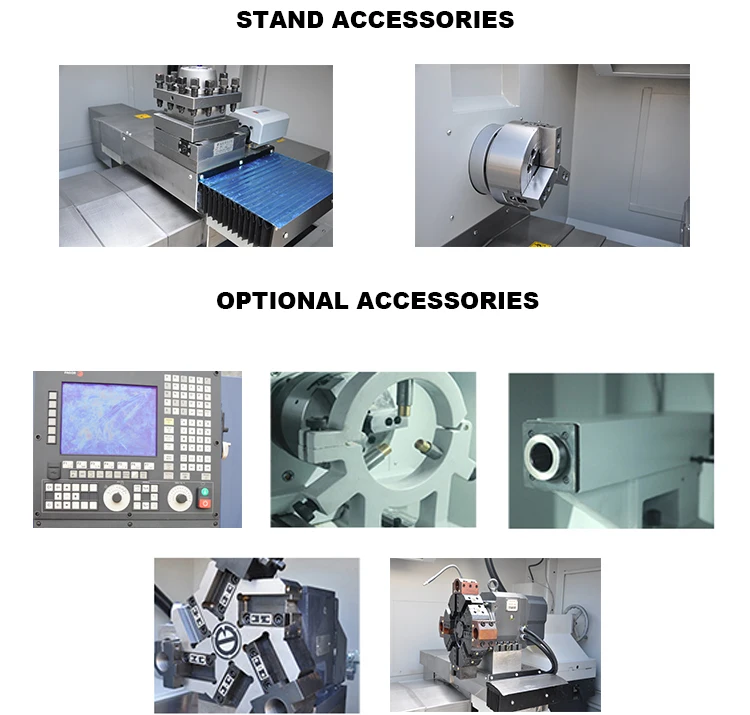

Standard Accessories	Standard Accessories	Optional Accessories
FANUC 0i TF(5) cnc controller FANUC servo motor for X/Z axis Invetor Motor 3-jaw manual chuck 4-way tool post	Manual tailstock Half cover/one door LED light Tool box Spindle center, live center	FANUC 0i TF(5) - 3 axis SIMENS 808DA -2 or 3 axis GSK 980TDC- 2 or 3 axis 6-way tool turret 8-way tool turret Full cover/two doors

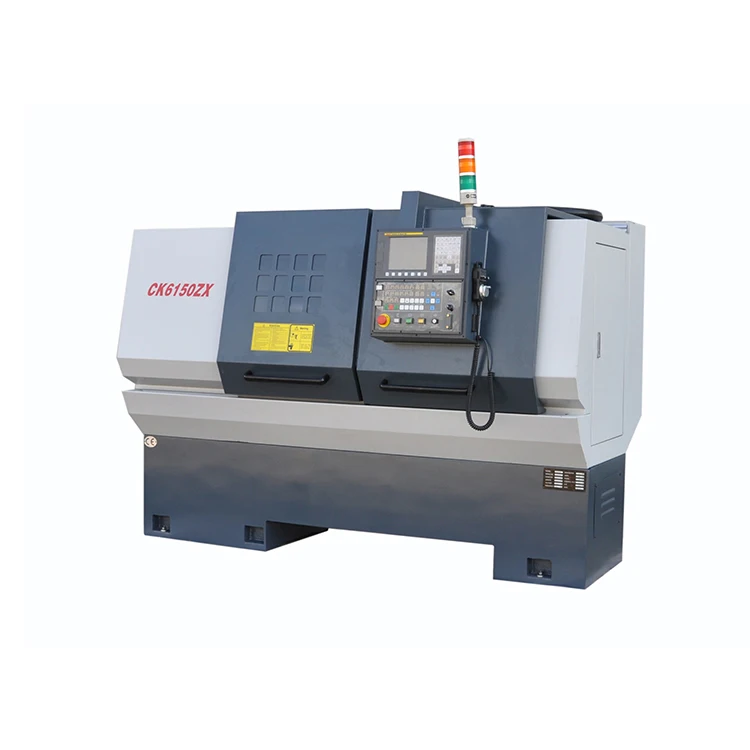

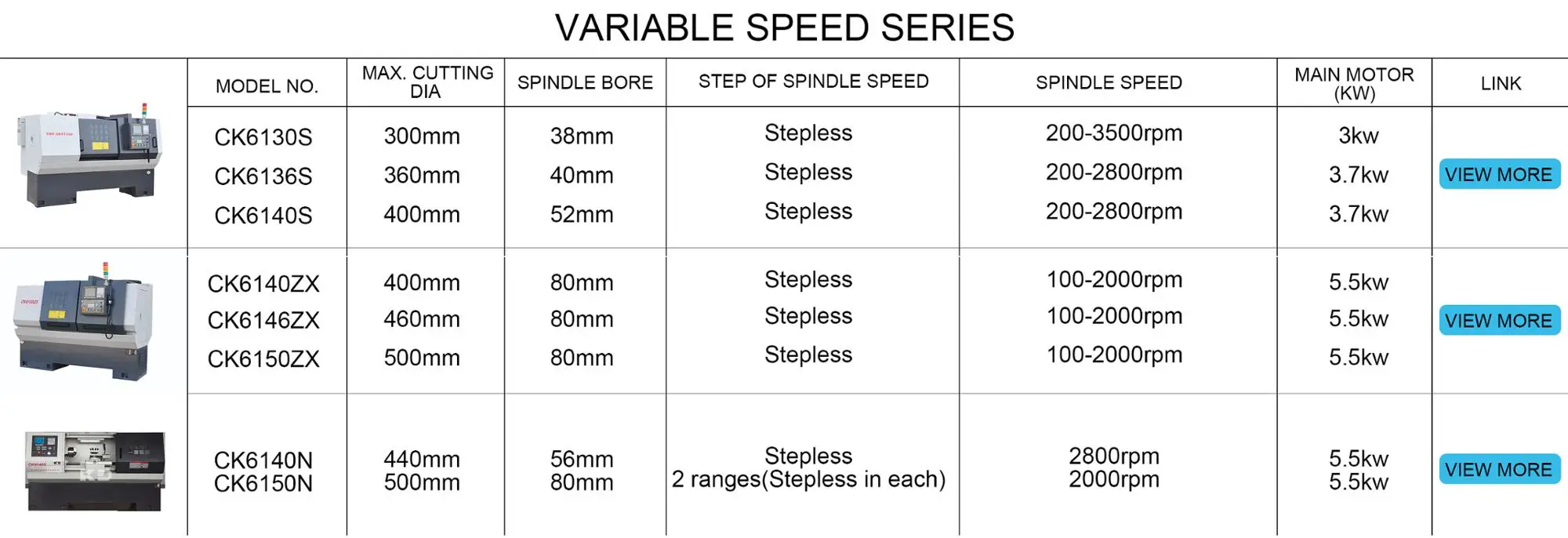

MODELS	CK6140ZX	CK6146ZX	CK6150ZX
CAPACITY
Max.cutting dia for disc parts	400mm	460mm	500mm
Max.cutting dia for axle parts	210mm 165mm( Gang tools)	240mm 205mm( Gang tools)	280mm 245mm( Gang tools)
Max. length of workpiece	750/ 1000/ 1500mm
Max.turning length	600/ 850/ 1350mm
6-way turret Max turning length	430/ 680/ 1180mm
6-way turret Max turning diameter	280mm	340mm	340mm
SPINDLE
Spindle nose	D8
Spindle bore	80mm
Taper bore of spindle	M.T.NO.7
Steps of spindle speed (manual)	Variable
Range of spindle speed	100~2000rpm
FEED
Rapid feed for axis X	8m/min
Rapid feed for axis Z	10m/min
TRAVEL
Max.travel of Z axis	710/ 960/ 1460mm
Max.travel of X axis	250mm 320mm (Gang tools)	280mm 320mm (Gang tools)
TOOL POST
Tool post stations	4-way, 6-way, gang tools
Tool cross section	25×25mm
TAILSTOCK
External diameter of tailstock sleeve	75mm
Taper bore of tailstock sleeve	M.T.NO.4	M.T.NO.5
Max.traverl of tailstock sleeve	130mm
OTHERS
Min. input	0.001mm
Main motor power	5.5kw (specific order7.5kw)
Coolant pump power	75w
Overall dimensions(L×W×H)	(2060/ 2310/ 2790)×1180×1500mm
Net weight	2100/2250/2800kg	2200/2350/2900kg

click to get full spec PDF

click to get latest price

More Similar Products

Our Mission

Kaida is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005 to ensure the best in quality.

Agents Wanted

We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop KD to a global brand. Wherever you are from, we are looking forward to explore new market with you.

Packaging & Shipping

Our Services

Delivery

The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
