high quality bench lathe(TORNO) C0636B/360X1000MM manual turret lathe manual universal lathe machine

Supplier: Zhejiang Kaida Machine Tool Co., Ltd.
Region: Zhejiang, China
Contact: Ms Alice Xie
Price: $2400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Spindle Bore(mm):	38 m'm;	Power(W):	1.5kw;
Weight (KG):	510 KG;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Swing over bed:	330mm;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Home Use,Retail,Construction works ;
Place of Origin:	Zhejiang China;	Model Number:	DC1340-B;
Voltage:	380v/220v/400v;	Spindle Motor Power(kW):	1.5;
Spindle nose:	D4;	Packaging Detail:	EXPORT WOODEN CASE;
Type:	Horizontal;	Spindle speed:	70~2000rpm;
Max. Length of Workpiece (mm):	1000;	Brand Name:	KD;
Machining Capacity:	Light Duty;	Width of bed (mm):	186;
Spindle hole:	38mm;	Certification:	CE ISO9001;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Malaysia,Australia;	Condition:	New;
Width of bed:	186mm;	Key Selling Points:	Easy to Operate;
Max. Turned Length (mm):	1000;	Max. Swing Diameter (mm):	330;
Automatic Grade:	Manual;	Year:	2020;
Warranty:	1 Year;	Weight:	510KG;
Dimension(LWH):	192x75x140cm;	Range of Spindle Speed(r.p.m):	70 - 2000;
Package Preview:	;	Supply Ability:	100 Set/Sets per Month;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Motor power:	1.5kw;
Payment Terms:	L/C,T/T;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan;
Tool holder:	16x16mm;	Port:	Shanghai;

Product Description

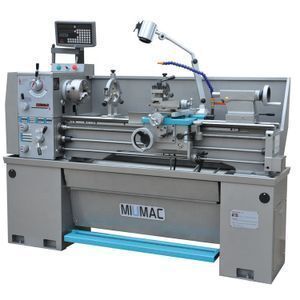

Bench lathe DC1340-B

Product Feature

1) Precision ground and supersonic frequency hardened bed ways
2) The spindle is supported with precision roller bearings
3) Headstock gears are made of high quality steel, ground and hardened
4) Spindle speed range 70-2000RPM
5) Sealed and easy operating feed box has various feeds and thread cutting functions.

Standard Accessories

160mm 3-jaw chuck

200mm 4-jaw chuck

300mm face plate
4-way tool post

Manual tailstock

Steady rest

Follow rest

Standard Accessories

Lubrication system

Coolant system

Foot break

Halogen work lamp

Threading dial

Spindle center, live center

Tool box and adjusting tools

Optional Accessories

Drive plate

Chuck cover

Tool post cover

Leadscrew cover

Tapper attachment

Quick change tool post

Digital readout

Bench lathe DC1340-B
CAPACITY		SPINDLE
Max.swing over bed	330mm (14")	Spindle bore	38mm
Max.swing over carriage	198mm	Taper bore of spindle	M.T.NO.5
Max.swing over gap	476mm	Steps of spindle speed	8
Width of bed	186mm	Range of spindle speed	70~2000rpm
Max.length of	500/750/1000mm	Spindle nose	D4
THREADING		FEED
Metric thread	0.45-10mm/ 27	Range of longitudinal feeds	0.0026~0.040in/r (0.067-1.019mm/r)
Inch thread	3 1/2~80 T.P.I./36	Range of cross feeds	0.0009~0.0138in/r (0.018-0.275mm/r)
TAILSTOCK		OTHERS
Travel of tailstock quill	95mm	Power of main motor	2HP(1.5kw) 110v or 220v (1PH/3PH)
Taper bore of tailstock quill	M.T.NO.3	Net weight	510kg
click to get full spec PDF		click to get latest price

More Similar Products

Our Mission

Kaida is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005 to ensure the best in quality.

Agents Wanted

We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop KD to a global brand. Wherever you are from, we are looking forward to explore new market with you.

Packaging & Shipping

Our Services

Delivery

The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

Payment

We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)

Warranty

The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
