Industrial medium frequency induction electric crucible 150kg 250kg 500kg copper aluminium smelting furnace for casting

Supplier: Luo Yang Hongteng Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Wang
Price: $6900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Matching transformer capacity:	900KVA;	furnace body:	alumium shell;
Weight (T):	0.15;	Port:	qingdao,shanghai ,tianjin;
Condition:	New;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Farms,Construction works ,Energy & Mining;
Certification:	ISO9001:2008 CE;	Place of Origin:	Henan China;
MF frequency:	1000KHZ;	Warranty:	1 Year;
tilting method:	reducer cotrol;	Voltage:	660V;
Power (kW):	100;	Core Components:	Furnace;
After Warranty Service:	Video technical support,Online support;	Input power:	100KW;
Dimension(LWH):	13008502000mm;	Package Preview:	;
Showroom Location:	Viet Nam,Indonesia,Russia;	Name:	Induction electric crucible aluminium melting furnace;
Video outgoing-inspection:	Provided;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;

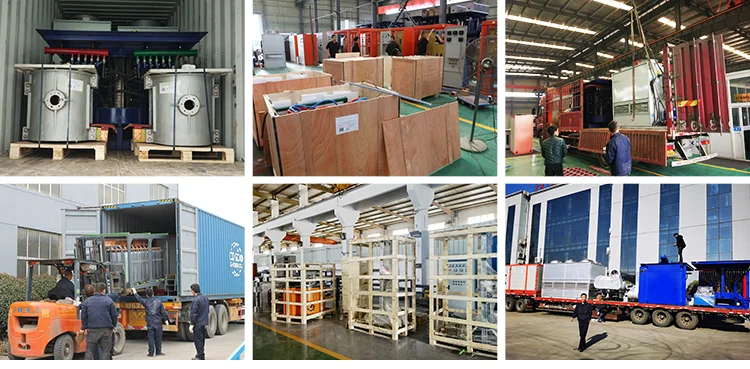

Packaging Detail:	plastic film for winding and plywood wooden cases for packing scrap stainless steel melting furnace loading to container shipe by sea;	Rate temeprature:	1650 Degree;
Supply Ability:	500 Set/Sets per Year;	ss. steel temperature:	1450 degree;
Type:	Induction Furnace;	Compostion:	power cabinet and furnace body;
Payment Terms:	L/C,D/P,D/A,T/T,cash;	Usage:	melting metal scrap,like stainless steel aluminum,copper,etc.,Melting Furnace;
Marketing Type:	Hot Product 2019;	Key Selling Points:	High Productivity;
Brand Name:	Hongteng;	Machinery Test Report:	Provided;
Warranty of core components:	1 Year;	Local Service Location:	Viet Nam;

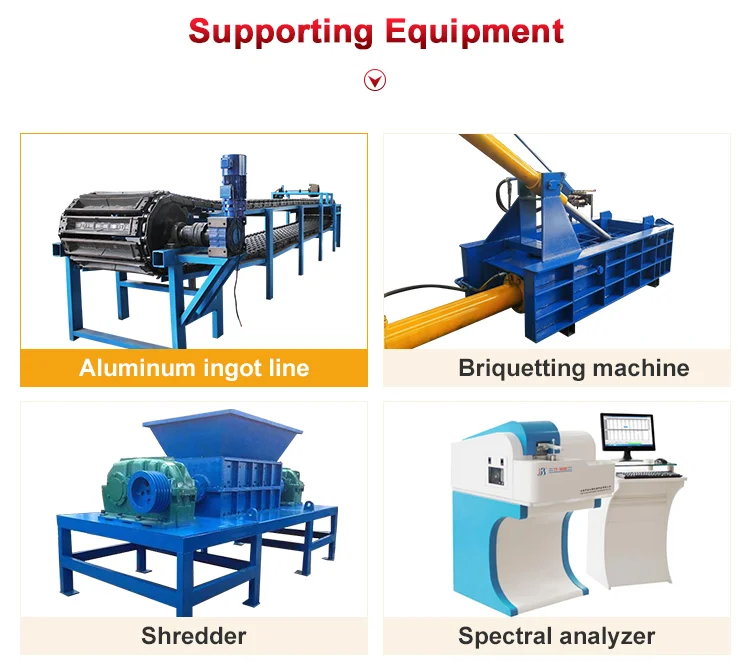

We are factory, we can produce 50Kg-20T capacity aluminum melting furnace, we also provide aluminum ingot casting production lines

Whether you buy or not, you can send us inquiry for more videos.

PRODUCT SHOW

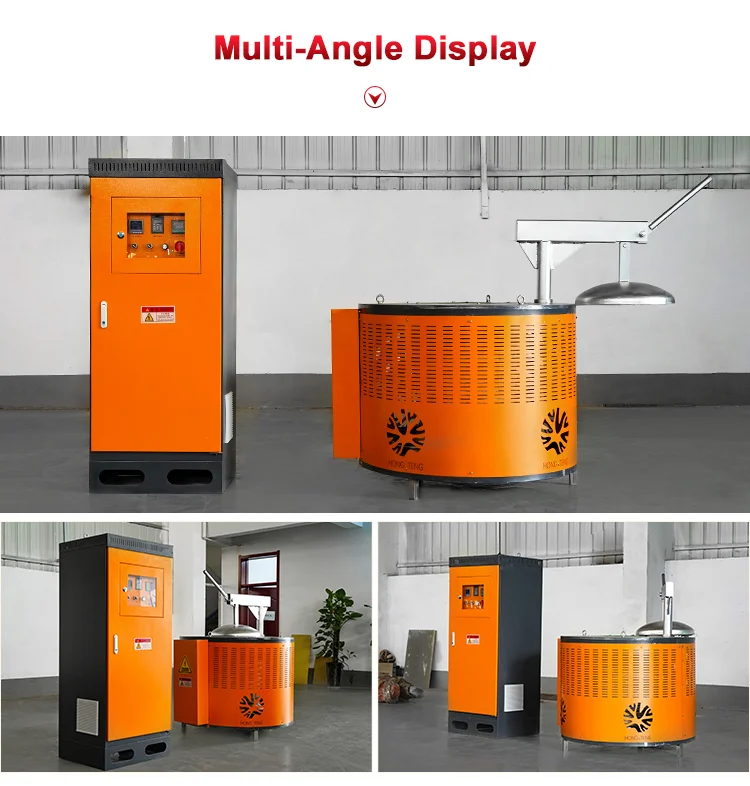

Fixed Aluminum Melting Furnace

This aluminum melting furnace is with temperature holding function, suitable for various working piece casting jobs. The furnace doesn't need to build the foundation, easy to install, it has intelligent temperature control, Leakage, overflow, power off, and other safety protection. This IGBT furnace can save 50% electricity compared with the resistance furnace & 60% electricity of the MF furnace. Per KWH can be melting 2.5-2.7KGS aluminum.

DETAIL DISPLAY

SPECIFICATION

Capacity	Power	Voltage	Cabinet Size	Weight	Crucible Size	Transformer
100KG	40KW	3*380v	8006201850	0.5T	385*700	50KVA
150KG	40KW	3*380v	8006201850	0.6T	620*470	100KVA
250KG	120KW	3*380v	8006201850	0.8T	620*650	150KVA
350KG	140KW	3*380V	8006201850	0.8T	620*850	175KVA
500KG	160KW	3*380V	8006201850	1T	710*720	200KVA
700KG	200KW	3*380V	13008502000	1T	700*1230	250KVA
1000KG	320KW	3*380v	13008502000	1.2T	780*1400	400KVA
1300KG	400KW	3*380v	13008502000	1.2T	850*1300	500KVA
