Waste scrap aluminum melting furnace automatic control continuous copper aluminum ingot production line casting machine

Supplier: Luo Yang Hongteng Electrical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Jessica Wang
Price: $13900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 Year;	Weight:	Non-standard;
Power(W):	1000KW;	Packaging Detail:	plastic film for wraping and plywood wooden cases for packing copper smelting furnace loading to container shiped by sea;
Machine Type:	aluminum ingot casting machine;	MF frequency:	800HZ;
Machinery Test Report:	Provided;	compostion:	power cabinet and furnace body;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Voltage:	Non-standard;
copper melting point:	1250 Degree;	Port:	qingdao,shanghai ,tianjin;
Dimension(LWH):	Non-standard;	Certification:	ISO CE;
Supply Ability:	2000 Set/Sets per Year;	After Warranty Service:	Video technical support,Online support;
Brand Name:	Hongteng;	Key Selling Points:	High Productivity;
Video outgoing-inspection:	Provided;	name:	aluminum ingot casting machine;
auto tilting:	reducer tilting;	usage:	melting waste steel iron scrap aluminum,copper,lead,,zinc etc.;
furnace shell:	aluminum;	Marketing Type:	New Product 2020;
Warranty:	1 Year;	Package Preview:	;
Place of Origin:	Henan;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Construction works ,Energy & Mining;
Condition:	New;	Power:	Non-standard;
brass melting point:	950 degree;	Local Service Location:	Viet Nam;
Payment Terms:	L/C,D/P,D/A,T/T,cash;	Core Components:	Furnace;
Showroom Location:	Viet Nam,Indonesia,Russia;

We are factory, we can produce 50Kg-20T capacity aluminum melting furnace.

Melting furnace can be used to melt metal: aluminum cans, aluminum powder, aluminium wires, aluminium ingots, aluminum wheels, aluminum alloy door window etc

Product Description

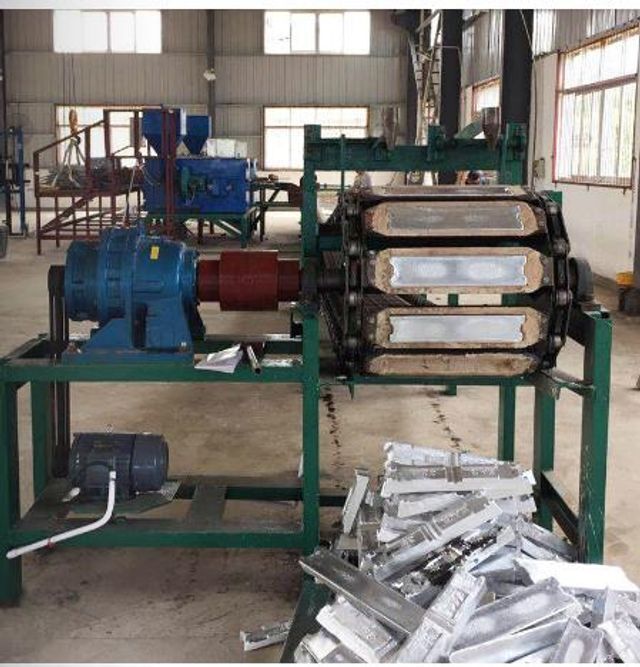

1, This equipment is aluminum ingot casting machine with high production efficiency. It can reach 10 Ton per hour
2, Ingots size: 6-30kg (ingots size can designed by customer)
3, The running speed of the equipment is 0-6 m/min adjustable
5, Aluminum ingots production line total length: 5-24 meters

The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity, the output can be increased 20%-30% by using this equipment
1, Casting machine main structure: U-steel channel welded steel body, conveyor, speed-adjust motor, reducer, big & small chain wheel & chains, power distribution systems
2, The driving motor is AC speed regulating motor with electromagnetic or variable frequency mode.

1, Provide overall solution and after-sales guarantee
2, Provide plant design, proposal, manufacturing, shipping, installation and commissioning services
3, Provide overall equipment layout, aluminum ingots production line process design, electrical circuit layout.
4, Dispatch technicians to provide installation services after the machine arrives until the customer is satisfied
5, Long-term technical support, long-term machine warranty

Technical Parameter of induction melting furnace
Model	MF power	Input voltage	MF Voltage	Frequency
0.1T	80kw	3ph,380V	750V	2500HZ
0.25T	180kw	3ph,380V	750V	2000HZ
0.35T	200kw	3ph,380V	750V	1500HZ
0.5T	400kw	3ph,380V	1500V	1500HZ
0.75T	600kw	3ph,380V	1500V	1000HZ
1T	700kw	3ph,660V	2400V	800HZ
1.5T	800kw	3ph,660V	2500V	600HZ
2T	1000kw	3ph,660V	2500V	600HZ
