Manufacture Sells DW89NC hydraulic semiautomatic mandrel pipe bending machine

Supplier: Zhangjiagang Baorui Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jenny Yang
Price: $10500.00 / 1 - 1 pieces
$10300.00 / >=2 pieces
Min. Order: 1 piece

Click here to contact

Product details

Weight (KG):	1500;	Marketing Type:	New Product 2020;
Showroom Location:	South Korea,Colombia,Algeria,Uzbekistan,Egypt,Brazil,Indonesia,India;	Local Service Location:	Malaysia,Australia,Bangladesh,South Africa,Kazakhstan,Uzbekistan,Egypt,Pakistan,India,Russia,Thailand;
bending material:	stainless steel, steel, Iron, Aluminum, copper etc;	Brand Name:	Baorui;
Bending Precision (Deg):	±0.1;	Bending Radius (mm):	10 - 89;
Condition:	New;	bending control:	NC control;
Material / Metal Processed:	ALLOY,Brass / Copper,Carbon Steel,stainless steel,Aluminum,stainless steel,iron,copper,aluminum and so on;	Raw Material:	PIPE;
Port:	shanghai;	Machinery Test Report:	Provided;
Place of Origin:	Jiangsu China;	Payment Terms:	L/C,Western Union,T/T;
Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Restaurant,Retail,Construction works ,Advertising Company;	Supply Ability:	8 Piece/Pieces per Month;
Warranty:	1 Year;	Certification:	CE;
Max. Bending Angle (Deg):	190;	Core Components:	Bearing,Motor,Gear,PLC;
Name:	pipe bending machine;	Year:	2020;
Machine Type:	Pipe and Tube Bending Machine;	Extra Services:	End Forming;
Key Selling Points:	High Productivity;	Package Preview:	;
After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	bending type:	semi automatic;
Video outgoing-inspection:	Provided;	max bending capacity:	89 X 8mm;
bending drive:	hydraulic;	After Warranty Service:	Video technical support,No service,Online support,Spare parts,Field maintenance and repair service;
Packaging Detail:	the pipe bending machine packed in wooden case;	Power (kW):	7.5;
Warranty of core components:	1.5 years;	Automation:	Automatic;

Product Overview

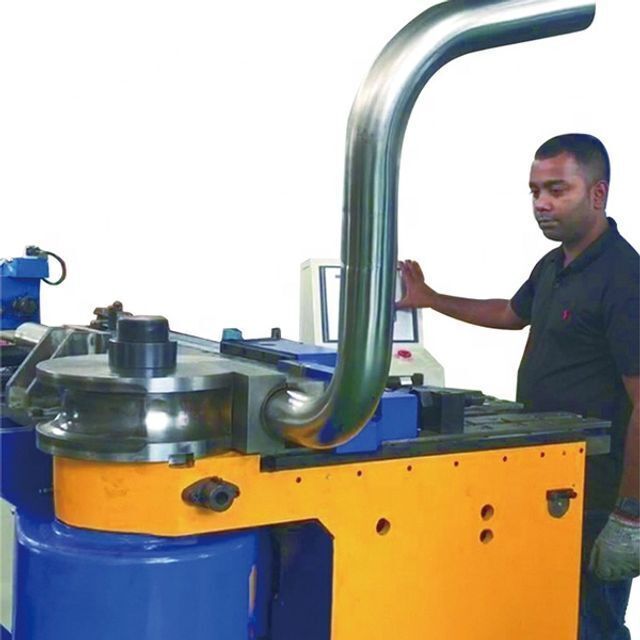

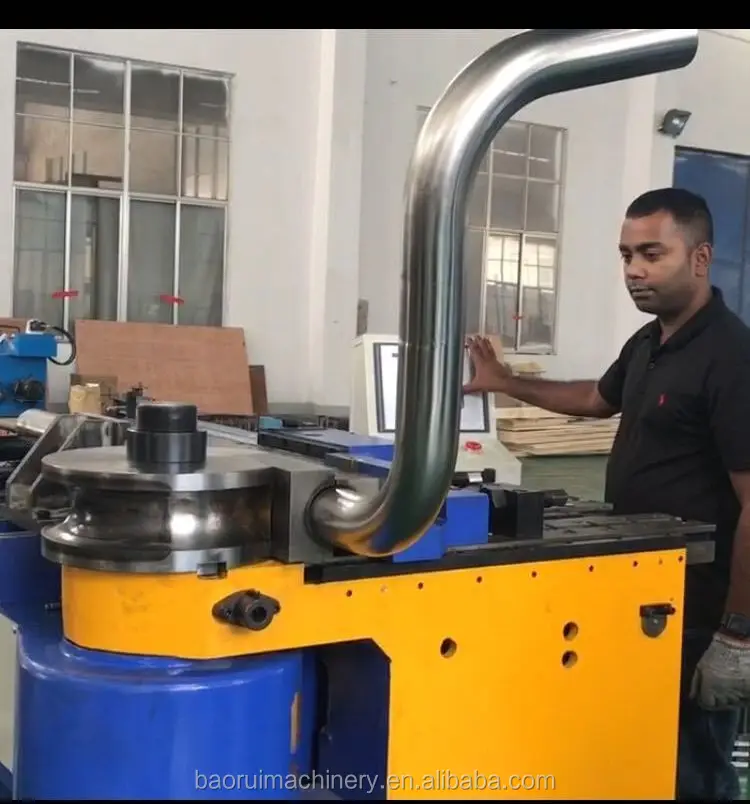

DW89NC pipe bending machine

DW89NC semi automatic hydraulic semi automatic pipe bending machine, easy operation, high performance, widely used in all kinds of metal pipe process

FEATURES AT A GLANCE

semi automatic

easy operation

high performance

widely used

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Item	Name	Unit	Data	Remark
1	Max bending capacity	○	Φ89 ×8mm
					□	60 X 60 X 8mm
						100 X 50 X 8mm
					●	60mm
3	Max bending radius	mm	R450mm
4	Min bending radius	mm	1D
5	Max mandrel length	mm	3500 mm
6	Max bending degree	Degree	190
7	Bending Speed		10°/s
8	Bending accuracy	degree	± 0.2
9	Control system	NC control
10	Max bending unit on the same pipe	unit	16
11	Max storage sections	unit	16 x 16
12	Main Motor Power	Kw	11
13	Oil tank	L	260
14	System hydraulic pressure	Mpa	14
15	Machine Size	mm	5000 x 1300 x 1200
16	Machine Weight	KGS	4500
