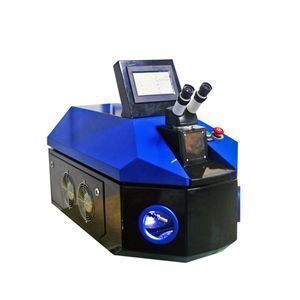

mini portable Jewelry laser spot welder/ welding machine price for sale with 10x microscope

Product details
Warranty:1 Year;Payment Terms:L/C,D/A,D/P,T/T,MoneyGram;
Product name:Jewelry Laser Welding Machine;Usage:Welding;
Supply Ability:200 Set/Sets per Month;Cooling System:Water Cooling;
Application:Jewelry Welding Products;After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Color:Blue&Black/ Red&Black/ white;Brand Name:OPT-GY1-200;
Dimensions:1050*580*1200 MM;Wavelength:1064nm;
Max. Output Power:200w;Port:Shenzhen;
Power Supply:220v/50Hz;Focal Spot Diameter:0.1-3mm;
Packaging Detail:Packing size: 1050*580*1200mm Gross weight: 100KG International standard wooden case.;Pulse Frequency:1-50Hz Continuous Adjustable;
Laser type:Nd:YAG;Place of Origin:Guangdong, China (Mainland);
Keywords:jewelry making machine;Welding depth:0.1~3mm;
Condition:New;Pulse Width:0.1-20ms;
Certification:CE,ISO,GS,SGS,UL,CCC,FDA;Single Pulse Energy:100J;
Laser wavelength:1064nm Laser Soldering;
Product Description

mini portable Jewelry laser spot welder/ welding machine price for sale with 10x microscope

Maximum average power
200W
Laser wavelength
1064nm
Max Pulse energy
100J
Power
200 watt
Batter, laser welding frequency
1~50Hz
Aim operation
Round point cursor
Cooling system
Built-in
Adjustable range of spot size
0.1~3mm
Control system
Industrial computer
Machine Power consumption
≤6kw
Lifetime
3,000,000 times
Humidity
5% to 75%non-condensing.
Power supply
220V±0%/50Hz/15A
Supplies
Xenon lamp, filter, protection lens, argon gas
Environment
clean, no dust or less dust
Machine dimension
95*55*65cm



 Machine Features


1. Easy to operate, reliable performance and widely applied for industry.
2. Compact structure and nice shape with high output power, stable energy, good beam mode.
3. High quality gold plated cavity, lifespan 8-10 years.
4. High efficiency, high welding speed. It can realize the automatic production assembly line.

Machine application


Applicable to the kettle, vacuum cups, stainless steel bowl, sensor, relay, tungsten wire, high power diode ,aluminum alloy, laptop case, cell phone batteries, mold, electrical accessories, filter, nozzle, stainless steel products, golf head, gold, silver and all zinc alloy products etc...


Widely applicable to all kinds of micro parts of precision welding, such as: Jewelry, electronics, watches, military.

Characteristics


I. Energy, pulse width, frequency and faculae can be adjusted within a wide range to achieve different welding effects.
II. The parameters are adjusted by the control rod in the sealed cavity, simple and efficient .
III. Ceramic focusing cavity imported from the U.K. is employed, corrosion resistant, high temperature resistant, efficient in optical/electrical conversion.
IV. The focusing cavity's service lifespan is 8 to 10 years, and the service lifespan of the Xenon lamp is over 8 million times.
V. World-leading automatic light shielding system is employed to remove stimulation of light on eyes during operation.
VI. 24-hour continuous operation, with stable operating performance and maintenance-free within 10,000 hours. Personalized design in compliance with ergonomics principles.

Detailed Images

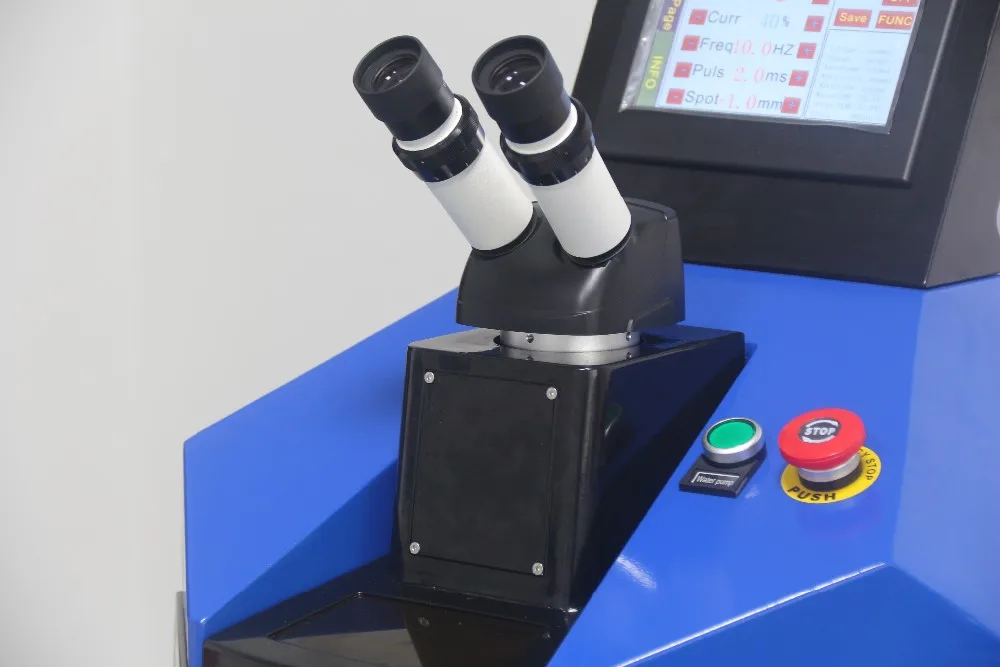

Microscope

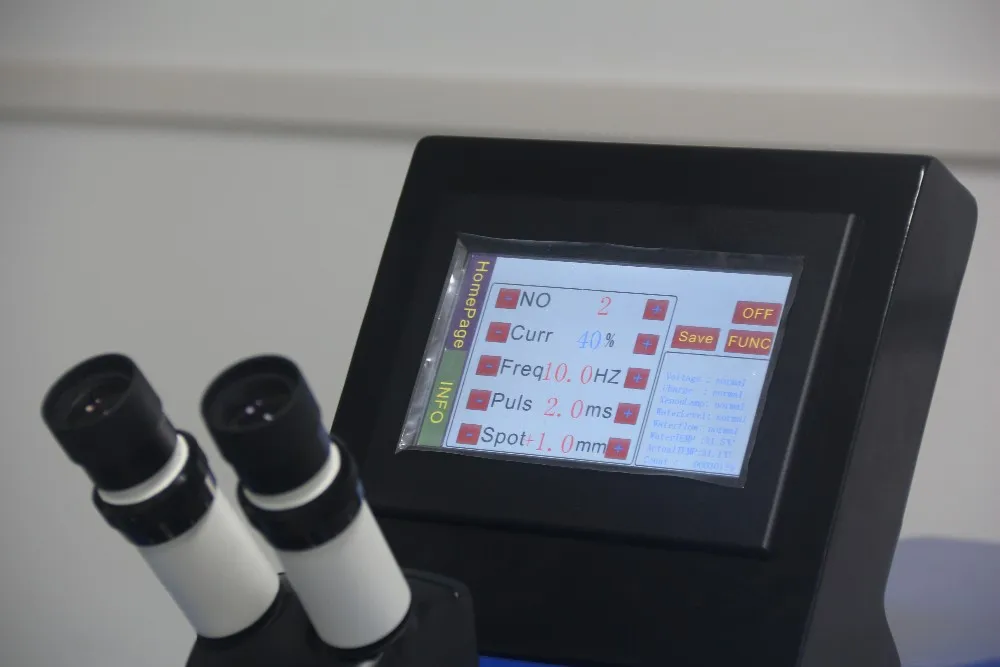

Display screen

Emergency button

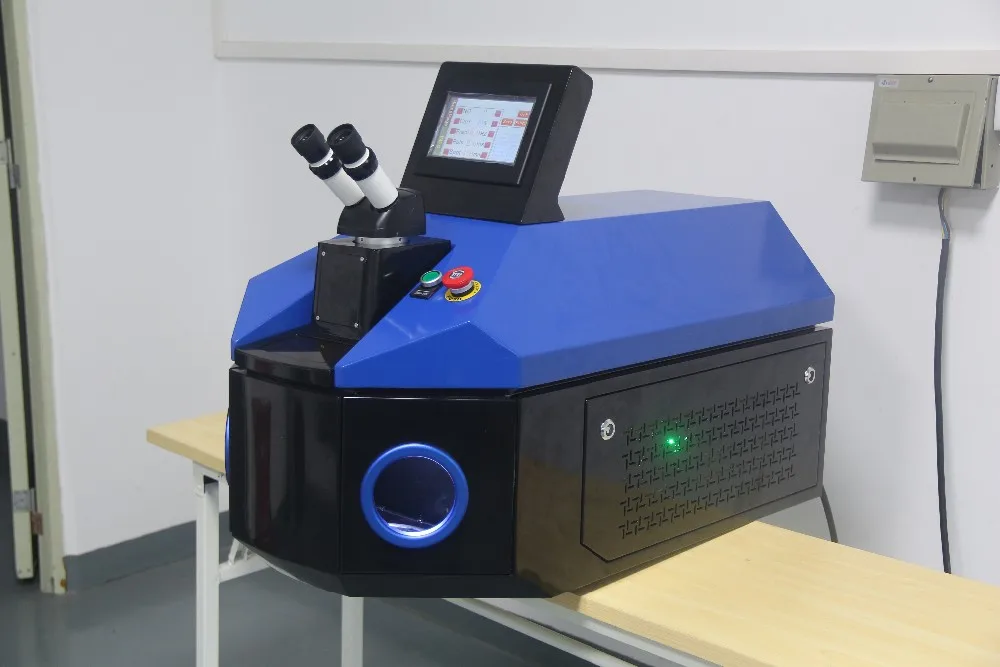

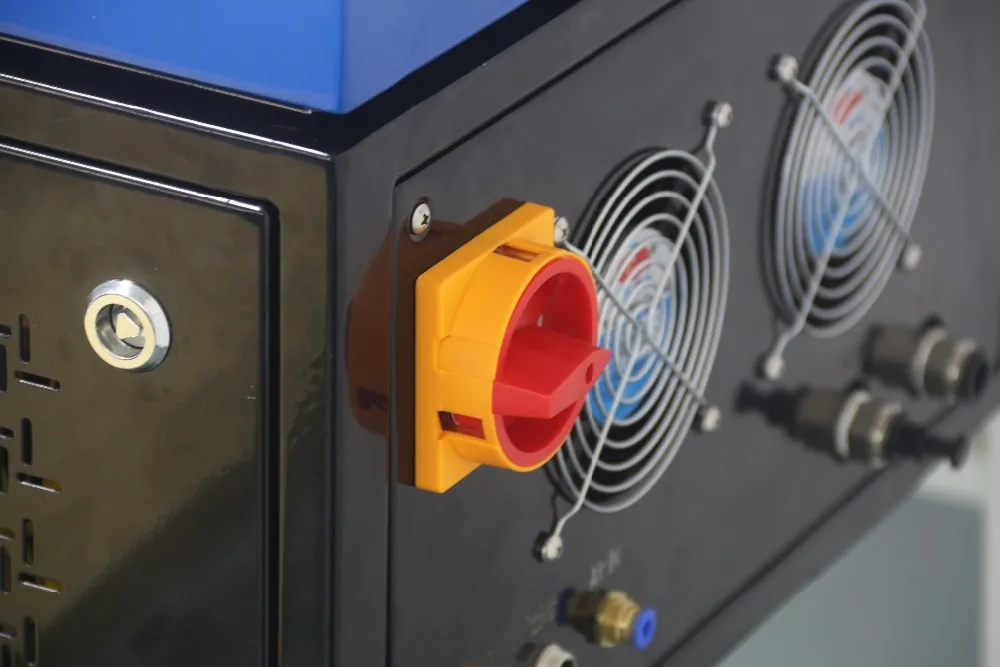

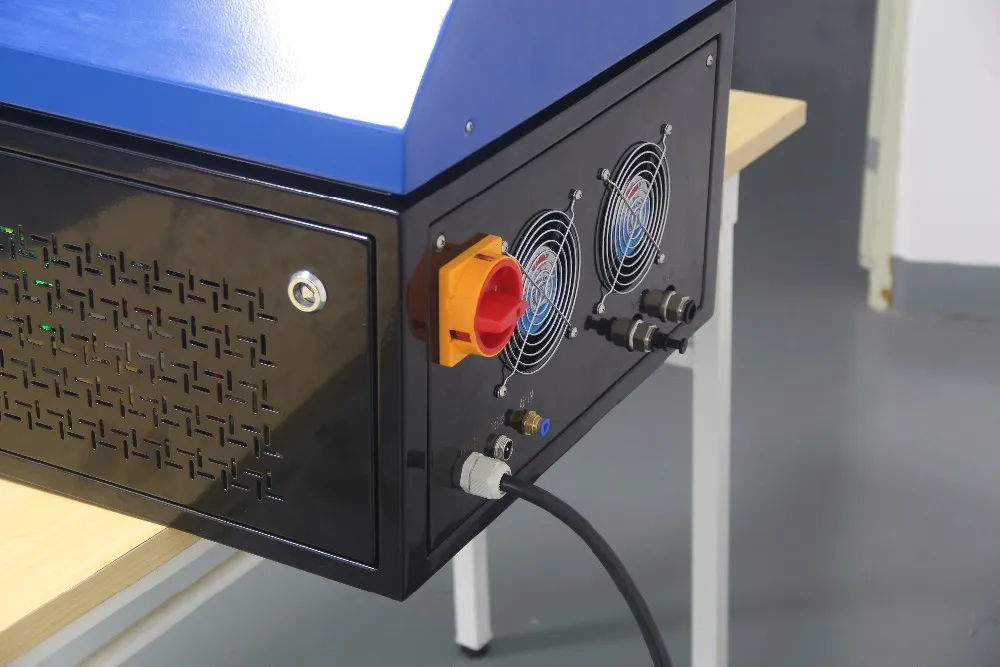

Right side of machine

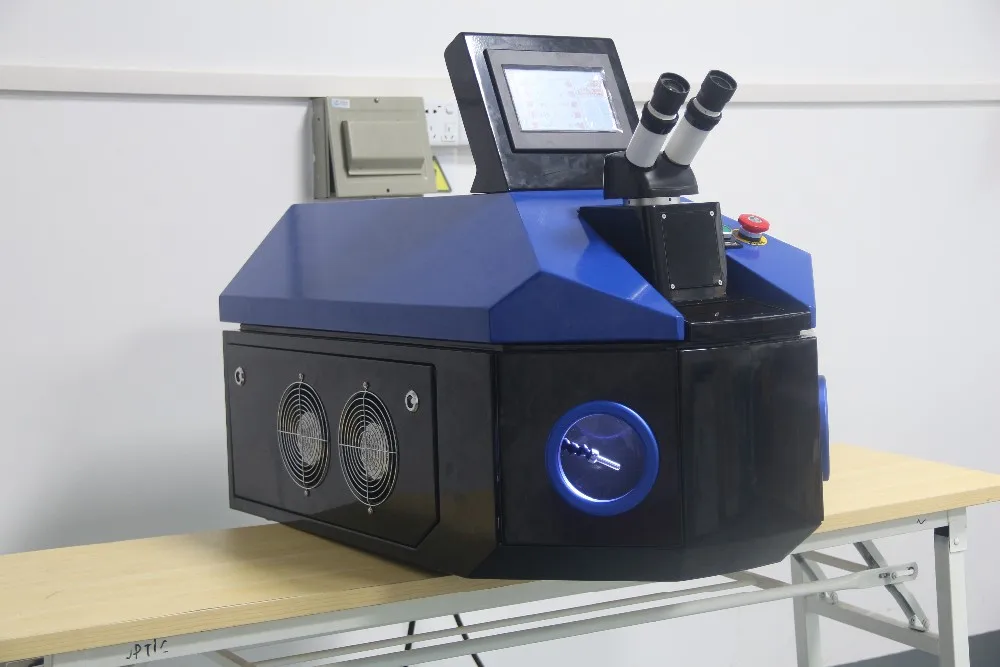

left side of machine



laser power supply

Brand:OPTIC

Origin: China

power: 3kw/6kw
Do real 80J pulse energy, 5.5KW rated power, single floor model suitable with desktop size.
Stable, powerful, and smart.

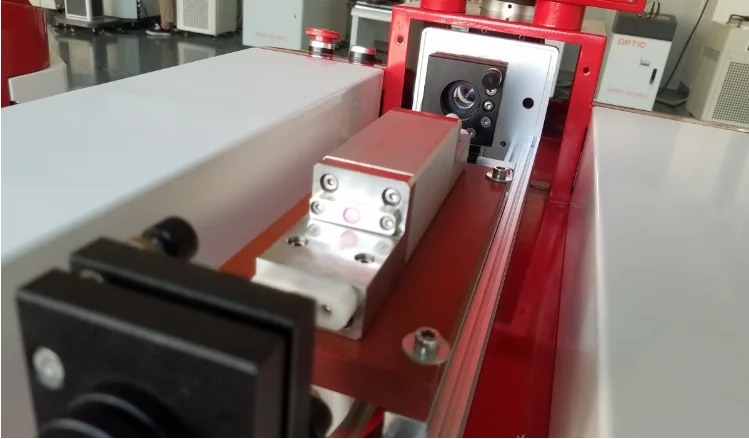

   Ceramic cavity
   Brand: OPTIC
  Origin: China
  Use ceramic core with YAG crystal     (6*130mm) and xenon lamp,make sure   1064nm laser beam shooting out with           continuous and stable power
Xenon lamp: Dayu
Origin: China
Xenon lamp is the the power source of laser,when xenon lamp finished,just need to change a new one and your welder can get back to work.
Dayu xenon lamp is the best quality in China,special for jewelry laser welder
Lifetime: 3,000,000 times
YAG Crystal
1.High gain,High efficiency and HIgh optical quality
2.Low threshold,Low loss at 1.06um
3.Good thermal conductivity and thermal shock characteristics
4.Mechanical strength
5.Material characteristics allow for various modes of operation (CW,pulsed,Q-switched,mode locked and cavity dumped
6.High optical quality


10X Microscope and Touch Panel
Microscope can enlarge 10 times of your welding object,easy to weld.
Touch panel use a 7-inch LED screen with English language




CCD camera

Brand: OPTIC
Original: China
10X scope with 720P resolution screen, and cross hair can help you easy to find the focus.

Water Chiller

Function: for xenon lamp cooling
Fans are for water cooling

Note: please use 3L distilled water for water chiller. Distilled water has no minerals and impurity while purified water and tap water have impurity that would affect cooling system. The worst effect is burn out xenon lamp.



10X Microscope Working Results

Related Products

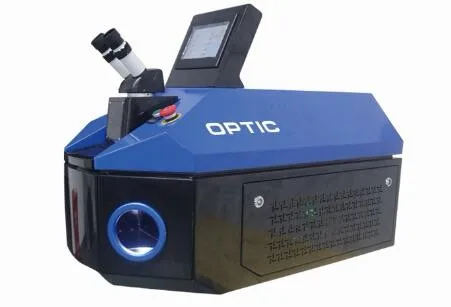

latest design mini type blue & black color

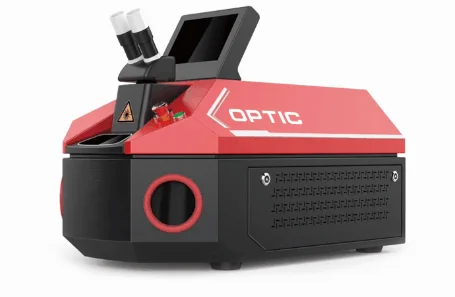

latest design mini type red & black color

       classical design mini type white color

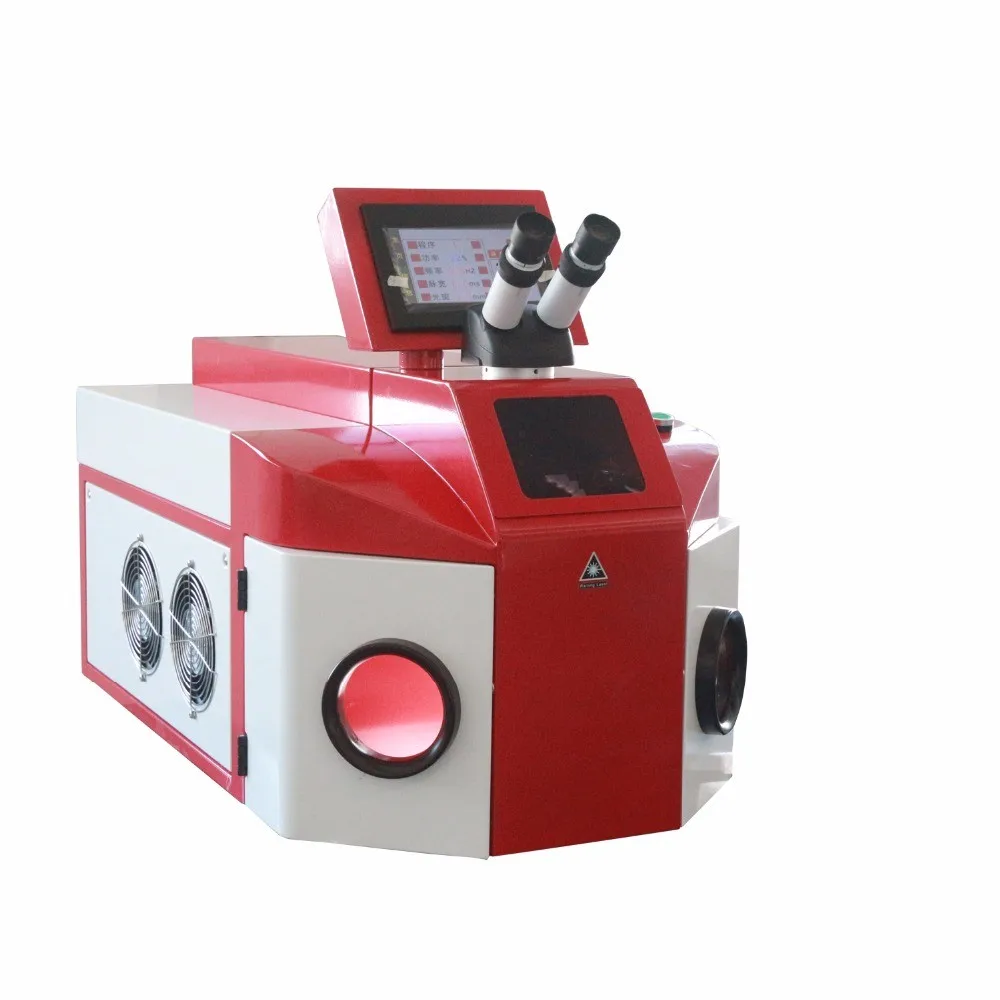

  classical design mini type red color
