NEW Type Smallest Single Phase Modbus Energy Meter With RS485/100A

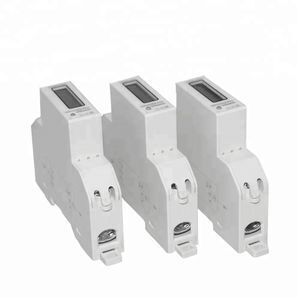

Model YEM015SD single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique and imported large scale integrate circuit, and uses advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size. The meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Functions

1. 35mm standard DIN rail installation, complying with standard DIN EN50022.

2. Single pole width (Modulus 17.5mm), complying with standard DIN43880.

3. Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May

select7+1 digits display (999999.1kWh) without backlight source general LCD, (product Configuration

code is SE).

4. Standard configuration pulse output passive (polarity),May select distant pulse output passive

( nonpolarity). And contact with all kind of AMR system conveniently,complying with standard

IEC 62053-31 and DIN 43864.

5. Bicolor LED instructions power supply state (green) and signal of energy impulse (red).

6. Automatic detection the direction of the flow of load current. And Instructions on LED (when display

HELP 1 on LCD, that is meaning the direction of the flow of load current reverse).

7. Single direction measurement single phase two wire active energy consumption. It is nothing with

direction of the flow of load current. Complying with standard IEC 62053-21.

8. Directly connect operation, there are two types wiring you may select. Standard configuration

type S wiring, may select type U wiring (Product Configuration code is UD).

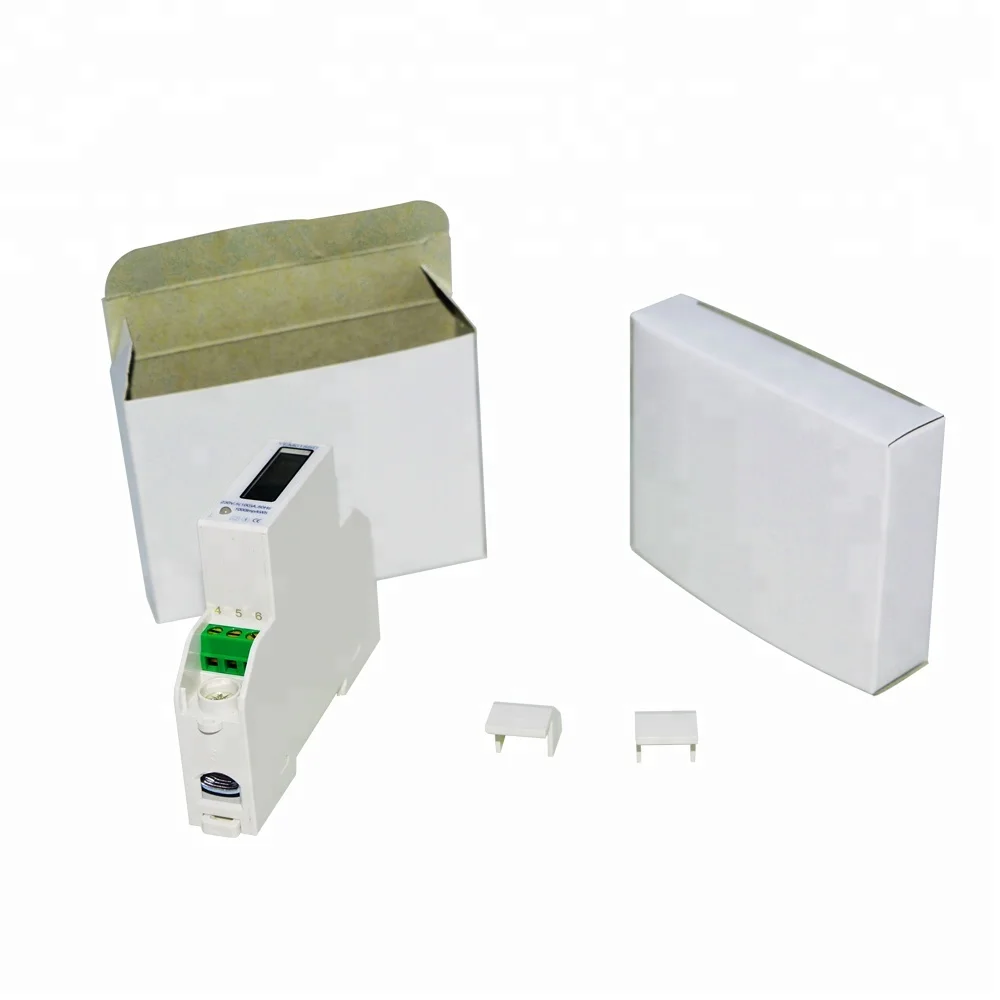

9. Extension terminals cover,in order to protect to use safety.

Technical parameters

Model

Accuracy

Reference

Voltage (V)

Current

specifications(A)

Starting

current(A)

Insulation

performance

YEM015SD

Class 1

127

230

5(100)

0.02

AC voltage 4kv for 1 mimute,

1.2/50us waveform impulse voltage 6kv.

Dimension

Wiring Diagram

				Terminal	Note
				1	Inlet phase line
				4	Inlet neutral line
				3	Outgoing phase line
				6	Outgoing neutral line(Inlet from top, outlet from bottom)
				20 and21	Port of pulse output passive
