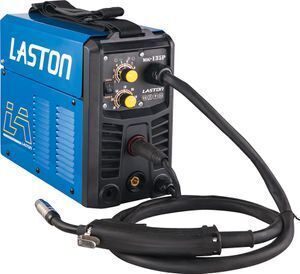

MIG Welding Machine

  • 74.00 piece
Min. Order: 1 piece FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Condition:New;Supply Ability:10000 Piece/Pieces per Month;
Pilot Arc Current:135;Arc Current:135;
Pulse Frequency:50HZ;Brand Name:OEM;
Port:NINGBO;Packaging Detail:My company has ordinary carton and color box for customers to choose, can according to the requirements of customers design the carton design, also can print your company's brand or customer requirements of the relevant text;
Place of Origin:Zhejiang China (Mainland);Rated Duty Cycle:40%;
Payment Terms:L/C,T/T,Western Union;Usage:Welding;
Voltage:AC220V±15%;Dimensions:480*220*340;
Certification:CE Certification;Color:Customized Color;
After-sales Service Provided:Engineers available to service machinery overseas;Power(W):4.79KVA;
Warranty:One Year;Motor Type:DC MOTOR;
Delivery Detail:a month after confirmation;
Product Description

MIG Welding Machine


Featuer


*IGBT inverter technology,energy saving.

*PWM pulse width control,technology,special performance,accurate current

control,stable arc passing.

*Slow wire feeding,arc end with small balls clean,electronic and inductance

regulating,shielding gas post flow functions:

well spatter control,good depth of fusion ,good welding effect.

*Over current,over heat,over load,over voltage protection.Special apperance wire

feeder integrated,portable.

*Suitable for welding mild steel,low alloy steel metal,low alloy steel metal sheet .


Detaile Information


ITEM
MIG-100
MIG-135
Power voltage (V)
AC220V 50HZ
AC220V 50HZ
Rated input capacity(KVA)
3.25
4.79
Rated input current(A)
19
20.75
Actual output current(A)
100
135
No-load voltage|(V)
55
55
Duty cycle (%)
60
60
Efficiency(%)
80
80
Power factor
0.73
0.73
Insulation class
F
F
Protect class
IP21S
IP21S
Usable wire(mm)
0.6-0.8
0.6-0.8
Dimension(mm)
480*220*340
480*220*340
Weight(kg)
10.75
10.95

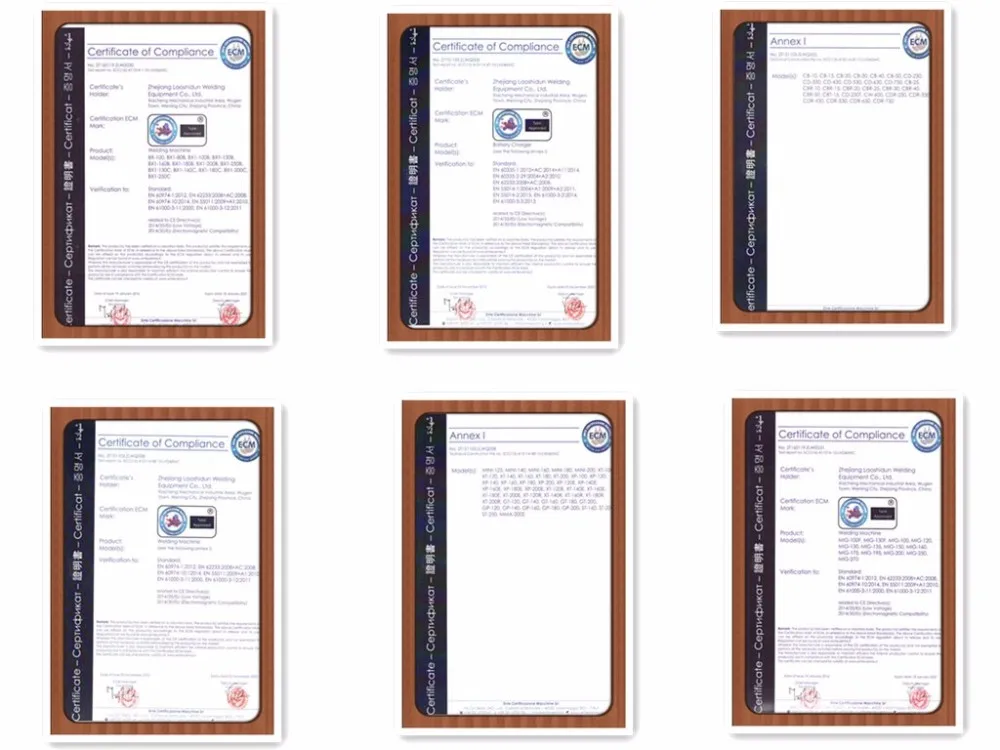

Certifications

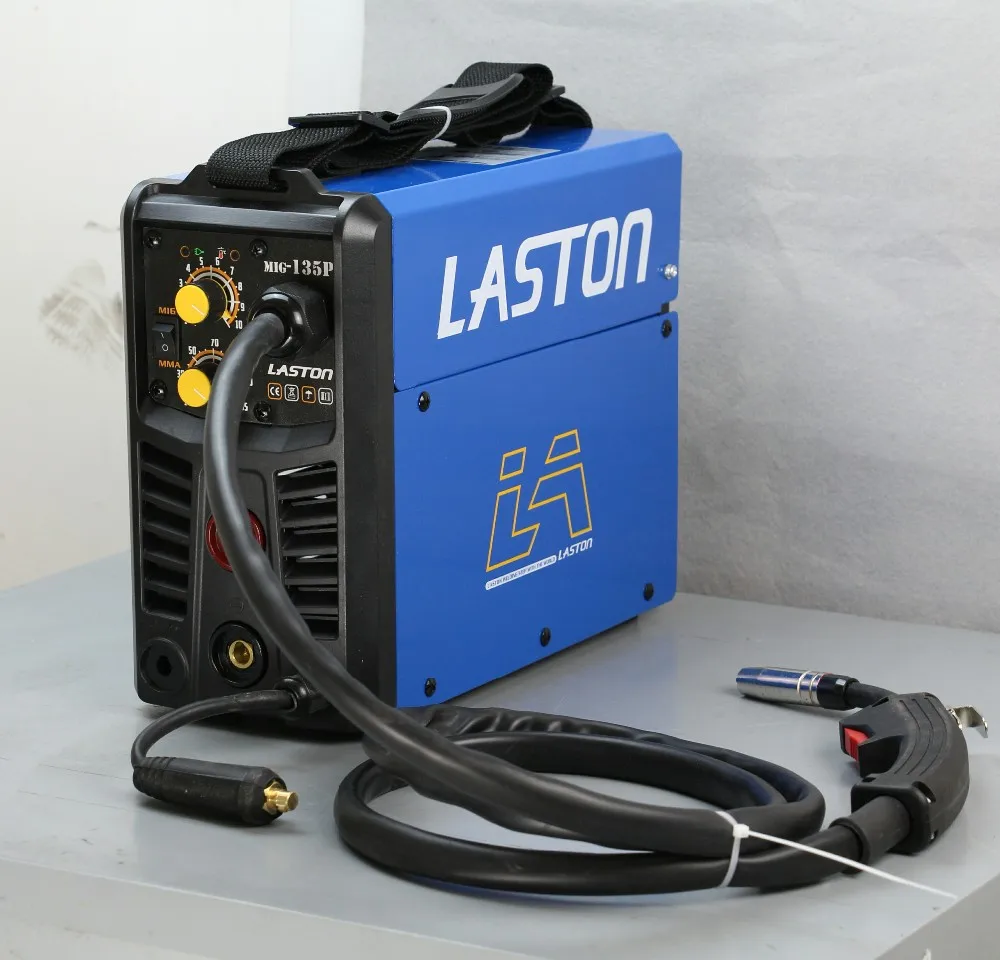

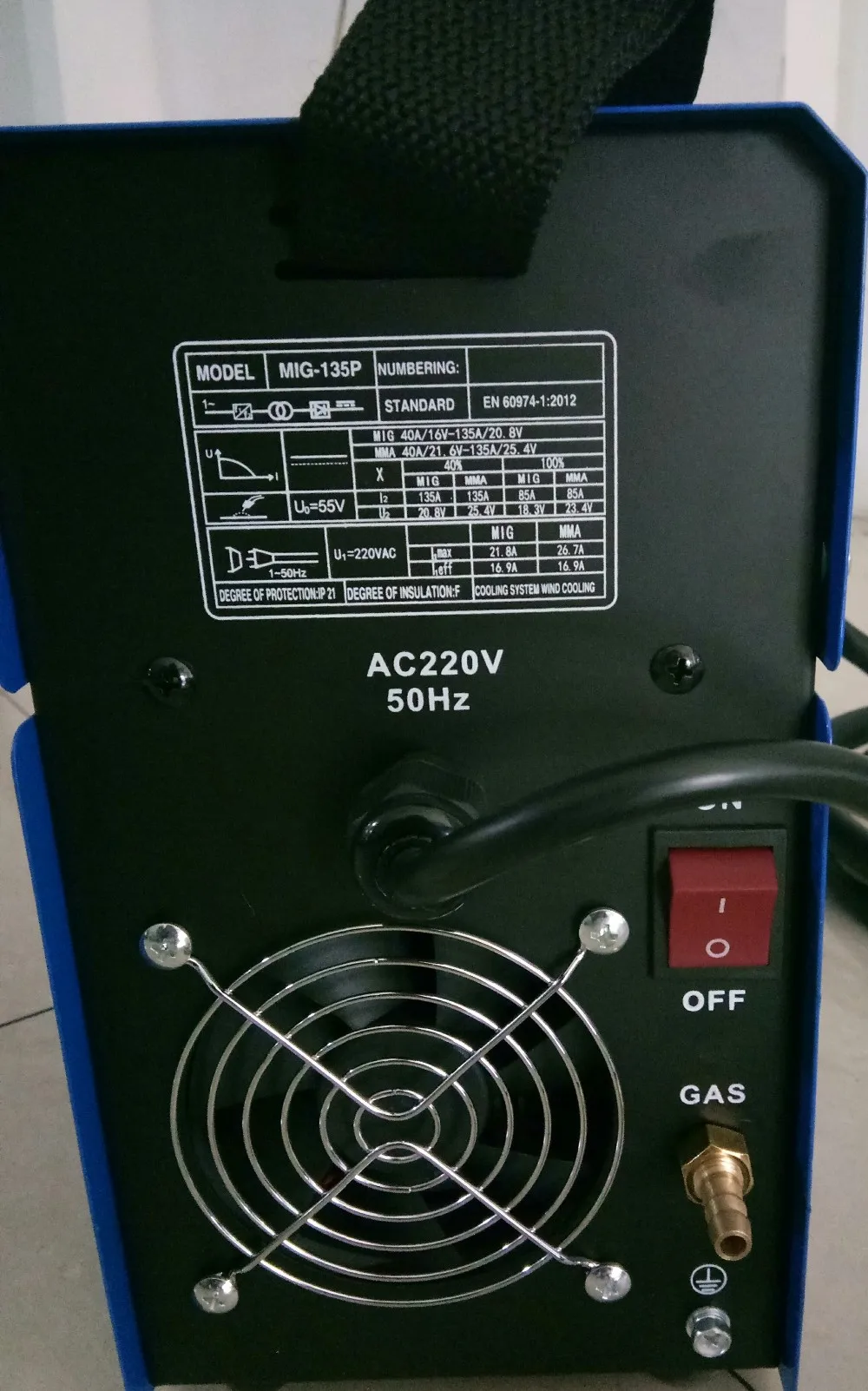

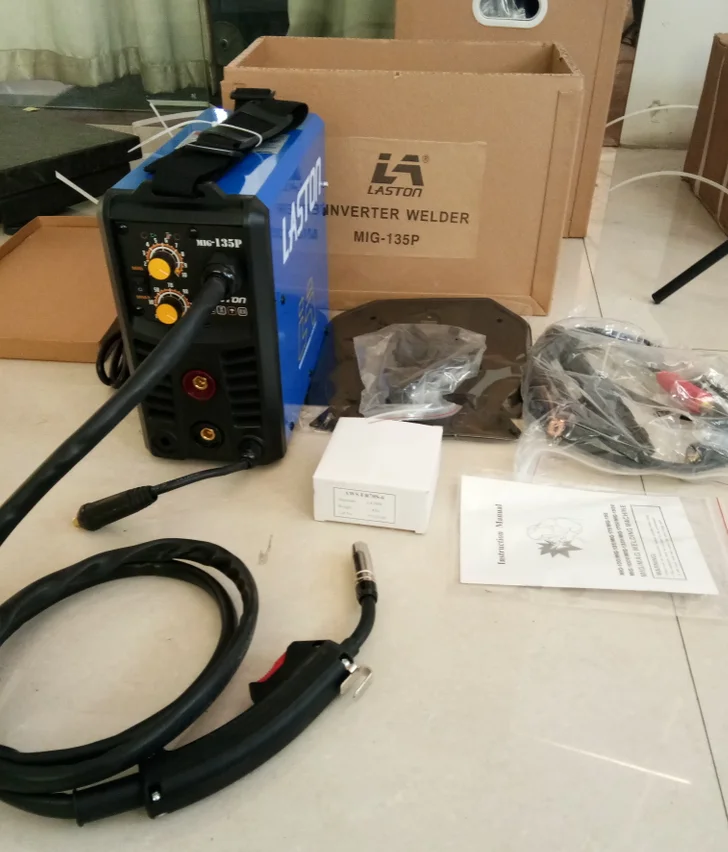

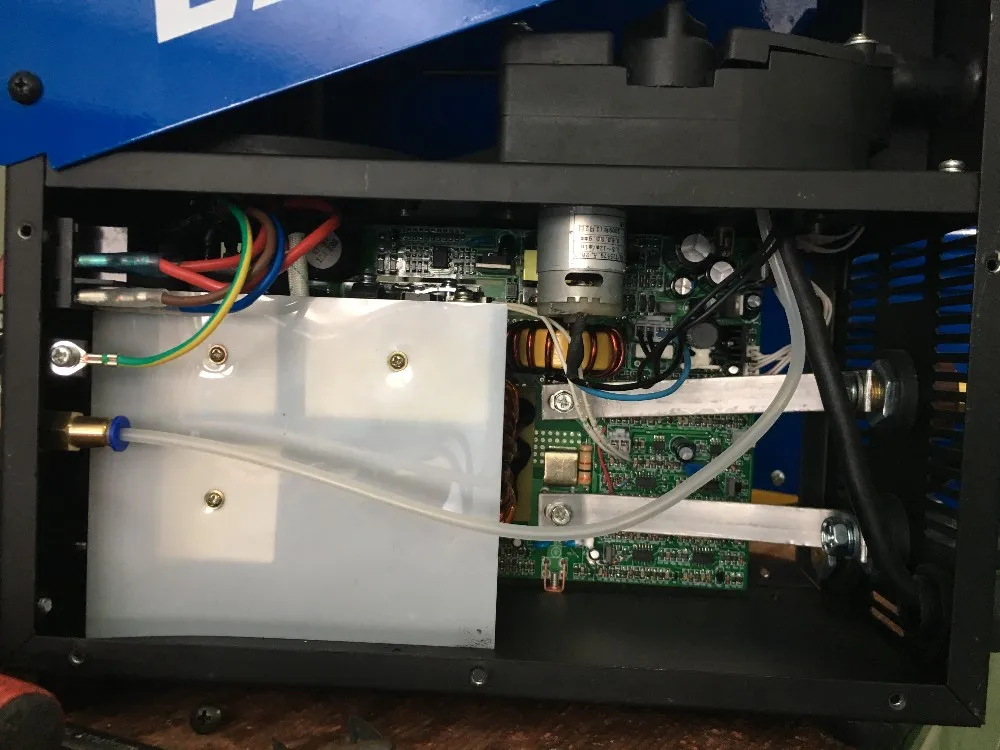

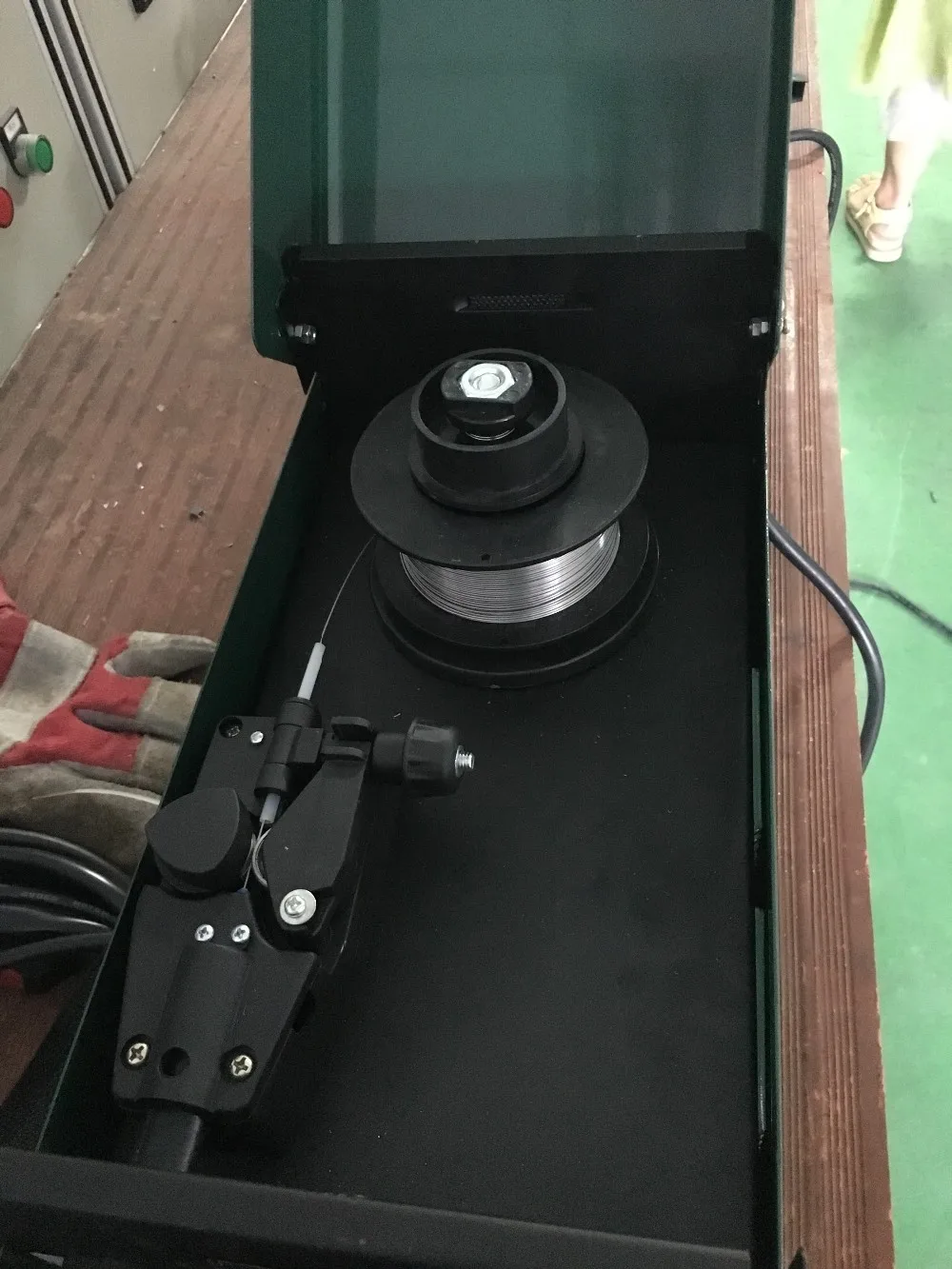

Detailed Images
Packing & Delivery

My company has ordinary carton and color box for customers to choose, can according to the requirements of customers design the carton design, also can print your company's brand or customer requirements of the relevant text

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

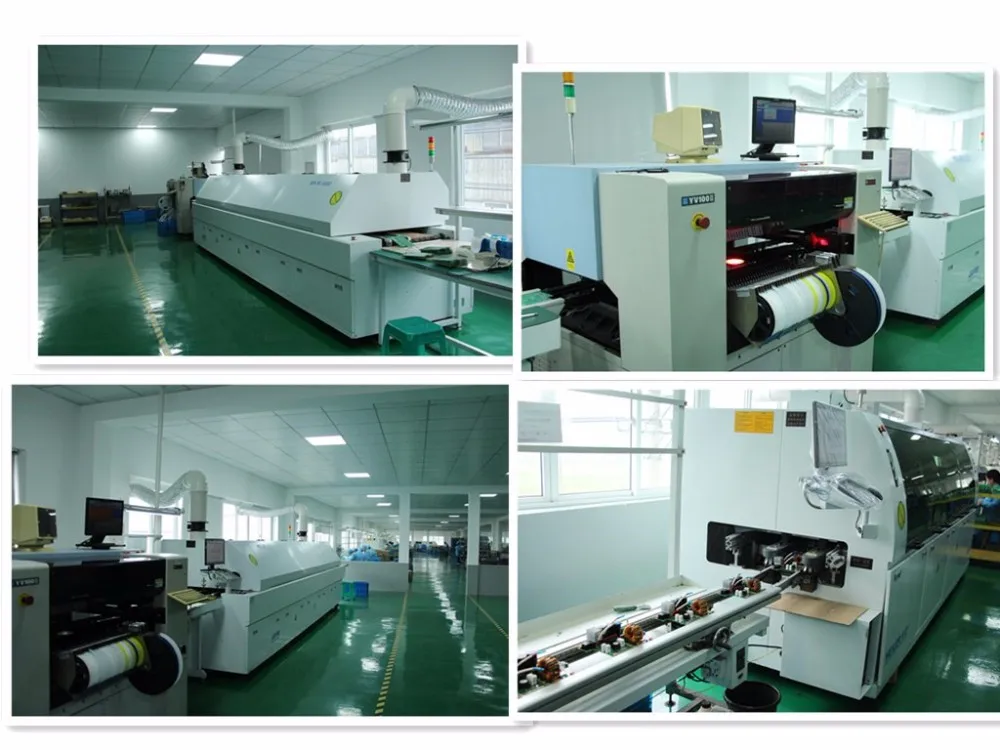

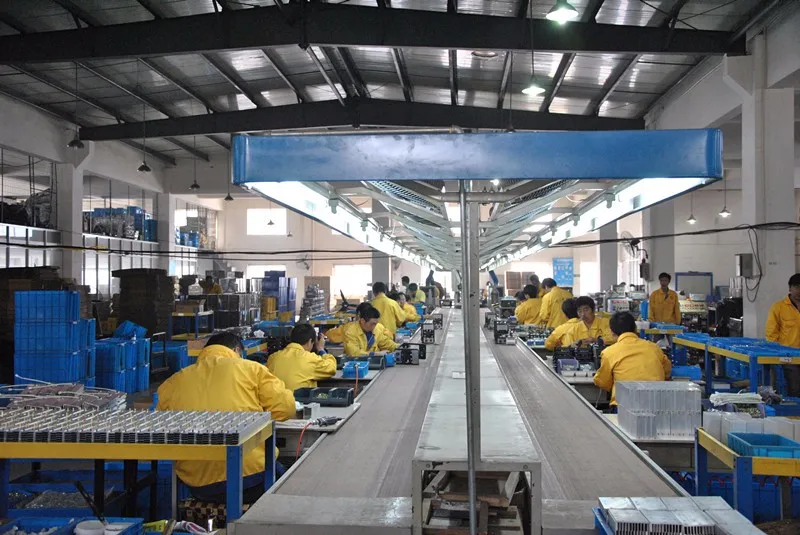

Our Company
