Pulverized coal burner for rotary dryer

Product details
Model Number:MFR series;Port:Qingdao, Shanghai, Tianjin;
Control system:PLC touch screen control system;Delivery Detail:10-15 working days;
Warranty:1 Year;Product name:Pulverized coal burner for rotary dryer;
Condition:New;Raw material:Coal powder;
Voltage:220V/380V-50HZ;Flame diamater:1.1M;
Weight:6000KG;Feed coal size:≤25mm;
Combustion chamber:automatic rotation;Packaging Detail:Pulverized coal burner for rotary dryer need:standard packing, container, wooden box packaging;
Color:Customer Requirement;Certification:ISO, CE, EAC, EMC;
Type:Pulverized coal burner for rotary dryer;Supply Ability:20 Set/Sets per Month;
Brand Name:ZOOMLINE;Flame length:1.6-2.7M;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Control type:Full automatic;
After-sales Service Provided:Engineers available to service machinery overseas;Place of Origin:Henan China;

Pulverized coal burner for rotary dryer

Product Description

Scope: ZOOMLINE company develops and manufactures the new type pulverized coal burner, which has a broad scope of application. This pulverized coal burner is easy and convenient to match with other equipment; this equipment not only can match with asphalt mixing plant perfectly, but also can be applied for slime drying machine, rotary kiln, calcining klin and etc.

MFR series pulverized coal burner working principle:
The coal that diameter less than 20 mm is crushed by coal power crusher firstly, then the coal power is transported to main burning chamber by flexible pipe, and then ignited by oil gun. Meanwhile, the blowing fan provide wind to main burning chamber through circular rotary wind pathway in back coverer, wind go forward along inner wall in chamber, the high temperature airflow mix coal powder and then burn strongly, the high temperature flame sprays from the fire outlet and come into drying drum to heat the cold aggregate.

Main Features of MFR series coal dust burner
1. Adopts new structure, change the traditional burner mechanism, exclusively using of rotary combustion burners to solve the problems of traditional burners which are easy slag-bonding and incomplete burning and etc.
2. High flame temperature, energy saving and completely burning.
3. Adopts the exclusive ingredients of firebrick of high performance, prolong service life.
4. Continuous production, has no need to scarfing cinder everyday.
5. Lower production cost, is only the 1/3 of oil burner.
6. With high automaticity, convenient to control aggregate temperature, discharging aggregate through dry mixing drum.
7. Port temperature measuring equipment return signal to the frequency changer of coal machine , change the aggregate temperature through frequency changer automatically control the volume of coal.
8. Ignite is simple and easy, auto and manual ignition is optional. Ignition oil gun nozzle with special structure, atomization effect, kerosene combustion.

MFR120 pulverized coal burner matching with Slime drying machine



Technical parameters of pulverized coal burner

ModelCoal Consumption(kg/h)Power(kw)Coal PulverizerAsphalt Temperature(℃)Plant Capacity(tph)
MFR2030016.95MFJ20130-18015-30
MFR4045031.25MFJ40130-18025-50
MFR80100041.25MFJ80130-18070-85
MFR120150073.75MFJ120130-180100-125
MFR160200080.25MFJ80+MFJ80130-180140-170
MFR2002500105.25MFJ120+MFJ80130-180160-220
MFR2402860138.45MFJ120+MFJ120130-180200-250
MFR3203660194.95MFJ120+MFJ120+MFJ120130-180280-340
MFR4004500254.95MFJ150+MFJ150+MFJ150130-180360-400
Detailed Images

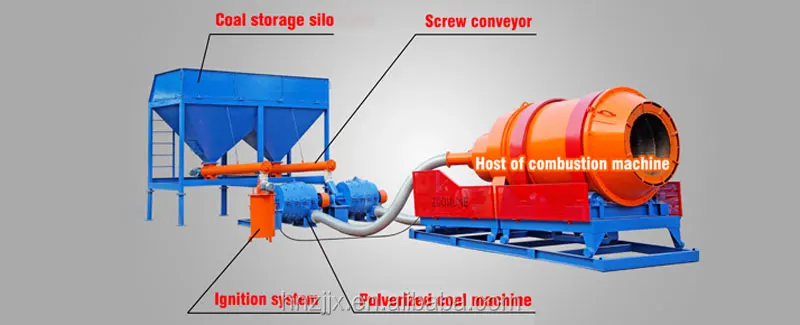

ZOOMLINE MFR series pulverized coal burner is mainly composed of pulverized coal machine, host of combustion machine(including combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system) control system,ignition syetem, the crater and others.

Coal pulverizer

1. Variety of models and specifications to choose such as FMJ20, FMJ40, FMJ80, FMJ120, FMJ150 etc.

2. The broken hammer is made by NM500 high wear-resisting material.

3. The coal screw is controlled by frequency converter for coal supply.

4. The first-class accessories(motor, reducer, bearing etc). User can specify a brand.

5. The shell manufactured by super thick high strength steel plate, which avoid the body vibration effectively.

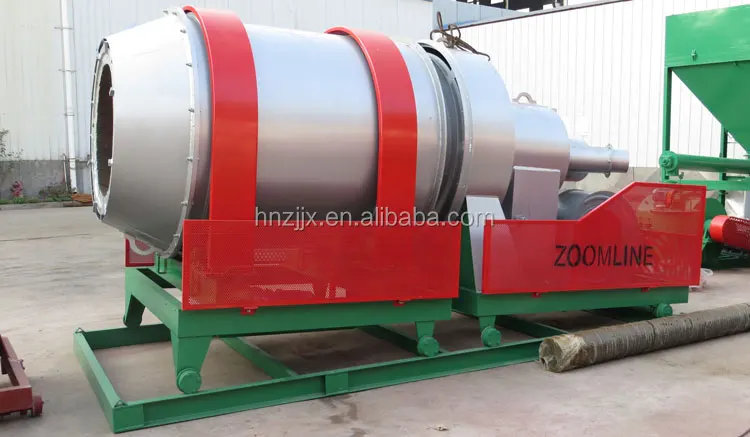

Host of combustion machine

It is composed of combustion chamber, automatic back and forth motion system, automatic rotation system, the combustion air supply system.

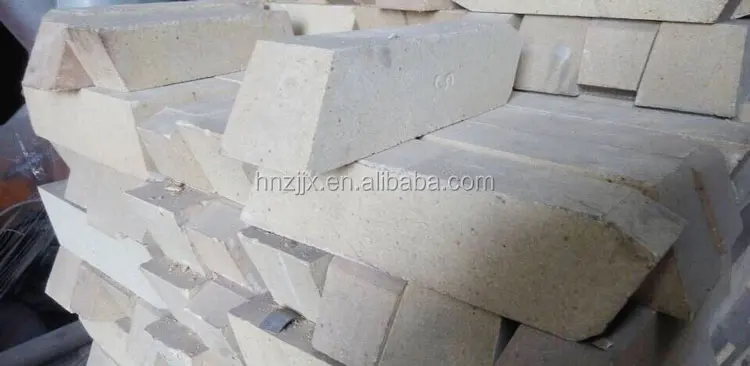

Firebrick
1)Customize the high quality firebrick, with temperature resistance, abrasion resistance and longer service life.
2)Standard size design, more convenient to use and replace accessories.

ItemAL2O3refractorinesscold compressive strength0.2Mpa RULapparent porosityreheating linear-change 1500°Cx2H
Parameter≥801790°C53.91520°C≤23%(0.1-0.4)%

Automatic ignition device

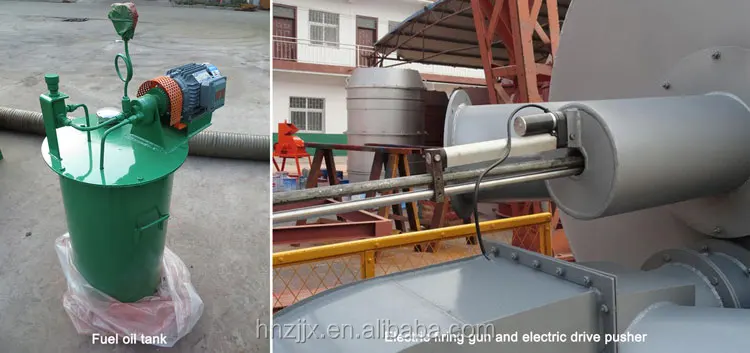

The traditional coal burner with manual ignition which is unsafe. After many years of technical research and development and trial and error, Zhengzhou SINOSUN Machinery Co., Ltd. successfully developed automatic diesel ignition device in 2013. The device includes the following parts:

1. Electric firing gun: Using electronic automatic ignition, safe in operation and easy to use.

2. Electric drive pusher: It’s for control the firing gun’s automatic forward or backward. After completion of the ignition, firing gun can be out of the combustion chamber automatically by the electric putter, which effectively protect the firing gun and prolong its service life.

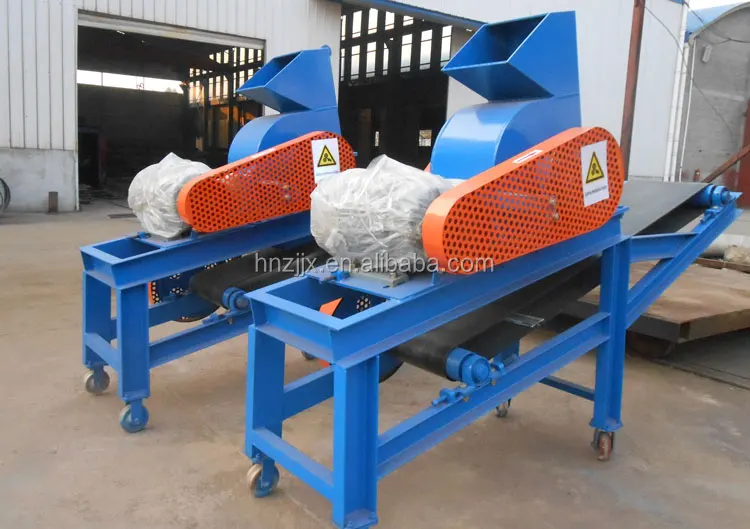

Coal smashing machine(super specifications lump coal broken to below 25 mm)

1.The smashing machine using 10mm steel plate, the heavy-weight make it work more stable.

2.The material of broken blade is NM500 (Please see the table).

Main chemical compositions

C

Si

Mn

P

S

Cr

Mo

Ni

Content

≤0.38

≤0.7

≤1.7

≤0.02

≤0.01

≤1.2

≤0.65

≤1

MFR series coal burner specific requirements for coal

Item
Parameter
Remark
Feeding size
≤25mm
Compared to the previous request of ≤5mm,it’s great improved and applicable.
Net calorific value
≥5000Kcal
Many low combustion value of inferior coal has been fully used.
Volatile
≥25%

Sulphur content
≤2%
Rotary combustion chamber solve the slag problem.
Inherent moisture
≤10%
Powerful Pulverized coal blower
Ash content
≤15%
High energy ignition device ensure ignition success rate

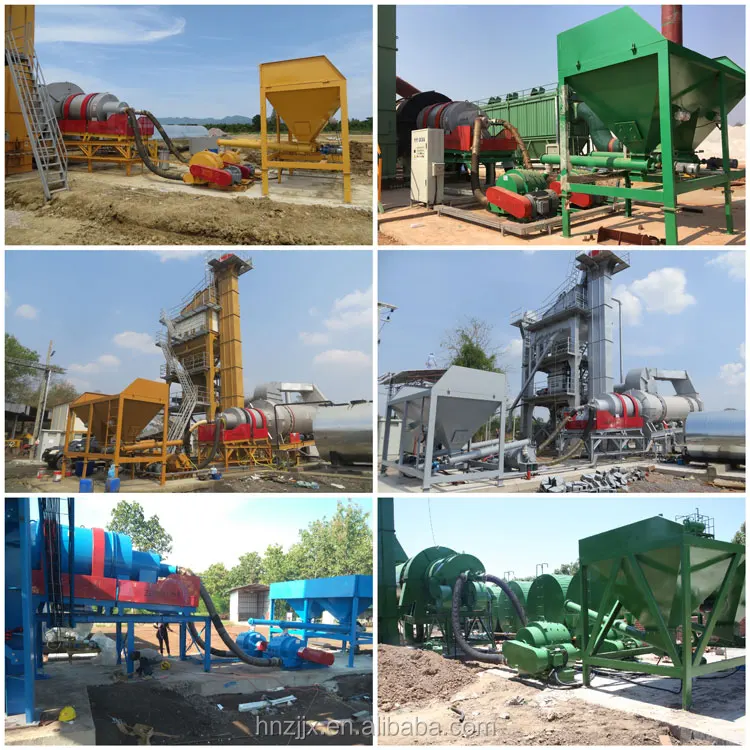

Projects

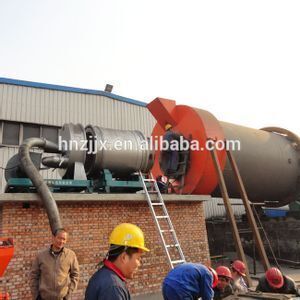

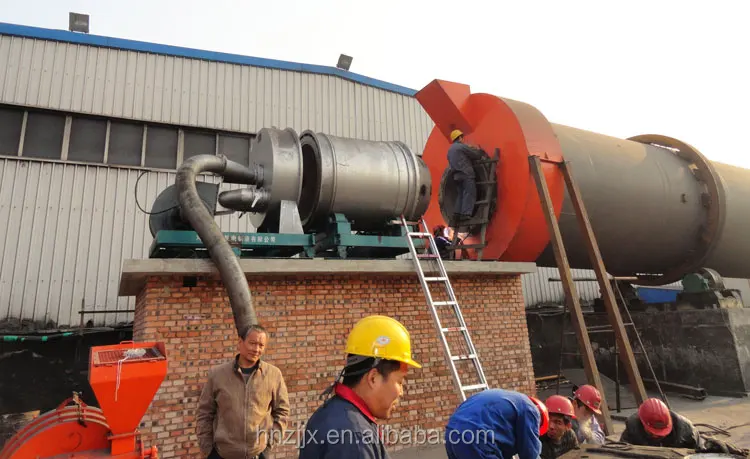

Coal burner for drying drum  working site:
