China manufacturer asphalt melting equipment, bitumen melting machine
- 57000.00 set
| Supply Ability: | 10 Set/Sets per Month; | After-sales Service Provided: | Free spare parts,Video technical support,Online support,No after-sales service,Field installation, commissioning and training; |
| oil furnace: | heating speed faster, stable; | application: | different specification barrel shape in different country; |
| temperature of conduction oil: | 200-240; | burner: | diesel oil burner; |
| Dimension(L*W*H): | asphalt melting equipment model; | structure: | closed type; |
| design: | modular design; | product name: | China manufacturer asphalt melting equipment, bitumen melting machine; |
| heating: | heated more quickly and uniform heating; | Certification: | CE,ISO,EAC,EMC; |
| Place of Origin: | Henan China; | Packaging Detail: | China manufacturer asphalt melting equipment, bitumen melting machine need:standard container, 20GP/40GP/40HQ; |
| Warranty: | 1 YEAR; | Brand Name: | ZOOMLINE; |
| energy saving: | saving energy 50% than continuous type; | Power(W): | 32-41.5KW; |
| Weight: | asphalt melting equipment model; | Port: | Qingdao/Shanghai/Tianjin; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | control system: | automatic control according to oil temperature; |
| Condition: | New; |
China manufacturer asphalt melting equipment, bitumen melting machine
ZAM series bitumen melting machine is consist of melting tank, sliding supporting platform, thermal oil furnace heating system and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barreled bitumen; the lower one is equipped with heating coil, and the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump( 100°C),then the bitumen pump pumps the bitumen into high-temperature tank, if increasing the heating time, you can get higher temperature.
The Feature of ZAM series bitumen melting machine
1.Closed type production, Energy Efficiency, No Pollution.
2.Easy operation, modular design, easy to transportation and assembly.
3.Batch-type fully enclosed structure, saving energy 50% than continuous type asphalt melting equipment.
4.Exhaust from thermal oil furnace is used again, high energy utilization.
5.ZAP series asphalt melting equipment can be applied to different specification barrel shape in different country, strong applicability, wide range of application.
6.Using large displacement heat preservation pump to internal circulation and agitation, asphalt be heated more quickly and uniform heating. water vapor is exhausted quickly by induced draft fan to dewatering by negative pressure.
7.Thermal oil furnace adopts automatic Control System and international brand burner which can automatically control according to oil temperature with instrument monitoring.
8.High power thermal oil furnace, heating speed faster, stable and reliable performance.
ZAM series asphalt melting equipment technical parameter
| Model | ZAM-4 | ZAM-6 | ZAM-8 |
| Capacity | 4-6T/H | 6-8T/H | 8-10T/H |
| Thermal oil furnace | 600,000Kcal/h | 800,000Kcal/h | 1000,000Kcal/h |
| Thermal oil temperature | 200-240°C | 200-240°C | 200-240°C |
| Bitumen temperature | 120-140°C | 120-140°C | 120-140°C |
| Bitumen storage volume | 11m3 | 17m3 | 24m3 |
| Total power | 32kw | 37kw | 41.5kw |
| Over Size | 6200×2200×2700 mm | 8250×2200×2700 mm | 11500×2200×2700 mm |

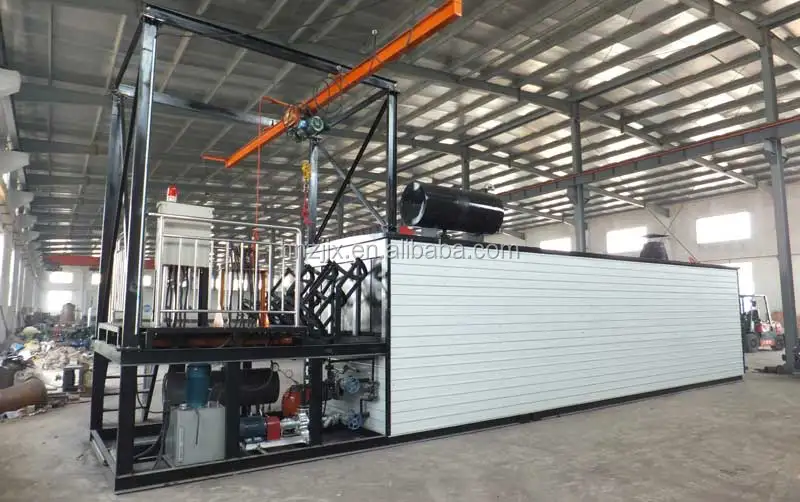

Pictures of asphalt melting equipment,bitumen melting machine delivery:
