ZOOMLINE hot asphalt batching plant, bitumen mixer machine
-
Supplier: Henan ZOOMLINE Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr ZOOMLINE MACHINERY -
Price: $200000.00 /set -
Min. Order: 1 set
| Certification: | ISO, CE, EAC; | Product name: | ZOOMLINE hot asphalt batching plant, bitumen mixer machine; |
| Color: | Client's Requirement; | Place of Origin: | Henan China; |
| After-sales Service Provided: | Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Voltage: | 220V/380V-50Hz; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Port: | Sea Port: Qingdao/Shanghai/Tianjin; |
| Packaging Detail: | ZOOMLINE hot asphalt batching plant, bitumen mixer machine need:40HQ Containers; | Package Preview: | ; |
| Warranty: | 1 YEAR; | Condition: | New; |
| Applicable Industries: | Manufacturing Plant,Construction works ,Road construction machinery; | Showroom Location: | Egypt,Indonesia,Pakistan,Russia,Thailand,Bangladesh,Ukraine,Kyrgyzstan,Uzbekistan,None; |
| Power(W): | According to asphalt plant model; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Installment; |
| UNIQUE SELLING POINT: | Reliable quality; | Dust Removal Way: | Gravity Dust+Clothe Bag Deduster; |
| Dimension(L*W*H): | According to asphalt plant model; | Mixer capacity: | 500-4000kg/batch; |
| Weight: | asphalt plant model; | Model: | ZAP-S40-320; |
| Control system: | PLC+colorized Touching Screen; | Supply Ability: | 20 Set/Sets per Month; |
| Weighing system: | METTLER TOLEDO; | Local Service Location: | None; |
| Service: | Technical Services; | Brand Name: | ZOOMLINE; |

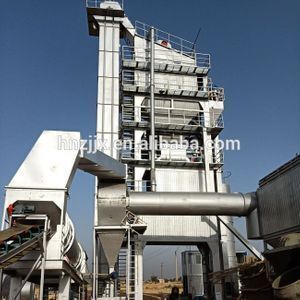

ZOOMLINE hot asphalt batching plant, bitumen mixer machine
ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.
Main advantages of hot asphalt batching plant:
• Cost effective solutions for your project
• Multi-fuel burner for choose
• Environmental protection, energy saving, safe and easy to operate
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Rational layout, simple foundation, easy to be installed and maintenance
Main components of 40-320TPH asphalt mixing plant:
Asphalt mixing plant mainly including cold feed systems, drying system, burning system, hot material enhance, vibrating screen, hot material storage bins, weighing mixing system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
The main accessories of bitumen mixer machine:
Technical parameters of ZAP-S series asphalt mixing plant:
| Items | ZAP-S40 | ZAP-S60 | ZAP-S80 | ZAP-S100 | ZAP-S120 | ZAP-S160 | ZAP-S200 | ZAP-S240 | ZAP-S320 |
| Plant Capacity | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
| Cold Aggregate Feeding System | |||||||||
| Hopper capacity | 4 x 4.5m3 | 4 x 4.5m3 | 4 x 6.5m3 | 4 x 6.5m3 | 4 x 8m3 | 5 x 8m3 | 5 x 15m3 | 5 x 15m3 | 6 x 15m3 |
| Belt capacity | 60t/h | 80t/h | 100t/h | 120t/h | 140t/h | 180t/h | 220t/h | 280t/h | 360t/h |
| Drying System | |||||||||
Drying drum size (mm) | 1200x5200 | 1200x5500 | 1500x6600 | 1500x6600 | 1800x8000 | 1900x9000 | 2200x9000 | 2600x9500 | 2800x10200 |
| Drying capacity | 40-60t/h | 60-70t/h | 80-100t/h | 100-120t/h | 120-140t/h | 160-180t/h | 200-220t/h | 240-260t/h | 320-360t/h |
| Burner (oil) | 70-300kg/h | 100-400kg/h | 60-600kg/h | 100-1000kg/h | 100-1000kg/h | 140-1400kg/h | 180-1800kg/h | 180-1800kg/h | 250-2500kg/h |
| Fuel consumption (oil) | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t | 6.5-7kg/t |
| Mixing Tower | |||||||||
| Screen | 4 layer | 4 layer | 4 layer | 4 layer | 4 layer | 4/5 layer | 5 layer | 5 layer | 6 layer |
| Aggregate weighing | 3x500kg | 3x1000kg | 3x1000kg | 3x1500kg | 3x1500kg | 3x2000kg | 3x3000kg | 3x3000kg | 3x5000kg |
| Bitumen weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Filler weighing | 3x100kg | 3x100kg | 3x100kg | 3x200kg | 3x200kg | 3x200kg | 3x500kg | 3x500kg | 3x500kg |
| Mixer capacity | 500kg | 800kg | 1000kg | 1300kg | 1500kg | 2000kg | 2500kg | 3000kg | 4000kg |
| Mixing cycle | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s | 45s |
| Dust Collecting System | |||||||||
| Bag house filtering | 200m2 | 300m2 | 430m2 | 480m2 | 550m2 | 650m2 | 700m2 | 1050m2 | 1350m2 |
| Exhaust Fan power | 18.5/22kw | 30/37kw | 45kw | 55kw | 2x45kw | 2x55kw | 2x75kw | 2 x 90kw | 2 x 110kw |
| Asphalt Temperature | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ | 140-180 ℃ |
| Finished Asphalt Silo (Optional) | 30 ton | 30 ton | 30 ton | 60 ton | 100 ton | 100 ton | 100/200 ton | ||
| Total Power | -150kw | -180kw | -270kw | -300kw | -390kw | -500kw | -570kw | -640kw | -800kw |
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment. Our asphalt mixing plant have been used in highways, high-grade highways, urban roads and airport construction and got high reputation for their excellent performance. Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Uzbekistan, Kyrgyzstan, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc.
ZAP-M series 80-160t/h mobile batch asphalt mixing plant
ZAP-C(M) 20-120t/h drum mix asphalt plant
Henan ZOOMLINE Machinery CO., Ltd. is based in Nanyang Longsheng Industrial Park of Henan. To be a professional asphalt mixing plant supplier, we have one R & D manufacturing center which cover an area about 50,000 square meters. The leading products include stationary asphalt mixing plant, mobile asphalt mixing plant, continuous drum asphalt mixing plant,recycling asphalt plant, which are widely used in highway, city road, bridges and air port.
ZOOMLINE Certificate
After almost 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. This years, our asphalt mixing plants have got CE,EAC,EMC and ISO9001 certificate.
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment.Welcome to our factory to visit the asphalt mixing plants.
1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
-
