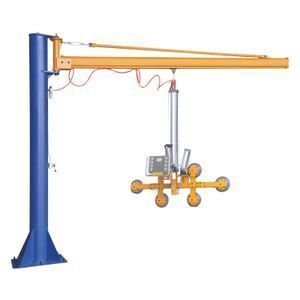

Pneumatic Glass Lifter Lifting Moving Machine

Product details
Product Name:Pneumatic cantilever type glass lifter;Brand Name:CARETECH;
Min structure size:725x1030mm;Dimension(L*W*H):500x725x1030mm;
Packaging Detail:1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;;Application:Glass lifting and moving;
Max lifting weight:400kg;Max structure size:1130x1810mm;
After-sales Service Provided:Video technical support,Engineers available to service machinery overseas;Certification:ISO CE;
Vacuum pressure:>0.5bar;Safety Guarantee System:20min working without pressure;
Condition:New;Payment Terms:L/C,T/T,Western Union;
Place of Origin:Shandong China;Warranty:12 Months;
Turning angle:0-90degree;Horizontal rotation:360degree;
Applicable Industries:Manufacturing Plant,Construction works ;

Pneumatic Glass Lifter Lifting Moving Machine



Product parameter





Parameters

Model

CAPL-200

CAPL-300

CAPL-500

Rated load

200kg

300kg

500kg

Sucker diameter

250mm

250mm

250mm

Sucker qty

2

4

6

Vertical turning

0°-90°

0°-90°

0°-90°

Horizontal rotation

360°

360°

360°

Weight

60kg

80kg

100kg

Air pressure

>0.5bar

>0.5bar

>0.5bar

The glass lifter is used for handling and transferring various kinds of glass, and widely used in glass deep processing industry. The lifter is composed of cantilever and handling arm, both part could be customized.

Product Details

Product Flow

Products Features

1.Suitable for moving insulating glass /tempered glass/glass curtain wall.

2.Pneumatic glass arm is used to load and unload heavy and hot glass easily. It is easy to carry  and very safe and save many labor cost.

3.It features better stability, much safer and more convenient to operate.

4.It could be used in the laminated glass production line, insulating glass production line, mirror glass production line, glass cutting and edging production line and so on.

5.With vacuum pressure charging system, equipment can ensure the whole vacuum system within a relatively constant safe pressure value during transition.

Product Application



The lifter is widely used for lifting, handling and moving of glass, steel and wood sheet and marble.

Packaging & Shipping



Company Information

We are quality conscious company, and it’s just our origin to supply customers qualified machines. We are always trying to be the “Solution Expert of Glass Processing Facilities”. We not only supply complete glass processing facilities, but our professional engineer team also provide right facility configuration, accordingly customers’ various production requirements and estimated investment. And we’ll provide essential industrial design and technical guidance as well.
