Product Details

application:	Mobile installation robot for lifting glass, sheet metal	Applicable industries:	Building Materials Store, Machinery Repair Shop, Manufacturing Plant, Food & Beverage Plant, Farm, Home Use, Retail, Food Store, Printing Shop, Construction, Energy & Mining, Food & Beverage Store, Other
Package preview:		Core components:	Water pump, 24V/12A charger, 2*12V/40A batteries
Mechanical test report:	if	brand:	OTM
Weight (kg):	450 kg	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Warranty:	1 year	Marketing Type:	2020 Hot Products
Health status:	new	Core components:	motor, water pump
Video shipment inspection:	if	Origin:	Fujian China
Function:	Electric flip rotation, flip up and down, flip function	Suction cup diameter:	300mm, 4pcs for 300kg, 400kg, 6pcs for 500kg, 600kg, 800KG

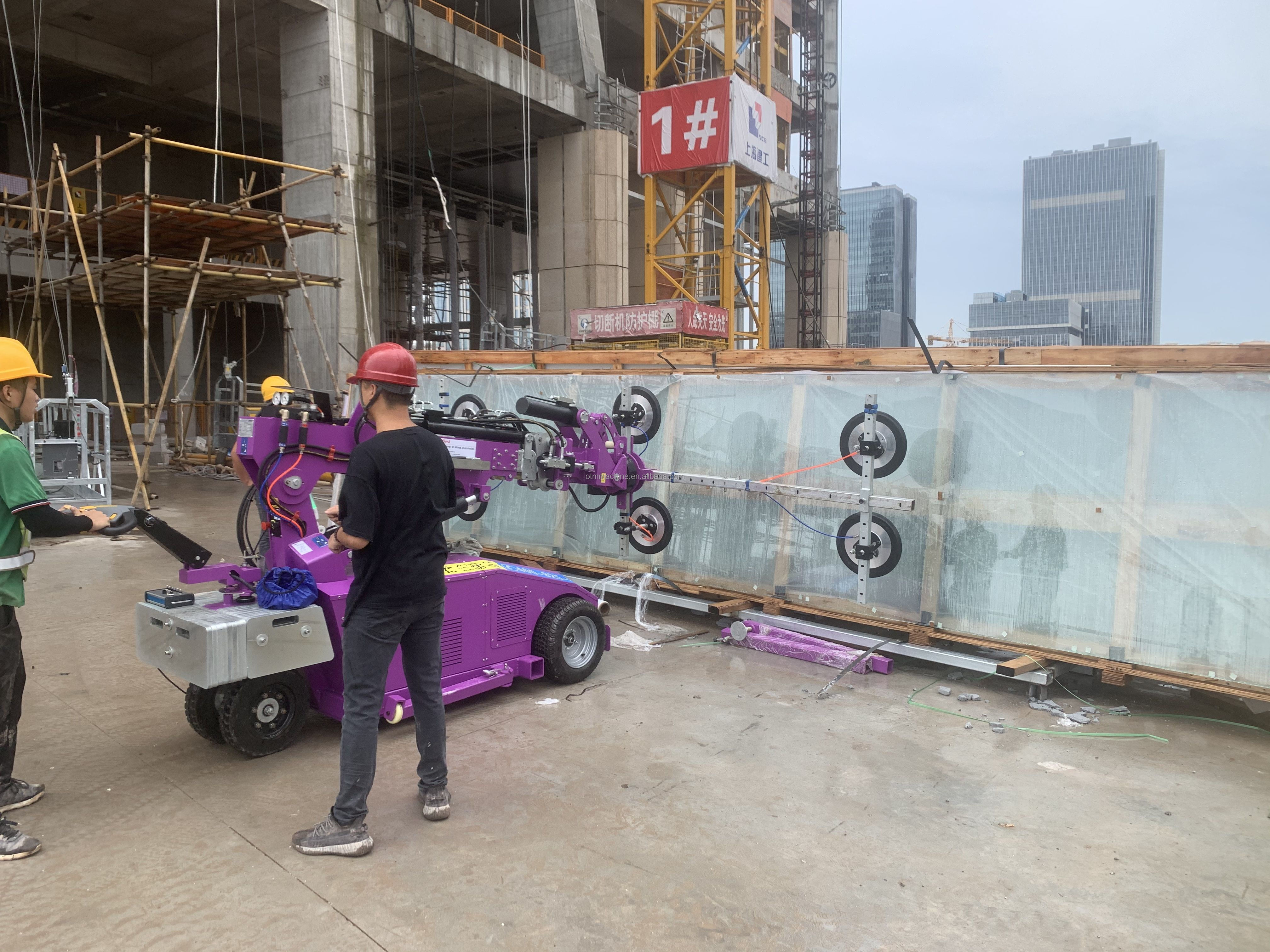

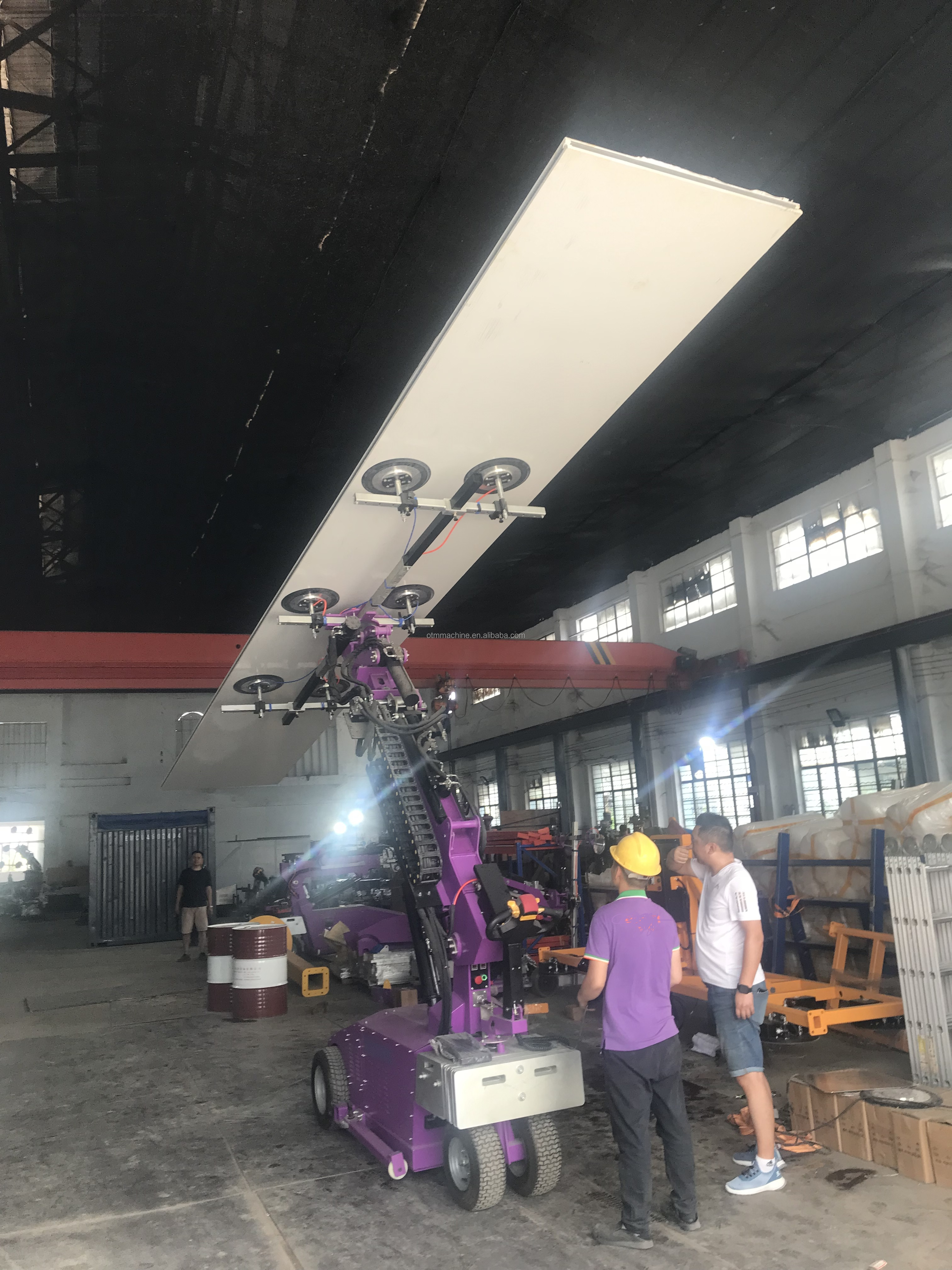

product name:	Mobile Electric Vacuum Lifter Glass Robot Lifter Unit	port:	Guangzhou/Shanghai/Qingdao Port/Customized port according to customer requirements
Showroom location:	not any	Carrying capacity:	300kg ,400kg ,500kg ,500kg ,600kg ,800kg
Core component warranty:	1 year	Supply capacity:	60 sets per month
Dimensions (LWH):	3500x3000x350mm	After warranty service:	online support
Packaging Details:	Mobile Electric Vacuum Lifter Glass Robot Lifter Unit 1. Strong Export Wooden Box	Lifting height:	3.5m, 4.6m, 5m lifting height
Power Systems:	electric + battery and remote	Drive motor/Lift motor:	24V/750W, mobile glass robot lifting device

Product Description

lifting height	3500mm, 4600mm, 5000mm lifting height
loading capacity	300kg ,400kg ,500kg ,600kg ,800kg
Battery	2x12V/40A for 300kg and 350kg, 2x12V/45A for 400kg, 2x12V/60A for 500kg, 600kg
lift motor	24V/2000W
Suction cup diameter	300mm
Drive wheel size	250*80mm
Electric Glass Vacuum Lifter Robot and CE Approved Glass Transporter Construction Glass Vacuum Lifter Why choose us?	Suitable for a wide range of boosts: Smooth surfaces such as glass, panels, sheet metal, marble, ceramic, stone and slabs. , construction and installation assistant, 1. Imported suction cup 2. Three-layer sealing ring, 3. Good sealing performance, 4. Soft and environmentally friendly material. 5. Dual system control, 6. Barometer imported from Japan, 7. Air pump imported from Europe, 8. Features: stable quality, high safety performance. Handles lifting, moving and rotating easily with vacuum suction cups Powerful drive system.	CDD-L
Function	Up and down, 270-degree rotation, 90-degree flip function, safety alarm, one-button operation, remote control, and can be moved on any flat place	300	350	400	500
manual rotation	270 degrees, 90 degrees flip
charger	24V /12A for 300kg ,400kg ,24V /15A for 500KG ,600kg and 800kg
