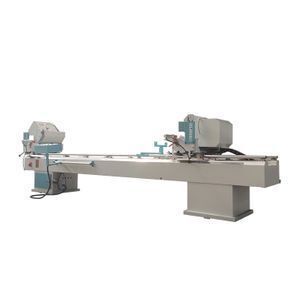

Aluminum And PVC Profile Miter Saw Cutting Machine

Product details
Voltage:380V;Air consumption:50L/min;
Applicable Industries:Manufacturing Plant,Construction works ;Key Selling Points:Easy to Operate;
Brand Name:Care;Saw blade specification:400x30;
Power(W):3kw;Certification:ce;
Cutting length:320~3700mm;Dimension(L*W*H):customizable;
Packaging Detail:1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;;Cutting width:100mm;
Spindle rotary speed:2800r/min;Payment Terms:L/C,T/T,Western Union,MoneyGram;
After-sales Service Provided:Online support;Product name:Pvc upvc profile window door double head mitre cutting saw machine;
Air pressure:0.5~0.8mpa;Supply Ability:20 Set/Sets per Month;
Power supply:380v 50hz;Production Capacity:customizable;
Input Power:2x1.5kw;Warranty:1 year;
Port:Qingdao Port;Applicable Material:PVC,UPVC,Aluminum;
Cutting height:150mm;Weight:customizable;

Aluminum And PVC Profile Miter Saw Cutting Machine

Product parameter





Power supply

380v 50hz

Input Power

2×1.5kw

Spindle rotary speed

2800r/min

Cutting height

150mm

Cutting width

100mm

Air pressure

0.5~0.8mpa

Air consumption

50L/min

Saw blade specification

∅400×∅30

Cutting length

320~3700mm





Product detail





Products Features

1. This machine is used for processing the aluminum and pvc profiles at angles of 45°,90°.

2. The swaying stable feeder is adopted.

3. The pneumatic driving system is used in profiles clamping and cutting.

4. It has the features of easy operation and high accuracy.

5. Imported carbides blade is of accurate processing and high accuracy.

6. Saw blade rotates smoothly due to high accuracy main spindle.

7. Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.

8. It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.
