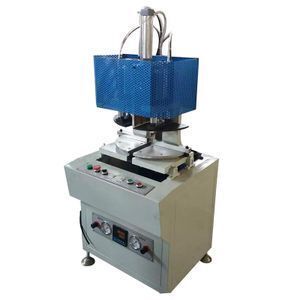

PVC upvc windows making welding machine

Supplier: Shandong Care Machinery Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Care Machine
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Diamension:	960x900x1460mm;	Supply Ability:	20 Set/Sets per Month;
Certification:	ce;	After-sales Service Provided:	Online support,Engineers available to service machinery overseas;
Port:	Qingdao Port;	Machine Type:	One Head;
Applicable Material:	PVC,UPVC;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Brand Name:	Care;	Welding:	120x120x1800mm;
Input Power:	1.5kw;	Product name:	PVC upvc windows making welding machine;
Packaging Detail:	1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;;	Application:	Weld Upvc Window;
Dimension(LWH):	960x900x1460mm;	Power supply:	380V 50Hz;
Weight:	800kg;	Air consumption:	0.5-0.8MPa;
Warranty:	1 Year;	Production Capacity:	100%;
Voltage:	380v;	Power:	1.5kw;

PVC upvc windows making welding machine

PVC window welding machine is used for welding and fabrication of PVC/UPVC window frame. According to various processing capacity and investment, there are single head, double head, triple head and four head welder for choice.

1,Suitable for welding common PVC profile, color coated PVC profile and laminated PVC profile.

2,Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.

3,Double pressing function ensures higher welding strength.

4,The pressure of front and back clamper is adjusted separately, so as to improve the planeness of the welding corner

5,The heads are operated individually, together.

6,No. 2,3,4 head can move horizontally, so that realize various kinds of welding combination.

7,The fourth head can be used for welding variable angle with the special mold and the angle range from 30°~180°.

8,Professional mold configuration, can provide the design for different profiles ensure the welding quality. (optional)

9,Welding seam is about 0.10-0.15mm.

10,single head, double head and triple head welding machine available.

Parameters of Care PVC welding machine
Options	single head	double head	triple head	four head
Power supply	380V 50Hz 3P (or customized)
Total power	1.2KW	2.5KW	3.5KW	4.5KW
Air pressure	0.5-0.8MPa
Welding scale (WxHxL)	120x120x1800mm	120x120x3500mm	120x120x3500mm	120x120x4500mm H=170mm customized
Dimension L×W×H	960x900x1460mm	4300x900x1650mm	4300x900x1650mm	5300x900x1650mm
