China famous brand 23m 26m 28m 32m 35m 38m telescopic arm Lifting Platform Truck Aerial Cage bucket truck
-
Supplier: Hubei Xindongri Special Vehicle Co., Ltd. -
Region: Hubei, China -
Contact: Mr Eric Shen -
Price: $50000.00 /set -
Min. Order: 1 set
| Packaging Detail: | naked, waxing in bulk ship or roro; | Warranty for vehicle platform truck: | 12months; |
| Type of aerial platform truck: | telescopic boom; | Brand: | Xindongri; |
| Transmission Type: | Manual; | Supply Ability: | 300 Set/Sets per Month; |
| Emission Standard: | EURO 5; | Place of Origin: | Hubei China; |
| Max working height: | 23m 26m 28m 32m 35m 38m; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Dimensions (L x W x H) (mm): | 9400*2400*3850; | Curb weight: | 13085kg; |
| Brand Name: | DONGFENG; | Fuel Type: | Diesel; |
| Total weight: | 13280kg; | WheelBase: | 4700mm; |
| Name: | telescopic boom aerial working truck; | Port: | any port in China; |
| Chassis brand: | Dongfeng; | Condition: | New; |
| Driving type: | 4*2 4*4 RHD LHD; |
Dongfeng Tianjin 23m 26m 28m 32m 35m 38m telescopic boom aerial working truck bucket truck
aerial work truck , mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.
The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
General introduction for aerial working truck | |||||
| name: aerial working truck brand: Dongfeng Tianjin driving: 4*2, cummins engine working height: 23-38m Function: Especially be popular in maintenance and construction of streetlamp, landscape, electricity, communication, chemical industry, etc. | |||||
| Detail description for high platform truck | |||||
| Entire Vehicle | Main Parameter | Gross Weight(kg) | 13280 | ||
| Curb Weight(kg) | 13085 | ||||
| Overall Dimension (L * W * H)(mm) | 9400*2400*3850 | ||||
| Chassis | Chassis Mode | DFL1160BX1V | |||
| Engine Parameter | Mode | ISB190 50 | |||
| Power(kw) | 140 | ||||
| Displacemint(ml) | 5900 | ||||
| Fuel Type | Diesel | ||||
| Functional Parameter | Max Speed(km/h) | 98 | F/R Tread(mm) | 1430/2690 | |
| Leaf Spring | 7/9+6,8/10+8,10/11+10 | F/R Overhang(mm) | 1430/2690,1430/2230 | ||
| Axle Load(kg) | 5100/8180 | Approach/Departure Angle(°) | 20/13 | ||
| Tire Size | 10.00-20, 10.00R20 | Number of Tires | 6 | ||
| Wheelbase(mm) | 5000, 4700 | Number of Axles | 2 | ||
| Specialized Device | Special Parameter | Max Working Height(m) | 23m 26m 28m 32m 35m 38m | Rotation Speed(r/min) | 0~2 |
| Max Working Radius(m) | 8.5 | Rated Hoisting Capacity(kg) | 1000-2000 | ||
| Rated Loading Capacity of Working Platform(kg) | 200 | Max Hoisting Height(m) | 8.8 | ||

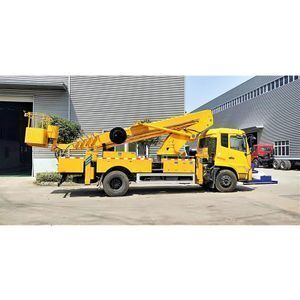

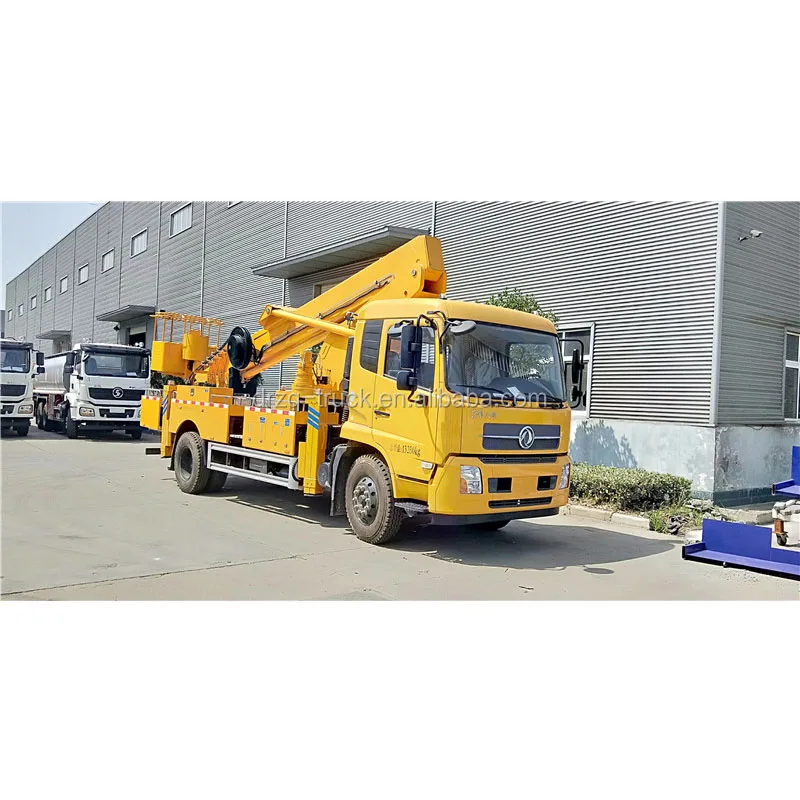

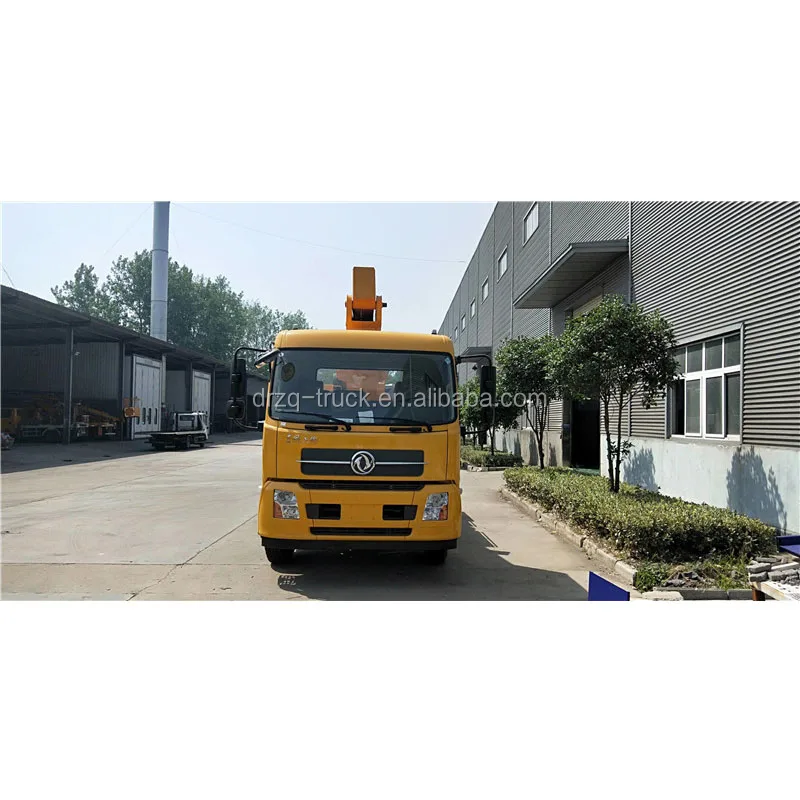

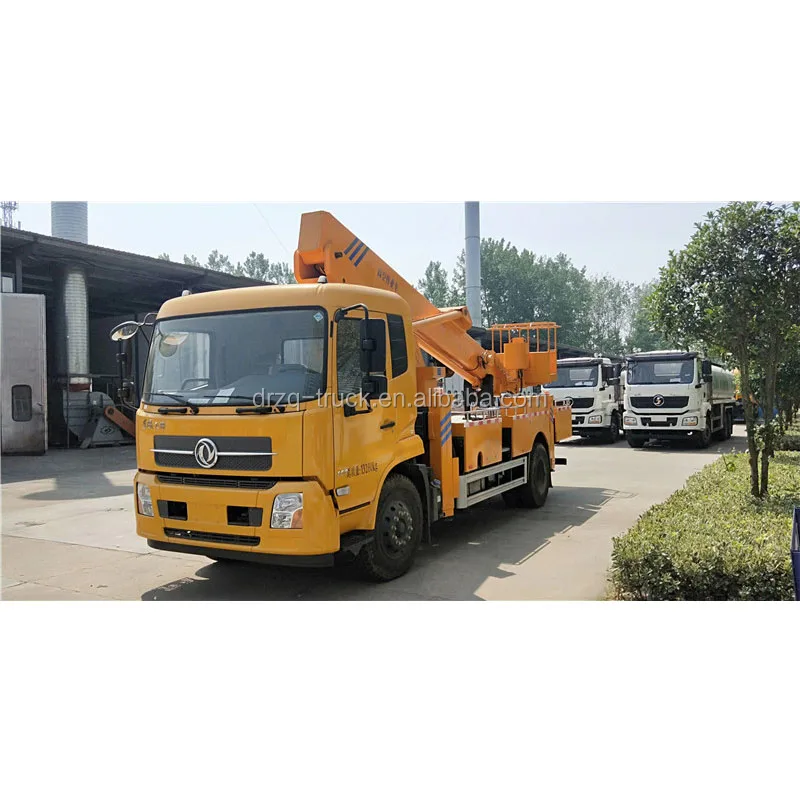

| Pictures for high platform truck | |||||
Special service from factory:
1. We have trucks produced on national standard demands;
2. We have engineers to help the client customize product;
3. We have 1 year guarantee for our products after-sale;
4. Welcome clients here for a visit!
-
