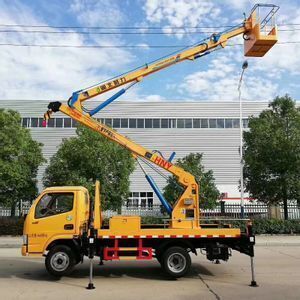

11m 18m 24m aerial platform manlift truck for tree pruning cable maintenance

Product details
Port:ANY SEA PORT;Color of aerial truck:as customer requirements;
Transmission Type:Manual;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Steering wheel:left,right hand drive trucks;Working height:10-24m aerial platform;
Dimensions (L x W x H) (mm):7400X1980X3100mm;Emission Standard:Euro 3;
Supply Ability:30000 Unit/Units per Year;Place of Origin:Hubei China;
Drive type:option 4X2,4X4 aerial truck;Cabin type:single,double cabin aerial lift truck;
Chassis:option DONGFENG,FOTON,JAC,JMC and Japan brand;Control system:hydraulic control aerial platform truck;
Brand Name:CLW;Packaging Detail:cover with wax;
Vehicle name:aerial platform truck;Fuel Type:Diesel;
Condition:New;

- What is aerial platform truck ?

   Aerial platform truck is also called truck mounted aerial work platfirm,man lift truck,aerial working truck, high altitude working truck,bucket truck,platform truck,lift truck,aerail truck,etc.

It's widely used in electric power, street lamps, municipal, garden, communications, airports, building (repair) ships, transportation, advertising, photography and other aerial work areas.



Features of Chengli company aerial truck :
As professional aerial working truck manufacturer,we provide different kinds of aerial truck to meet different customers requirements.
1. Aerial working height : 10m - 22m.
2. Different emission standard : Euro 1,Euro 2,Euro 3,Euro 4,Euro 5
3. Drive form has 4X2,4X4.
4. Chassis option ISUZU,Dongfeng, JMC,JAC, FORLAND, etc.
5. Cabin option double-row ( 6 passengers ) and single row(3 passengers).
6. Steering wheel has left hand drive and right hand drive.
7. Aerial bucket can choose insulated bucket.

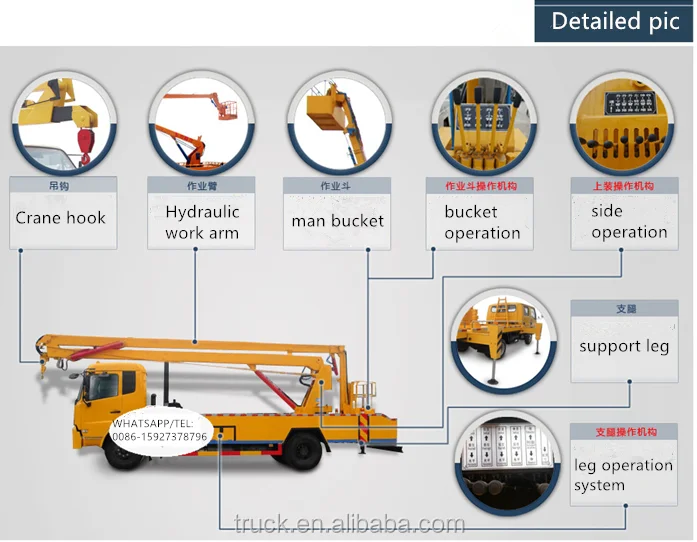

General structure of aerial truck with basket :


Get the latest quotation,contact Ms.Bella WhatsApp and WeChat online: 0086-15927378796.

Product Description

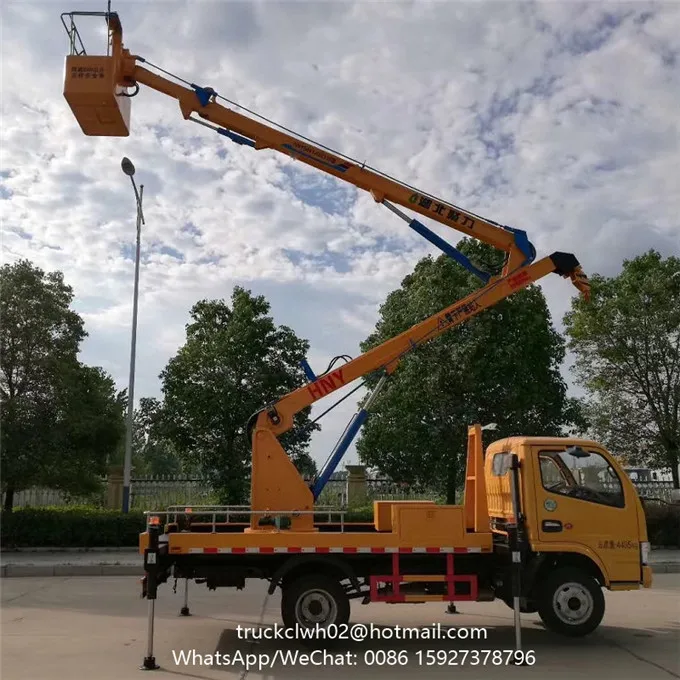

11m 18m 24m aerial platform manlift truck for tree pruning cable maintenance.

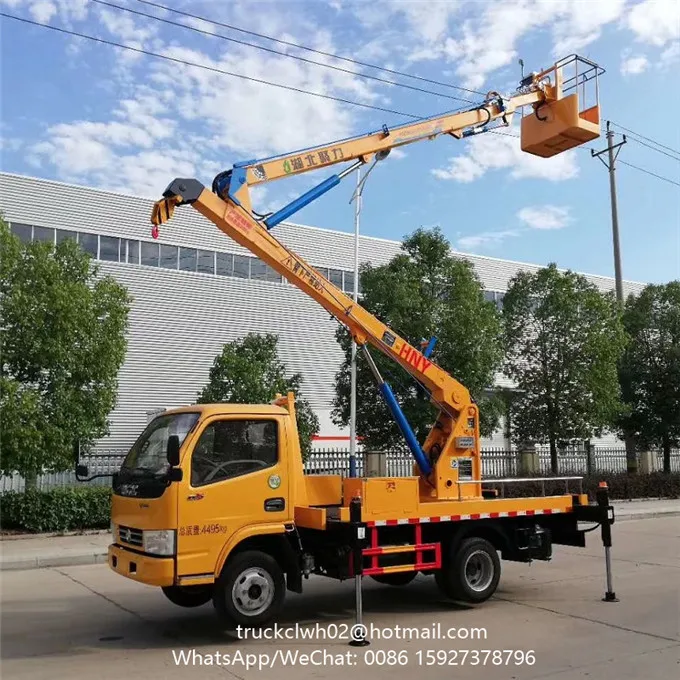

12m aerial platform wporking truck DONGFENG speicifcation

Complete Vehicle Parameter

Vehicle

DONGFENG aerial platform truck

Overall dimension (mm)

7400×1980×3100

Curb weight (kg)

Appro×5000

Platform payload (kg)

Appro×200

Wheel base (mm)

3300

Front/Rear overhang (mm)

1041/2122

Approach/departure angle (°)

20/15

Max speed (km/h)

90

Platform (bucket)

- Max operating(working) height 12m

- Max operating(working) radius 5.8m

- 360 degree rotation

- Bucket size 1080×610×1100mm

Hook

- Max lifting weight of hook is 1000kg

- Max lifting height 6.4m

Support Leg

4 pcs hydraulic support legs, and with hydraulic lock

Main Operation

Up and down operation, hydraulic control, two-way balance valve.

Chassis Parameter

Cabin

single cabin,power steering,no air conditioner, 2-3 passangers

Traction system

4×2

Engine

Brand : DONFGENG CHAOCHAI

Model :CY4102-C3F, 95hp

Type : diesel, 4 cylinder, turbocharged, intercooled.

Displacement : 3856ml

Emission standard : Euro III

Transmission

5 forward,1 reverse, manual operated

Tire model

7.00-16

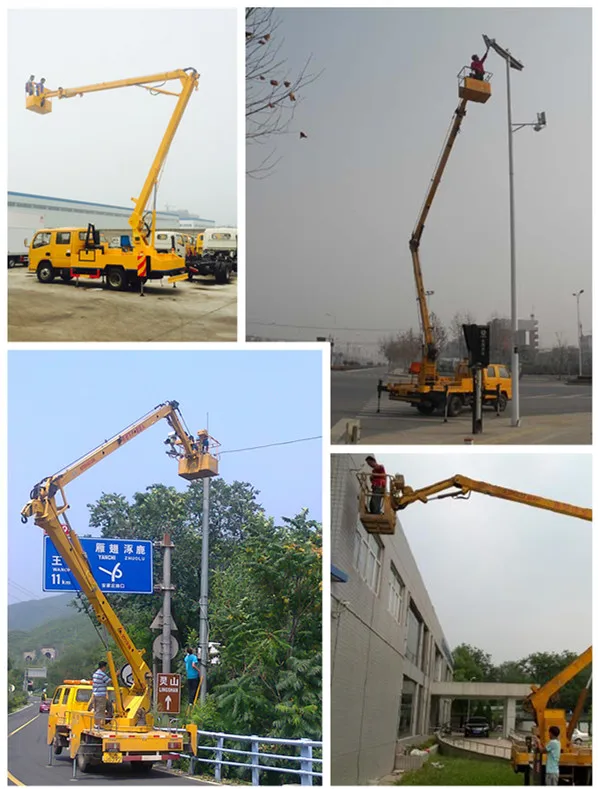

Application of aerial platform truck :



Get the latest quotation,WhatsApp and WeChat online: 0086-15927378796

Packaging & Shipping



Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.



Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.



Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.

Company Information

   Cheng Li Special Automobile Co., Ltd is an important part of Hubei Chengli Group, we are large  scale special truck modification plant for DONGFENG, FOTON, SINOTRUK, JAC, JMC, ISUZU, and  we are domestic well-known special trucks manufacturer for landscaping vehicles, petrochemical vehicles, municipal sanitation vehicles, pressure vessels. National product code: "CLW", government and enterprise procurement designated special vehicle supplier.

    Company is located in Cheng Li Automobile Industrial Park,Zengdu District,Suizhou City, Hubei Province, China, near Wuhan Tianhe International Airport.

   Company covers an area of more than 1,000 acres, more than 8,000 employees, among them, the technical staff is more than 500, more than 2,000 skilled workers, the annual production capacity is 100,000 vehicles.

    Our factory has more than 2000 sets large production equipment,detection equipment more than 200 sets , 16pcs assembly production lines, strong technical force and the detection means complete. Now already through a comprehensive ISO9001-2008 international quality system certification, all products through the 3C international compulsory product certification, and through the export of the product certification.

   Our company is China top 500 private manufacturing enterprise.
