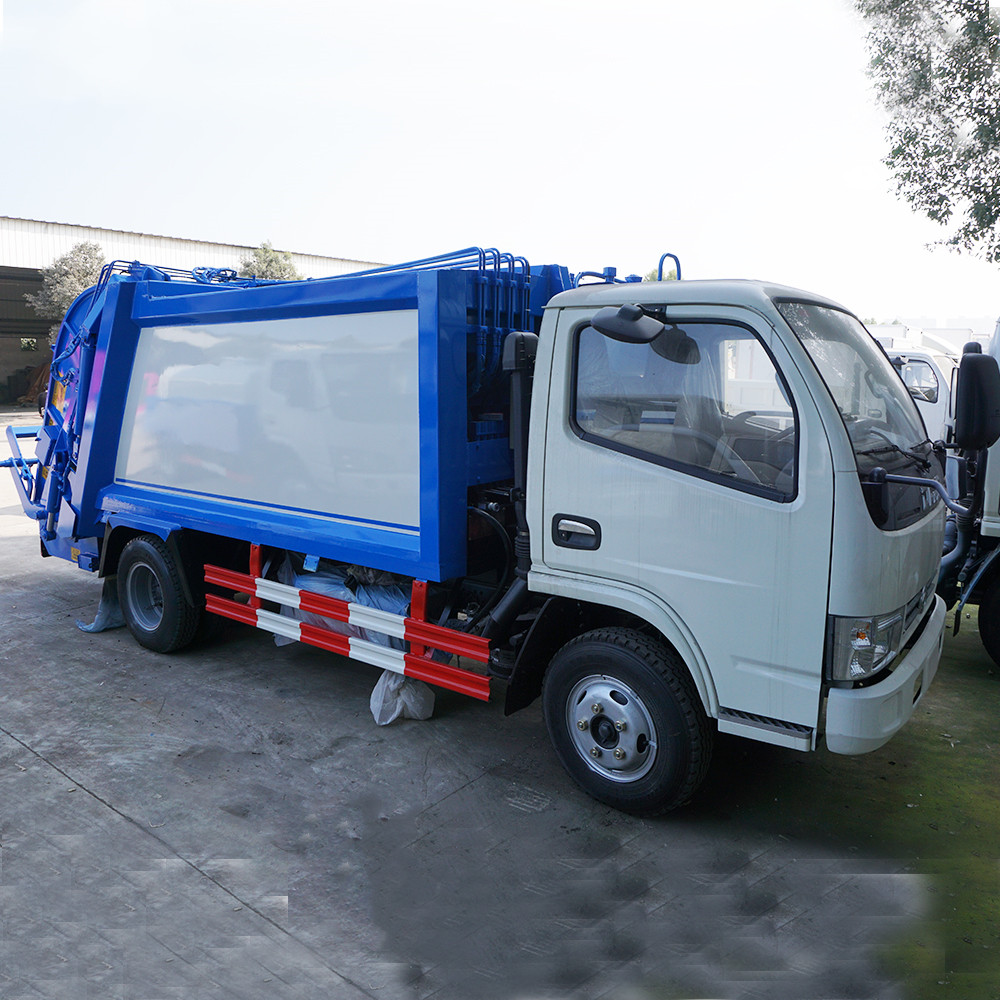

Garbage collection truck 6m3 garbage compactor truck

Click here to contact
Product details
brand:China Labor Watchtype:compactor
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramWheelbase:3800mm
Type of gasoline:diesel enginePackaging Details:Naked/Ro-Ro/Bulk Shipping/Container Packing/SKD, etc., can be provided according to your requirements
Gross vehicle weight:6350color:According to customer requirements
Certification:International Organization for Standardization, CCCEngine capacity:3856ml
place of origin; place of origin:Hubei, ChinaBin volume:8 cubic meters
Applicable industries:Municipal sanitationhorsepower:120 hp
Tire specifications:7.50R16Warranty:1 year 12 months
product name:garbage compactorsize:7100*2250*2750mm
After-sales service provided:Video technical support, online supportTransmission type:manual
Tire Size:6Emission Standards:Euro 3
Health status:newSupply capacity:300 units per month
port:any port in ChinaDrive Wheel:4X2
Axle load(kg):3300/4975

rubbish truckMainly used for municipal sanitation and large factories, it can transport all kinds of garbage, especially suitable for the transportation of community household garbage.
We provide various types of garbage collection trucks, such as side loader, garbage compactor, swing arm garbage truck, arm roll garbage truck, sealed dump garbage truck, compression docking garbage truck, kitchen garbage truck, etc., with different capacities, ranging from3T to 20T.

Product Description
Main technical data of the vehicle
thingdescribe
product namegarbage compactor
Product numberCLW5080ZYSD5
Dimensions (mm)7100×2250×2750(mm)
trash can volume8 cubic meters
Curb weight (kg)6350
Approach/Departure Angle (°)20/12(°)
Front/rear suspension(mm)1150/2400
Maximum speed (km/h)100
special configuration1.8m3 compaction garbage truck;
2. Tank material: high quality carbon steel. Side 4: mm, Bottom: 4mm

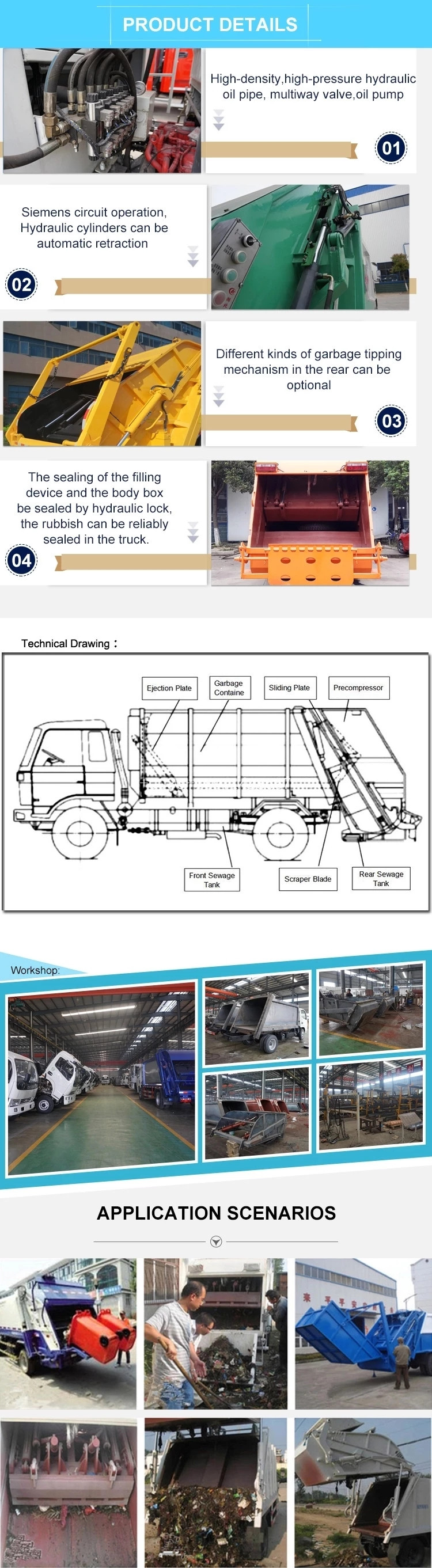

2. Hydraulic mechanism consists of box, loading mechanism, compression mechanism, unloading mechanism, oil pump, oil cylinder, control valve and other components.
Chassis parameters
Chassis brandDongfeng
Chassis modelEQ1080SJ8BDC
drive type4*2
spread6-speed, manual
taxi2 passengers
Type of gasolinediesel engine
Tire specifications7.50R16
tire number6
Wheelbase(mm)3800
alex2
Leaf spring number8/10+7
Pre-trend/post-trend (mm)1740/1610
Axle load(kg)3300/4975
Engine parameters
engine brandDongfeng Fried Chai
engine modelCY4102-E3C
Horsepower (hp)120 hp
Displacement/Power3856ml/88kw
Emission StandardsEuro 3



The above information is for reference only, we can produce trucks according to your specific requirements. Welcome to contact us and visit our factory!

Ms. Mira: +0086-18971428667

Packaging and Shipping







Our factory







main products

Our leading products includeWater trucks, sewage suction trucks, fire trucks, advertising trucks, garbage trucks, road sweepers, oil tankers, chemical liquid trucks, concrete mixer trucks, LPG tankers, dump trucks, refrigerated trucks and more than 300 models.The registered trademark "CHENLIWEI", the product code is "CLW". We have solid technology, impeccable testing, advanced equipment, reliable quality and flexible business methods.



contact us

Contact: Ms. Mila

Chengli Special Vehicle Co., Ltd.

Office Address: #3104, Floor 31, Building 7, Soho Fanhai International Business Center, Huaihai Road, Jianghan District, Wuhan, China Post Code: 430000

Headquarters address: Chengli Automobile Industrial Park, the southern suburb of Suizhou City, Hubei Province, China. Postcode: 441300

Email: clwh_mila @foxmail.com

Mobile: +86-189 7142 8667
