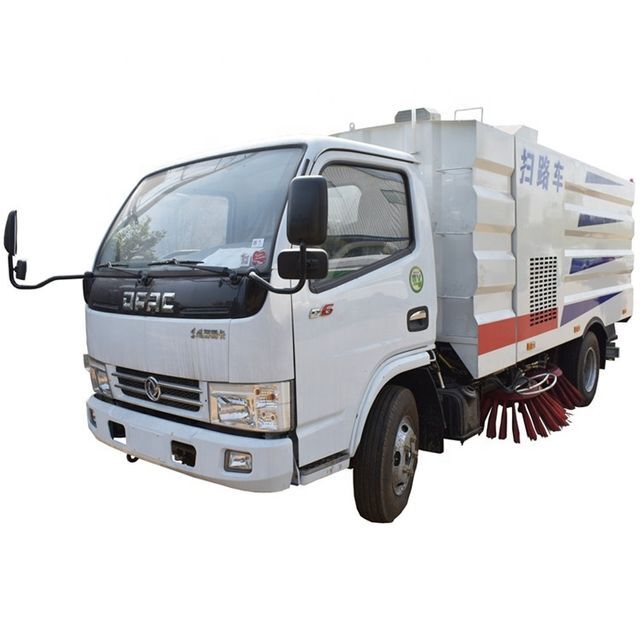

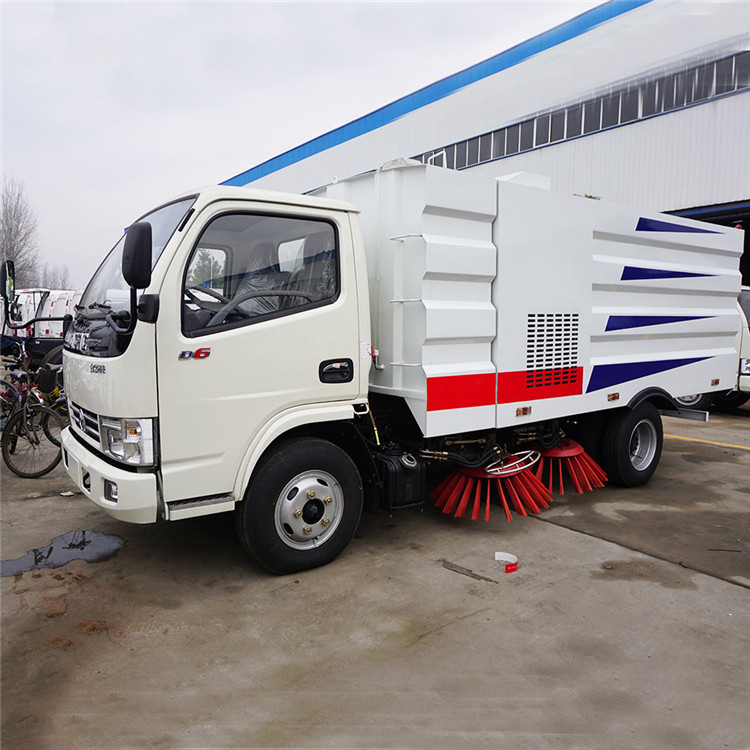

Factory supply 3-5 CBM mini automatic road sweeper for sale

Click here to contact
Product details
Wheelbase:3308mmbrand:China Labor Watch
weight:7360kgport:Shanghai, Qingdao
Maximum cleaning width:2.8mSupply capacity:30,000 units per year
product name:automatic road sweeperhorsepower:<150HP
color:customizedAfter-sales service provided:Video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support
Dimensions (L*W*H):6200*2000*2590mmChassis brand:Dongfeng Foton Howo FAW
Warranty:1 yeargasoline:lift
place of origin; place of origin:Hubei, ChinaTop speed (km/h):99
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramHealth status:new
Drive mode:4*2Packaging Details:Naked/Ro-Ro/Bulk Shipping/Container Packing/SKD etc. can be provided according to customer requirements
Drive System:4*2 LHD/RHD

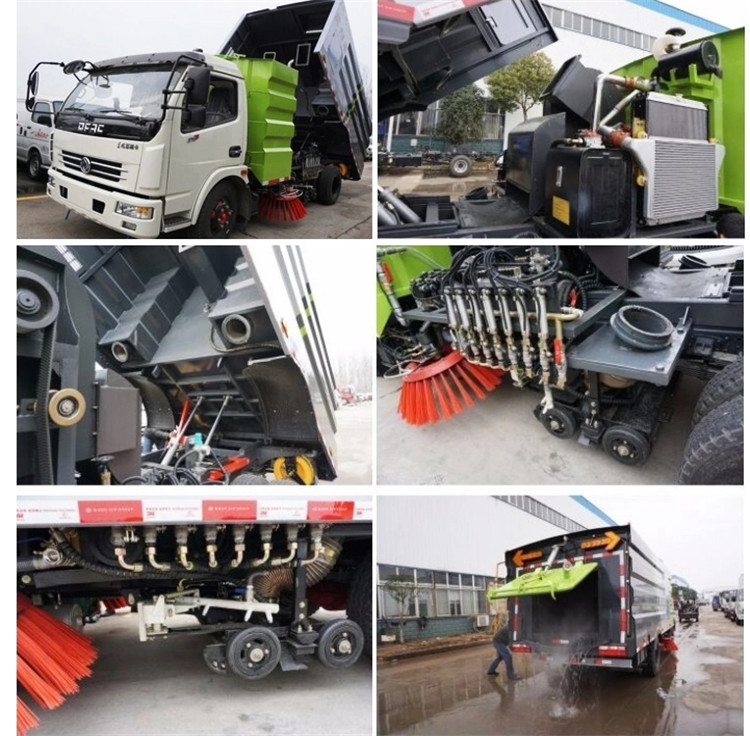

Product Description
road sweeper,As one of the sanitation equipment, it is a new type of high-efficiency cleaning equipment that integrates road cleaning, garbage collection and transportation. It can be widely used in highway, municipal, airport road, urban residential area, park road cleaning, ETC.
Main technical data of the vehicle
thingdescribe
product nameDongfeng sweeper
Dimensions (mm)6200×2000×2590(mm)
Fuel tank capacity5.5 cubic meters
Gross weight (kg)7360
Curb weight (kg)5040
Approach/Departure Angle (°)20/12(°)
Front/rear suspension(mm)1040/1852
Maximum speed (km/h)99

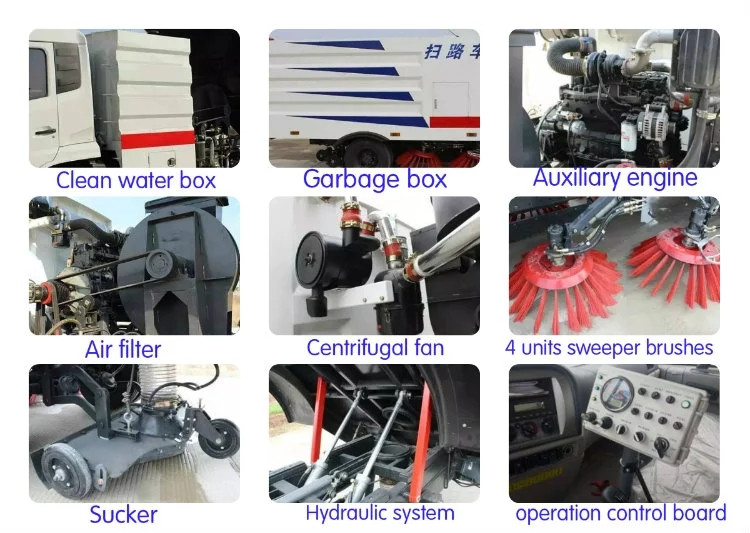

The standard configuration1. The cleaning width is 2.8 meters;
2. The water tank capacity is 1.5 square meters, the garbage bin capacity is 4 square meters, and the maximum cleaning volume is 40,000 square meters per hour;

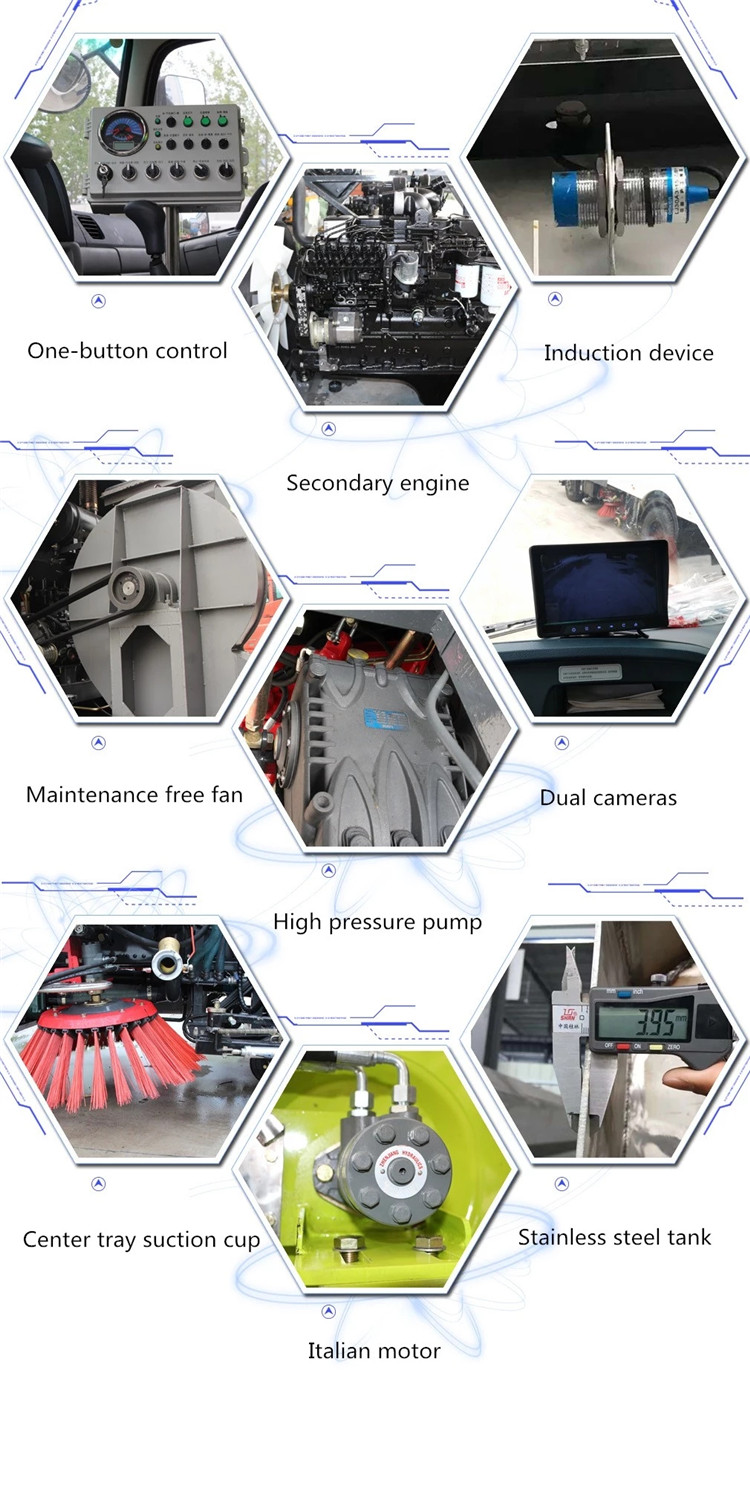

3. Imported high pressure pump, stainless steel trash can, water tank, trash can with self-cleaning device.
Chassis parameters
Chassis brandDongfeng
Chassis modelEQ1070SJ3BDF
drive type4*2
taxi2 passengers
Type of gasolinediesel engine
Tire specifications7.00-16
tire number6
Wheelbase(mm)3308
alex2
Leaf spring number6/6+5
Pre-trend/post-trend (mm)1503/1494
Axle load(kg)2640/4720
Engine parameters
engine brandChaoyang
engine modelCY4BK551
Horsepower (hp)100
Displacement/Power3707ml/75kw
Emission StandardsEuro 3



The above product pictures and specifications are for reference only. Feel free to contact me if you want more details or exact price. We can provide custom designed products to meet any of your needs. Welcome to visit our factory!

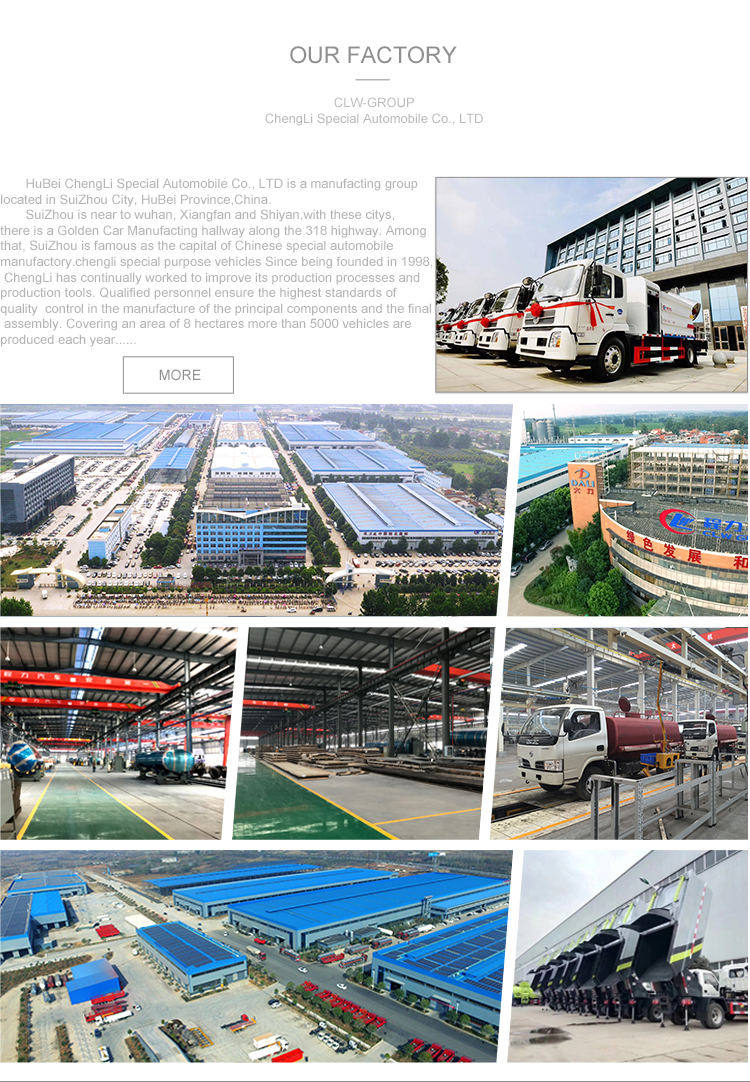

Our factory

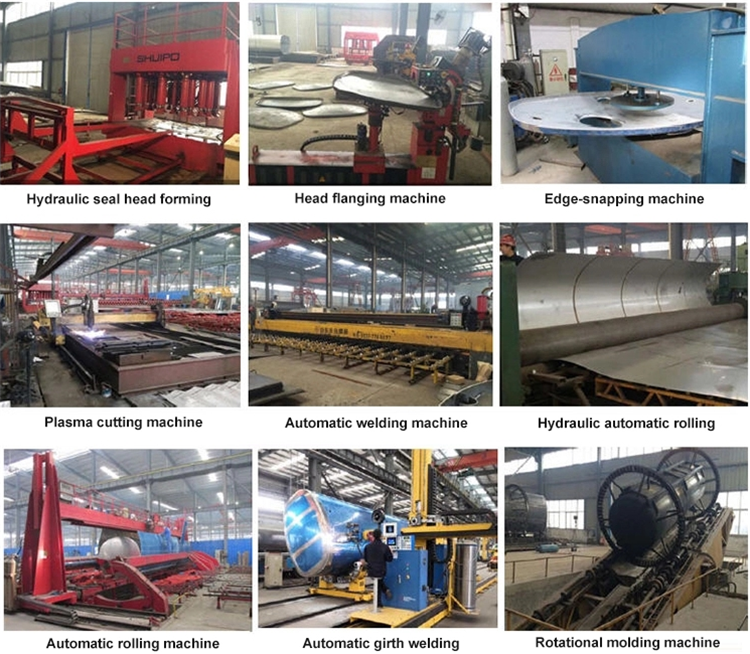

Production equipment



main products

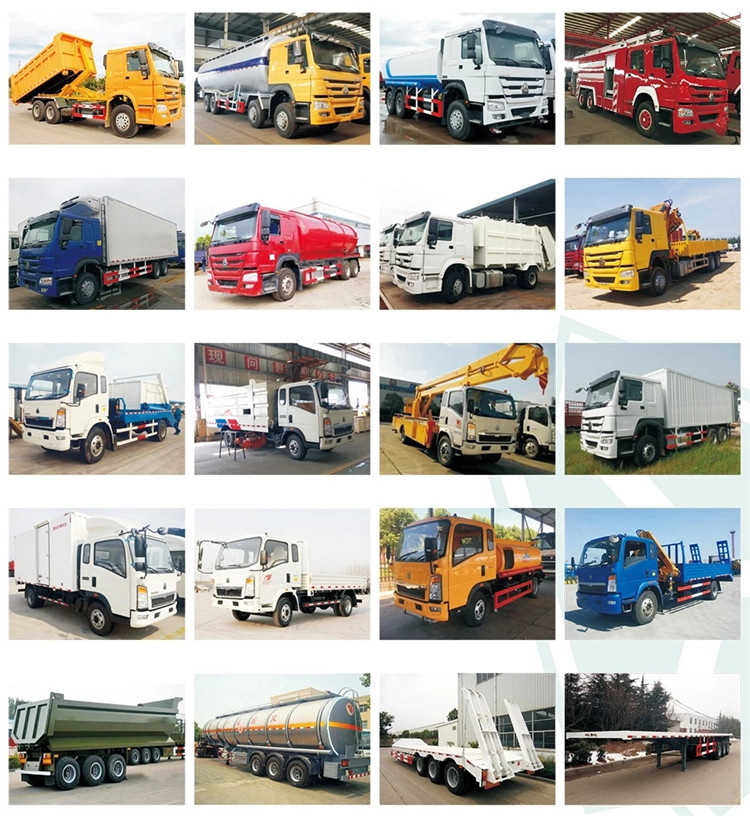

Our leading products includeOver 300 TrucksSuch as sprinkler trucks, sewage suction trucks, garbage trucks, road sweepers, oil tankers, chemical liquid trucks, concrete mixer trucks, liquefied petroleum gas tank trucks, dump trucks, refrigerated trucks, etc. We registered the trademark "CHENLIWEI" and the product code is "CLW". We have strong technology, perfect testing, advanced equipment, reliable quality and flexible business methods.
