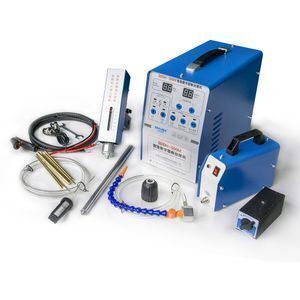

portable edm drilling machine new design

Product details
Name:factory price hot sale super drill machine;Condition:New;
Application:remove taps;Warranty:1 Year;
Type:portable spark machine;After-sales Service Provided:Overseas service center available;
Delivery Detail:0 days after payment;Brand Name:SHANDA;
Other name:spark erosion edm machine;Single package size:35X47X35 cm;
Color:Blue;Place of Origin:Jiangsu China (Mainland);
Selling Units:Single item;Key words:electrical spark erosion machine;
Single gross weight:16 KG;After-sales Service Provided:Online support,Video technical support,Free spare parts;
Product Description

Working principle

Use workpiece and electrode contact broken tap from short-circuit spark, corrosion broken tap, remove broken tap bit by bit.

Application

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine

Operating feature

1.Automatically feed processing
2.Using water as working fluid, economic and convenient
3.220 v power supply, convenient connection
4.Automatic deep processing control
5.Built-in imported high-pressure electromagnetic pumps, water supply convenient and quick, 2 seconds after launch out of the water
6.Cooling fan, can guarantee tool pilot time continuous working more than 12 hours
7.Working head can be arbitrary Angle adjustment

Small Size edm machine remove broken screw drill machine
Modle
SD-500M
Input
AC220V 50/60HZ
Power
600W
Voltage
80V
Electrode range
0.5mm-10mm
Manual travel
310mm
Automatic travel
60mm
Processing speed
≈1mm/min
Size
380×200×320mm
Weight
15KG
Feature
It can quickly remove taps, drill bits, screws, reamers, plug gauges and other tools or cutters that can be broken in any size workpiece.

Or in the hardened steel, such as cemented carbide, copper and other metal materials, processing small hole (wire cut hole) or marking without precision requirement.

The choice of electrode (broken tap, screws, for example)

According to the size of the broken item to select suitable electrode shape and size of electrode materials,and choose brass wire, brass rod or copper tube, etc

Break things
Standard
Recommend electrode
Notes
  screw
M3
Φ1.5
short electrode and reduce the jitter
  screw
M4
Φ2.0
  screw
M6
Φ3.0
  screw
M8
Φ4.0
  screw
M10
Φ5.0
  screw
M12
Φ6.0
  screw
M14
7×2
sheet electrode
  screw
M16
8×2
  screw
M20~30
10×2
the tap above M20 can be processed by several times
bolt
M3~M20
Recommended method: make a "-"shape deep groove and screw down with screwdriver
Welding Effect

Electrolytic Corrosion principle, no damage to work-piece

1.Remove broken in workpiece diameter tap, drill, reamer, tools/tools such as screw, plug gauge;
2.can be working in any size, shape of workpieces
3.Various angles,different shapes from surface of electrodes,processing multiple holes
4.Processing no precision requirement hole
5.Especially suitable for difficult to processing large workpieces in edm machine

Remove Broken taps

short electrode and reduce the jitter

Remove broken screw

the tap above M20 can be processed by several times

Field Processing
Certifications

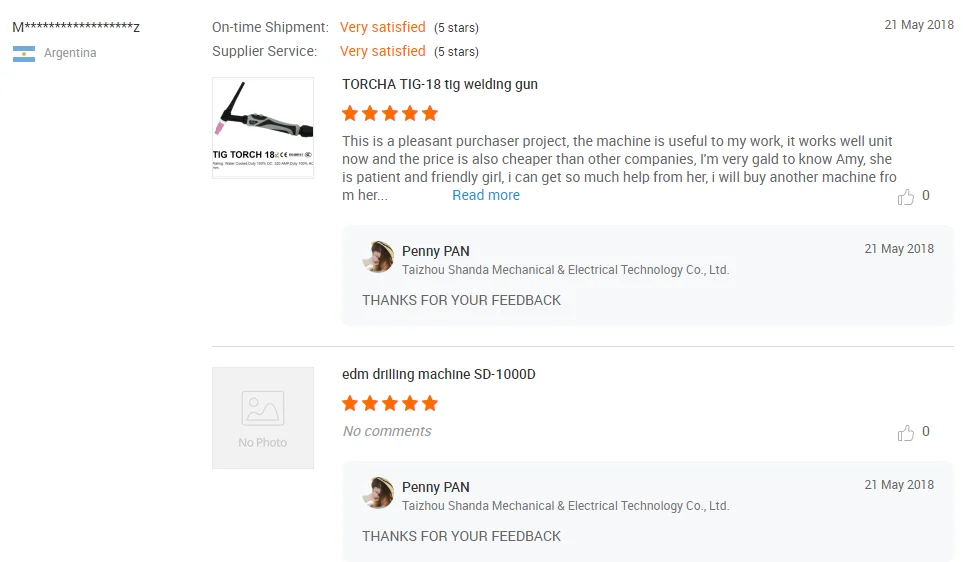

Customer evaluation
