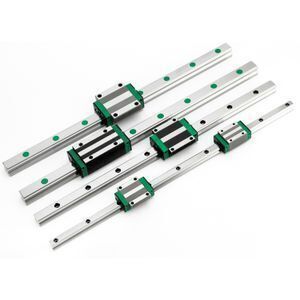

Flange Tap Hole Tyoe Motorized Linear Guide Linear Motion Rail for CNC Machine

Supplier: Shanghai PrimoPal Precision Motor Co., Ltd.
Region: Shanghai, China
Contact: Mr George Chang
Price: $21.00 /set
Min. Order: 1 set

Click here to contact

Product details

MOQ:	1 PCS;	Place of Origin:	CHINA;
Product name:	Flange Tap Hole Tyoe Motorized Linear Guide Linear Motion Rail;	Machinery Test Report:	Provided;
Place of Origin:	Shanghai China;	Warranty:	1.5 years;
Certification:	IS09001/CE;	Brand Name:	primopal,primopal;
Video outgoing-inspection:	Provided;	Feature:	Smooth Motion;
Application:	CNC machine, automatic system,et;	Model Number:	QHW-CA/HA Series;
Payment:	TT Paypal Weston Union VISA;	Port:	Shanghai;
Packaging Detail:	Flange Tap Hole Tyoe Motorized Linear Guide Linear Motion Rail for CNC Machine Packing: Carton / Pallet;	Marketing Type:	Ordinary Product;
Material:	Chrome steel,Chrome steel;	More service:	OEM/ODM;
Payment Terms:	D/A,D/P,T/T,Western Union,MoneyGram;	Supply Ability:	200000 Piece/Pieces per Month stepper motor;
Local Service Location:	None;	Warranty of core components:	1 Year;
After Warranty Service:	Video technical support,Online support;	Condition:	New;
Core Components:	Bearing,linear guide block;	Showroom Location:	None;
Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,CNC machine;

Flange Tap Hole Tyoe Motorized Linear Guide Linear Motion Rail for CNC Machine

Product Name	PHB Linear Guideway
Material	Bearing Steel

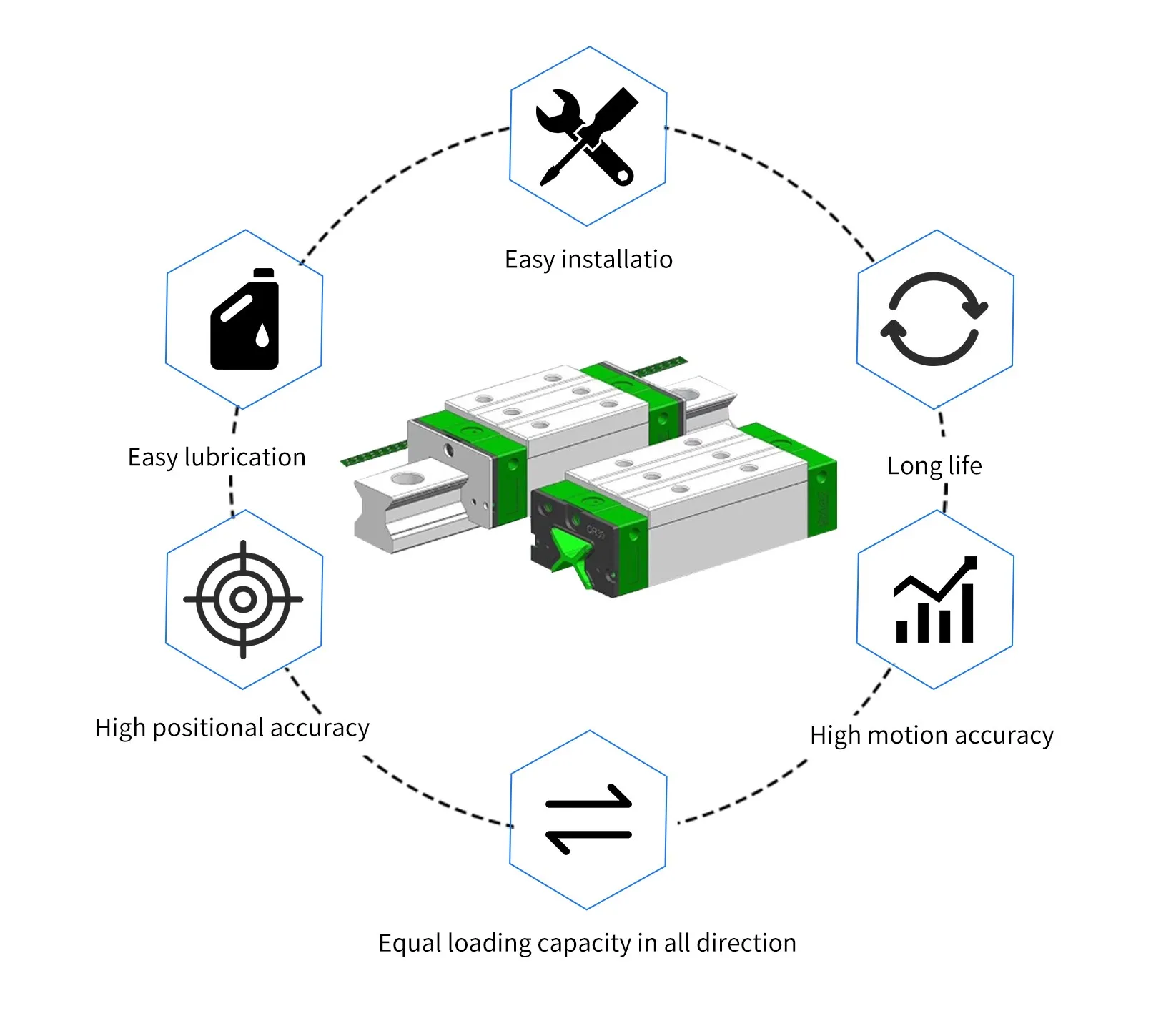

Advantage	High positioning accuracy, High Rigidity,Easy Maintenance, High Speed Performance, Zero Clearance High Efficiency
Delivery Details	3-30 Days After Order
Applications	Automation Industry, Semiconductor Industry, Industrial Machinery, Medical Industry, Solar Equipment, Tool Machinery, Machine tool industry,numerical control,electronic industry

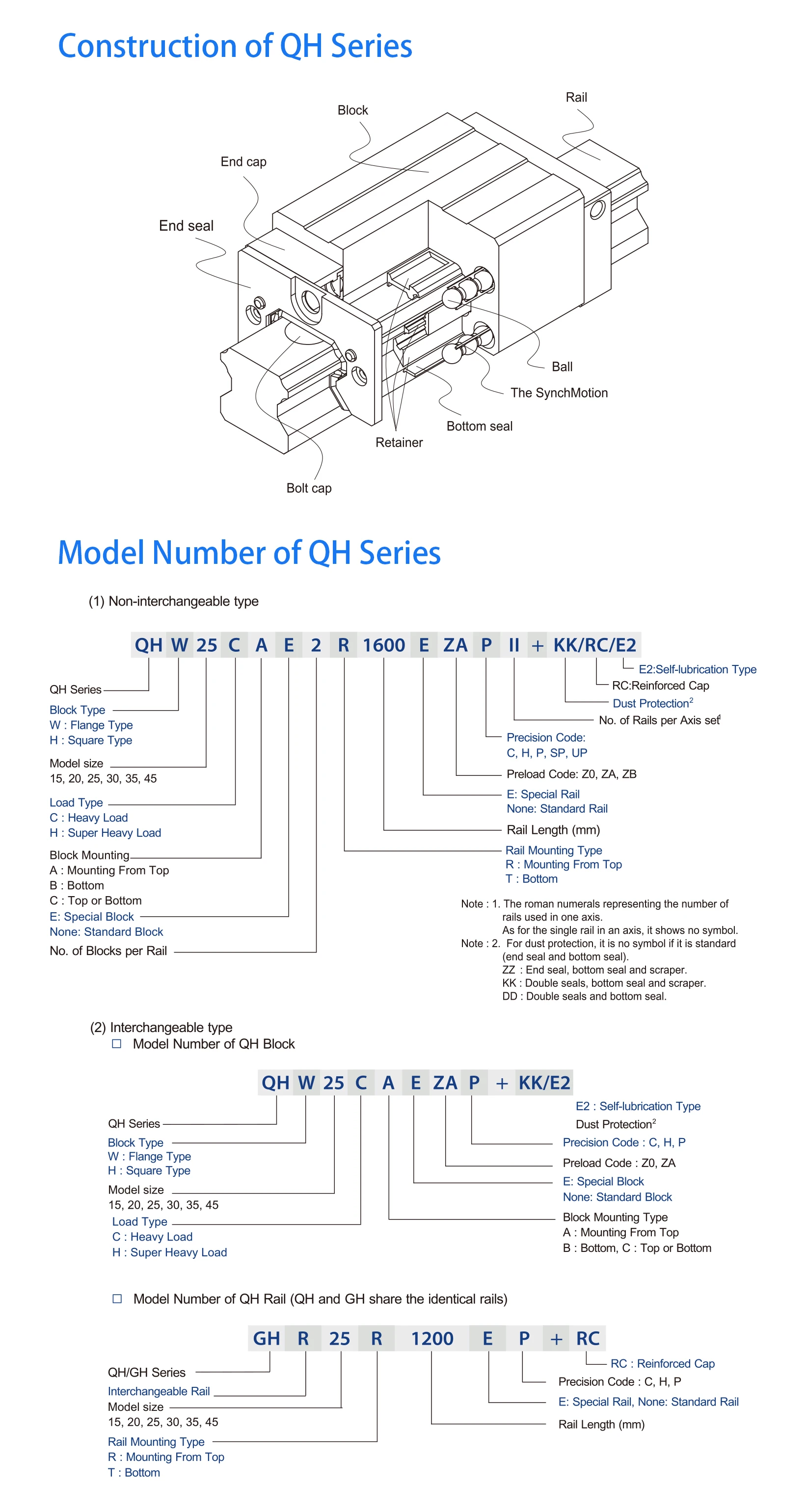

Features of QHSeries

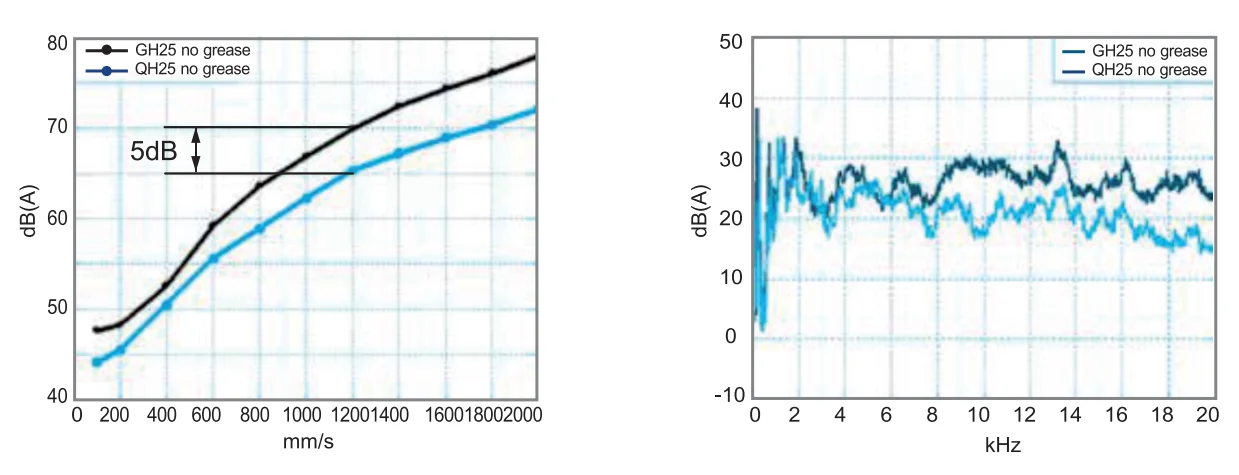

(1) Low Noise Design

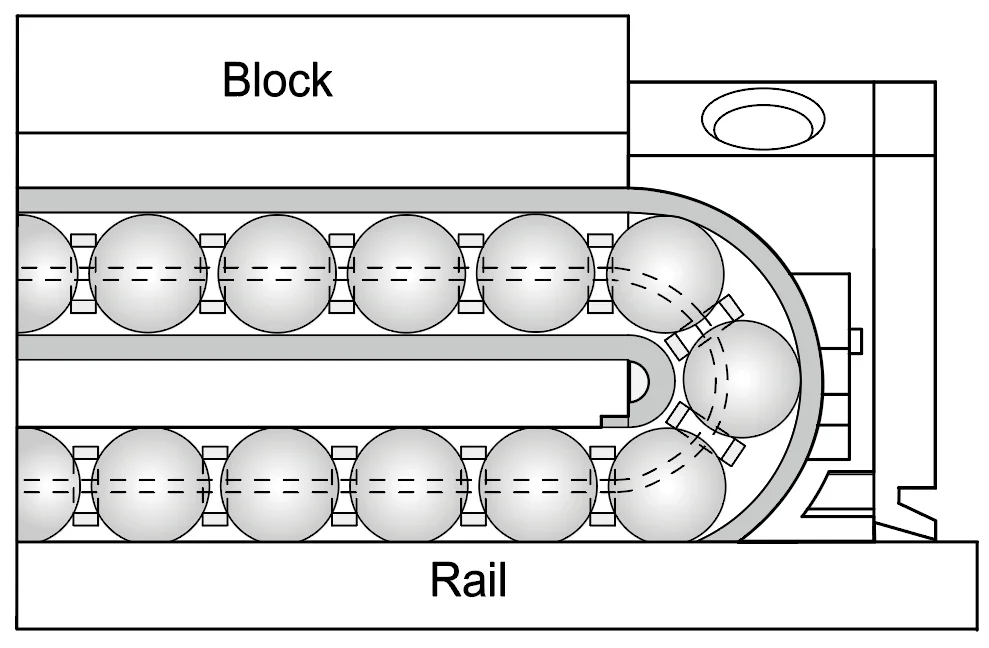

With SynchMotior'” technobgy, ralling elements are interposed between the partitions of SynchMotion'” to provide impoved circulation, Due to the elimination of,pontact between the raling elements, collision noise and sound lkeves are drastically reduced.

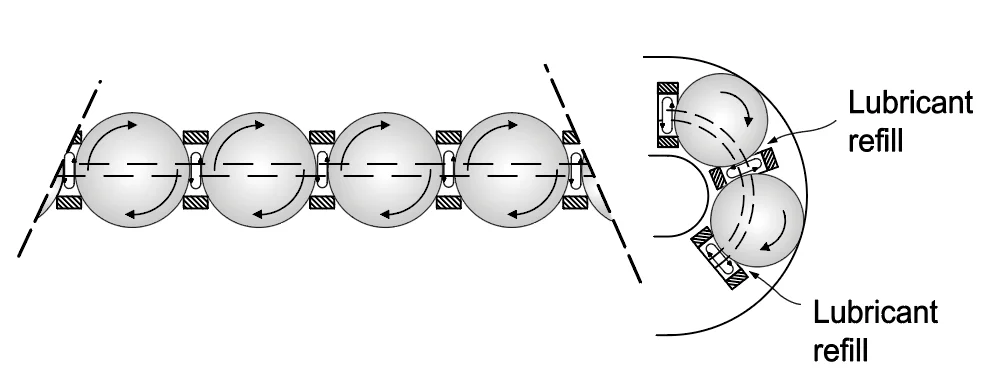

(2) Sei-Lubricant Design
The partition is a grouping of hollow ringHike structures formed with a through hoke to facilitate circulation of the lubricant, Because of the special lubrication path design, the lubricant of the partition storage space can be refilled. Therefore, the frequency of lubricant refilling can be decreased.
The QH-series linear guideway is pre-lubricated, Performance testing at a 0.2C (basic dynamic bad) shows that after running 4,000km no damage was apparent to either the rolling elements or the raceway.

(3) Smooth Movement
In standard linear guideways, rolling elements on the load side of the guide block begin roling and push their way through the raceway, When they contact other roling elements they create counter-rotational friction, This results in a great variation of rolling resistance. The QH linear guideway, with SynchMotion "' technology prevents this condition. As the hlock starts to move, the rolling elements hegin mlling consecutively and remain separated to prevent contact with one another thus keeping the element's kinetic energy extremely stable in order to effectively reduce fluctuations in roling resistance.
(4) High Speed Performance
The SHAC-QH series offers excellent high-speed performance due to the partitions of the SynchMotion TM
structure. They are employed to separate the adjacent bals
thereby resulting in low rolling traction and the metallc friction between adjacent bals is eliminated.
