Inexpensive Paper Film Stickers Label Flexographic UV Printing Machine

Supplier: Ruian Maoyuan Machine Co., Ltd.
Region: Zhejiang, China
Contact: Mr John Yang
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Printing length:	177.8-355.6 mm;	Package Preview:	;
Max. rewinding diameter:	600 mm;	Voltage:	3 Phase 4Wire 380V 50HZ;
Payment Terms:	L/C,T/T;	Precision:	±0.15mm;
Key Selling Points:	Multi Color;	Video outgoing-inspection:	Provided;
Overall Dimensions(LxWxH):	2000x 1100 x 2200mm;	Local Service Location:	Pakistan,India,UAE;
Weight:	1900kg,1900KG;	Usage:	Label Printer;
Warranty:	1 Year;	Brand Name:	Benteac;
Condition:	New;	Marketing Type:	New Product 2019;
Automatic Grade:	Automatic;	After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Max. unwinding diameter:	600 mm;	Warranty of core components:	1 Year;
Showroom Location:	Pakistan,India,UAE;	Printing speed:	10-60 m/min;
Plate Type:	Letterpress;	Machinery Test Report:	Provided;
Core Components:	PLC;	Packaging Detail:	Inexpensive Paper Film Stickers Label Flexographic UV Printing Machine is firmly wrapped in wooden case.With this machine,we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Menu, Inverter Menu and Electrical Schematic Diagram.;
Max. printing width:	320 mm;	Max. web width:	320 mm;
Certification:	CE;	Port:	Ningbo;
Color & Page:	Multicolor;	Place of Origin:	Zhejiang China;
Type:	Inexpensive Paper Film Stickers Label Flexographic UV Printing Machine,Flexographic Printer;	Dimensions(LWH):	200011002200mm;
Supply Ability:	10 Set/Sets per Year;

Product Description

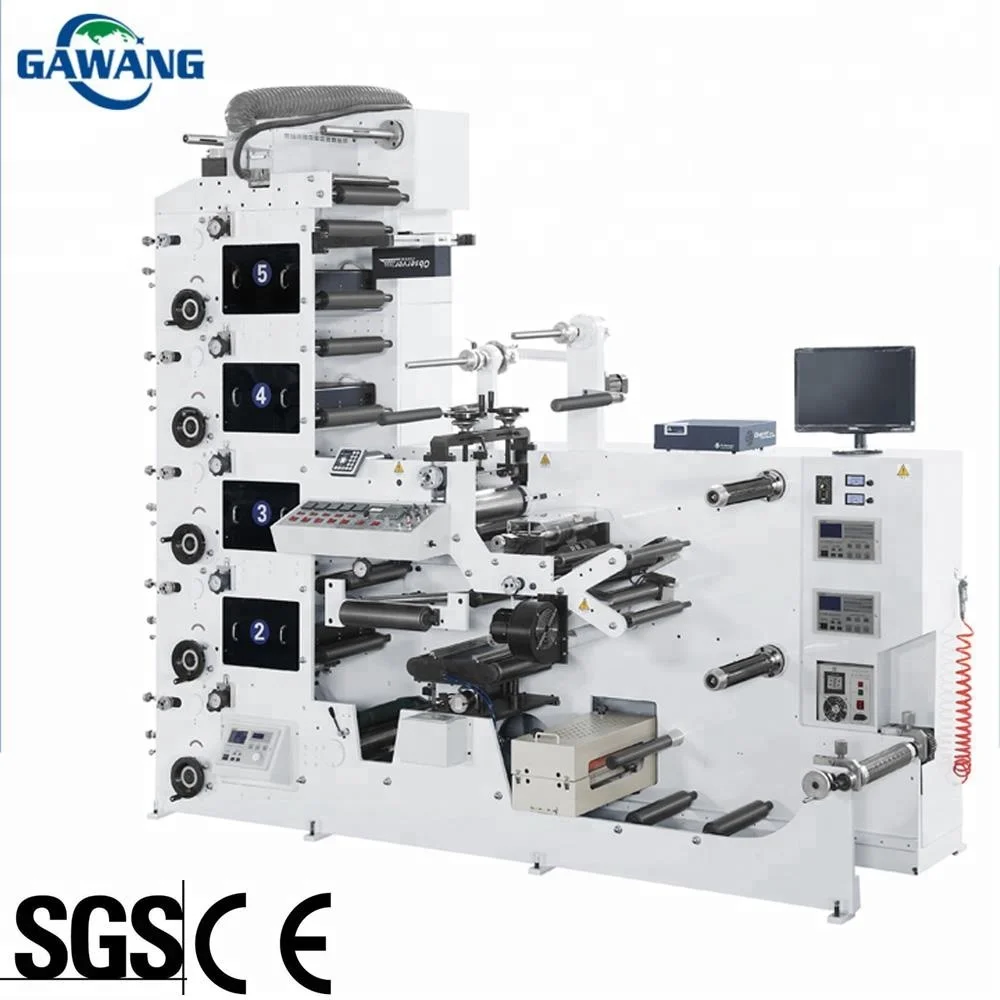

Inexpensive Paper Film Stickers Label Flexographic UV Printing Machine

Adopt high quality ceramic anilox cylinder to transfer the ink.

Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch.

Unwinding adopts auto tension controller.

Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.

Each printing unit equips with IR dryer.

Equipped with web guide for tracking.

This machine with one die-cutting station ,which makes printing and die-cutting can be finished in one process.

The ink rollers will be separated from the printing rollers,and keep running when the machine stops.

The main machine inverter is imported.

It equipped with 3'' air expanding shaft on unwinding/rewinding section.

All the rollers are deal with thermal treated.

The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump.It is an ideal machine for printing note and top-grade adhesive label.

Printing Speed	10-60 m/min
Max.Web Width	320mm
Max.Printing Width	320mm
Max. Unwinding Diameter	600mm
Max. Rewinding Diameter	600mm
Printing Length	177.8-355.6mm
Voltage	3 Phase , 4 Wire , 380V , 50HZ
Precision	±0.5mm
Overall Dimensions	200011002200mm
Weight	3000Kg

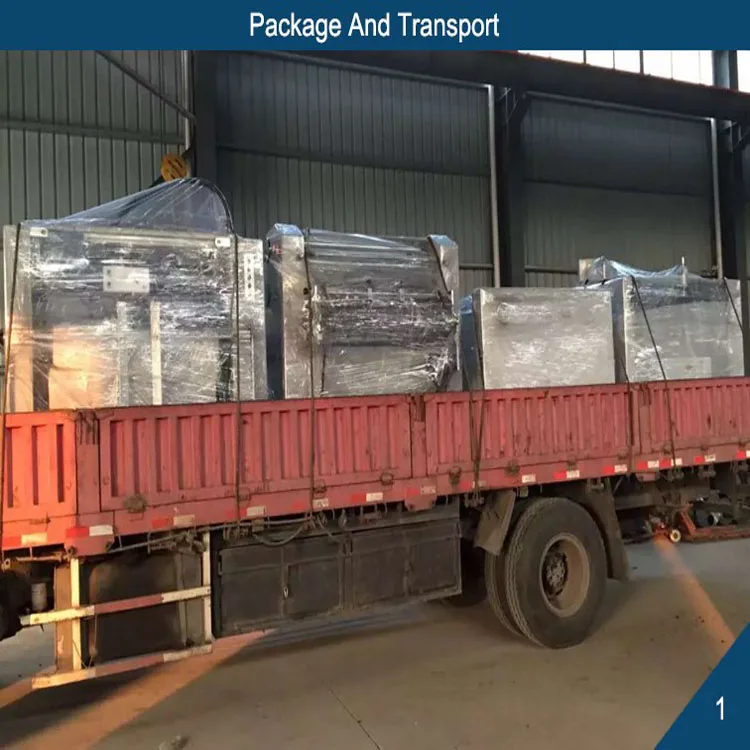

Packaging & Shipping

Inexpensive Paper Film Stickers Label Flexographic UV Printing Machine is firmly wrapped in wooden case.With this machine,we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Menu, Inverter Menu and Electrical Schematic Diagram.

Laminating machine

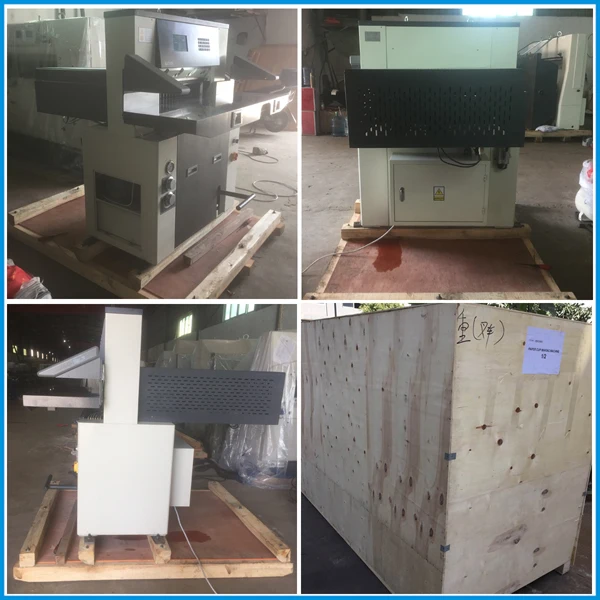

Packing

Packing in the Contaner

Our Services

Company Information

Our company was found in 2005,which is specialized in packing machinery of paper and plastic.We have our own factory so that it is easy to meet our customers' needs.All of our products passed the CE and SGS certification.

ALL OF OUR PRODUCTS
PASSED THE AND SGS
CERTIFICATION

Manufacture and exporting all kinds of paper and plastic packing machine,such as slitting and rewinding machine,flexo printing machine gravure printing machine,paper cutting machine,A4 paper cutting machine,rotary paper sheeting machine,paper core making machine,paper core cutting machine,coating and laminating machine and plastic bag making machine.

We have a young,motivated and excellent team,which is led by packing
machine experts.Our philosophy is "Professional lead you to success ".

FAQ

Are you trading company or manufacturer?

We are manufacturer, and also provide the business solution to all the friends.

Do you have quality certificate?

Yes we have CE, SGS etc.

What's the delivery time?

Around 20~30days, however, based on order.

Can you help us to buy other goods?

Sure of that, it is our honor to work for you, and control the goods quality.

what's payment terms ,trade terms you accept ?

Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.

does it easy to operate and what can i do if it doesn't work?

First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.

if the machine's spare parts broken ,where can i get ?

We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
