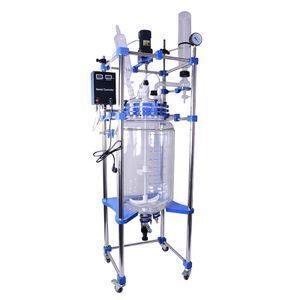

100 liters lab double jacketed glass reactor with borosilicate 3.3

Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Admin Zhang
Price: $2228.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Shanghai / Qingdao / Tianjian / Ningbo / Guangzhou / Dalian;	Packaging Detail:	Wooden case;
Condition:	New;	Jacketed volume:	18 liters;
Applicable Industries:	Pharmaceutical, Lab, Scientific research;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Weight:	130kg;	Stirring speed:	0-450rpm;
Warranty:	1 Year;	Volume:	100 liters;
Key Selling Points:	Long Service Life;	Voltage:	110/220/380;
Video outgoing-inspection:	Provided;	Glass material:	high borosilicate glass 3.3;
Capacity:	100 liters;	Package Preview:	;
Type:	Reaction Kettle;	Local Service Location:	None;
Frame Material:	304 Stainless steel;	Vacuum degreee:	-0.098Mpa;
Stirring diameter:	15mm;	Machinery Test Report:	Provided;
Certification:	CE ISO;	Marketing Type:	New Product 2020;
Showroom Location:	None;	Brand Name:	NANBEI;
Power:	250W;	Core Components:	Pump;
Automatic Grade:	Automatic;	Supply Ability:	8000 Set/Sets per Month;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Stirrer type:	Anchor Agitator;
Product name:	100 liters double jacketed glass reactor;	Pressure:	Negative;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Credit card;	Dimension(LWH):	6106102400mm;
Place of Origin:	Henan China;	Warranty of core components:	3 years;

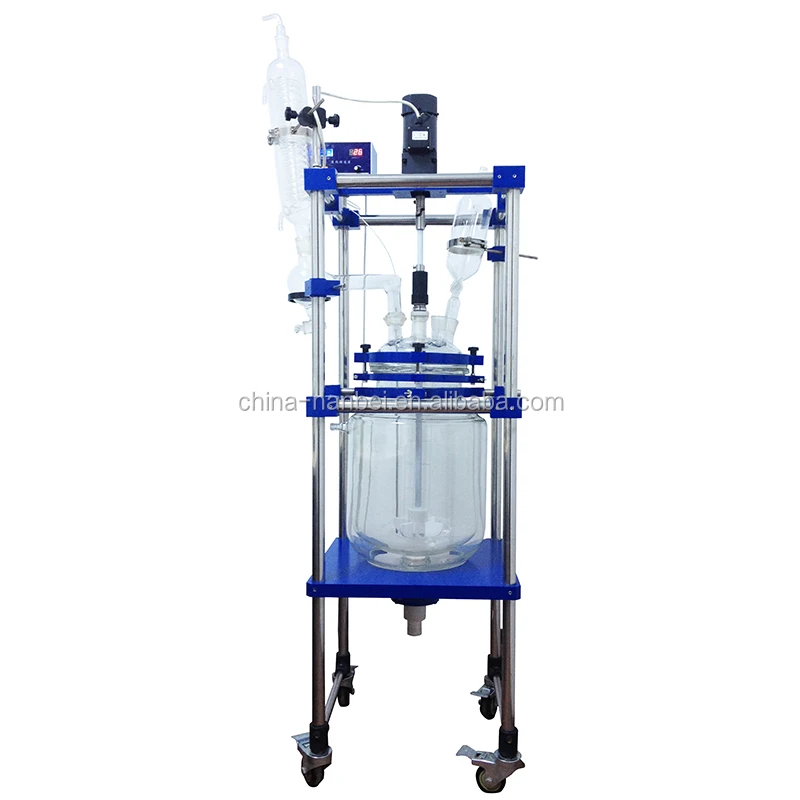

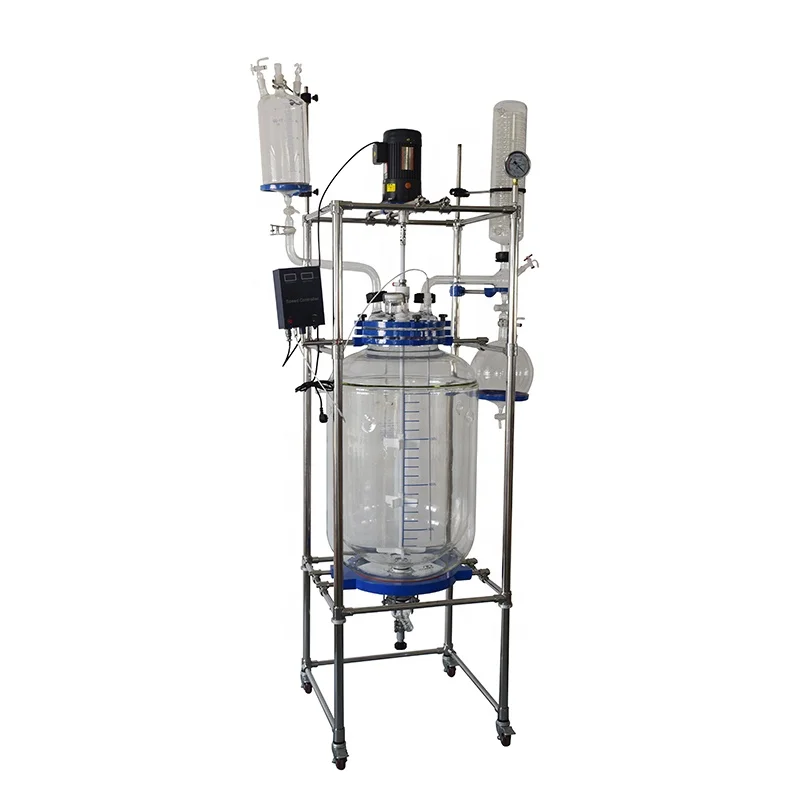

100 liters lab double jacketed glass reactor

Our Product

Description

The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body.

The double-layer glass reactor has the main capacity of 1L-200L.

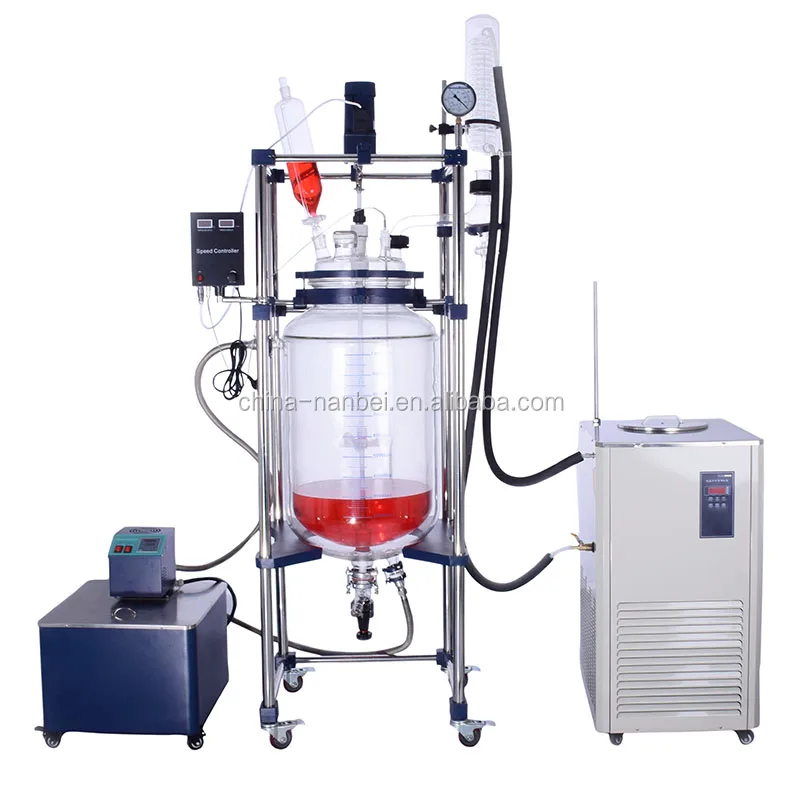

It can be used together with the vacuum pump to improve the working efficiency; the glass condenser can be used with water chiller to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer.

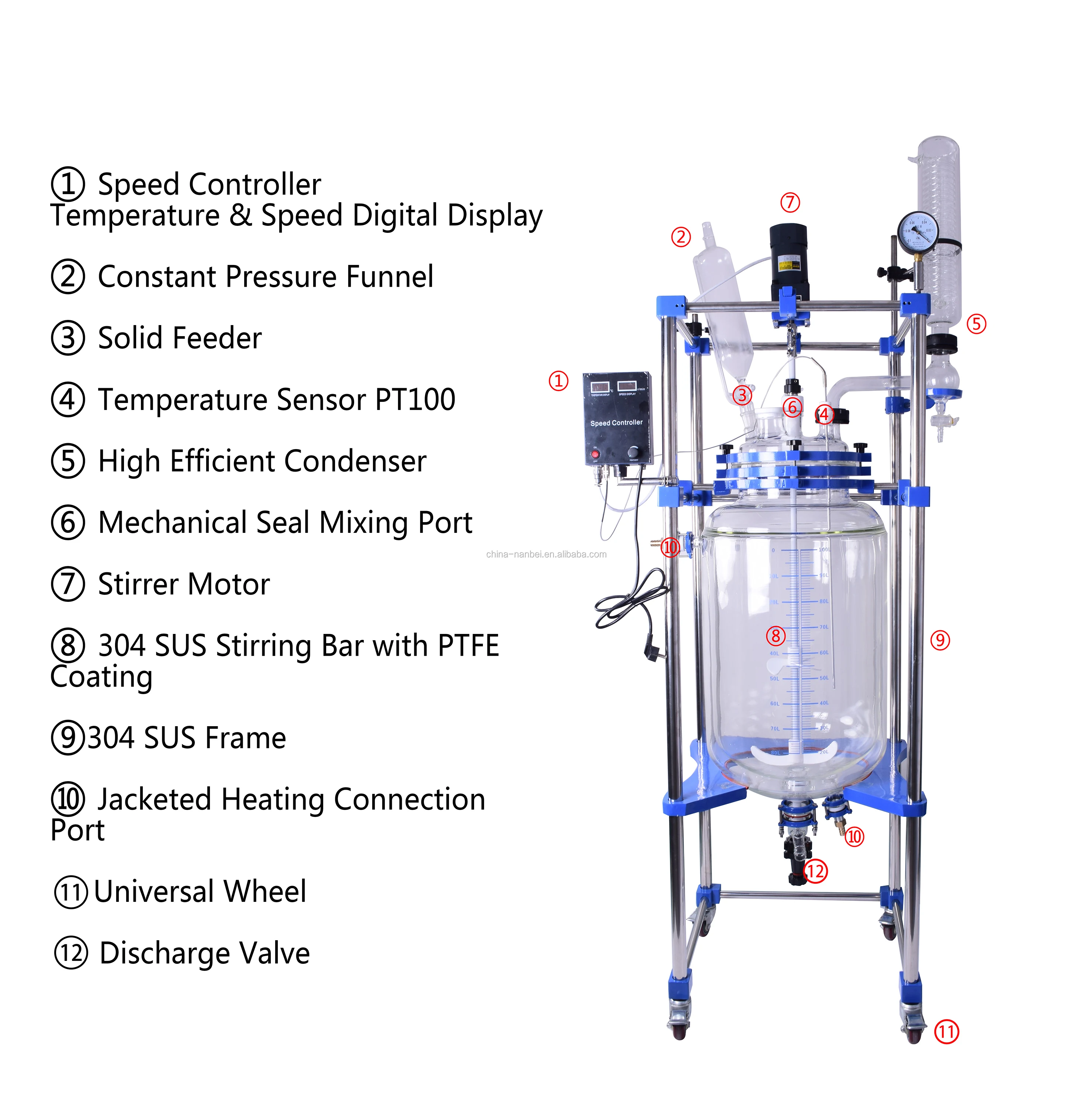

Structure for Glass Reactor

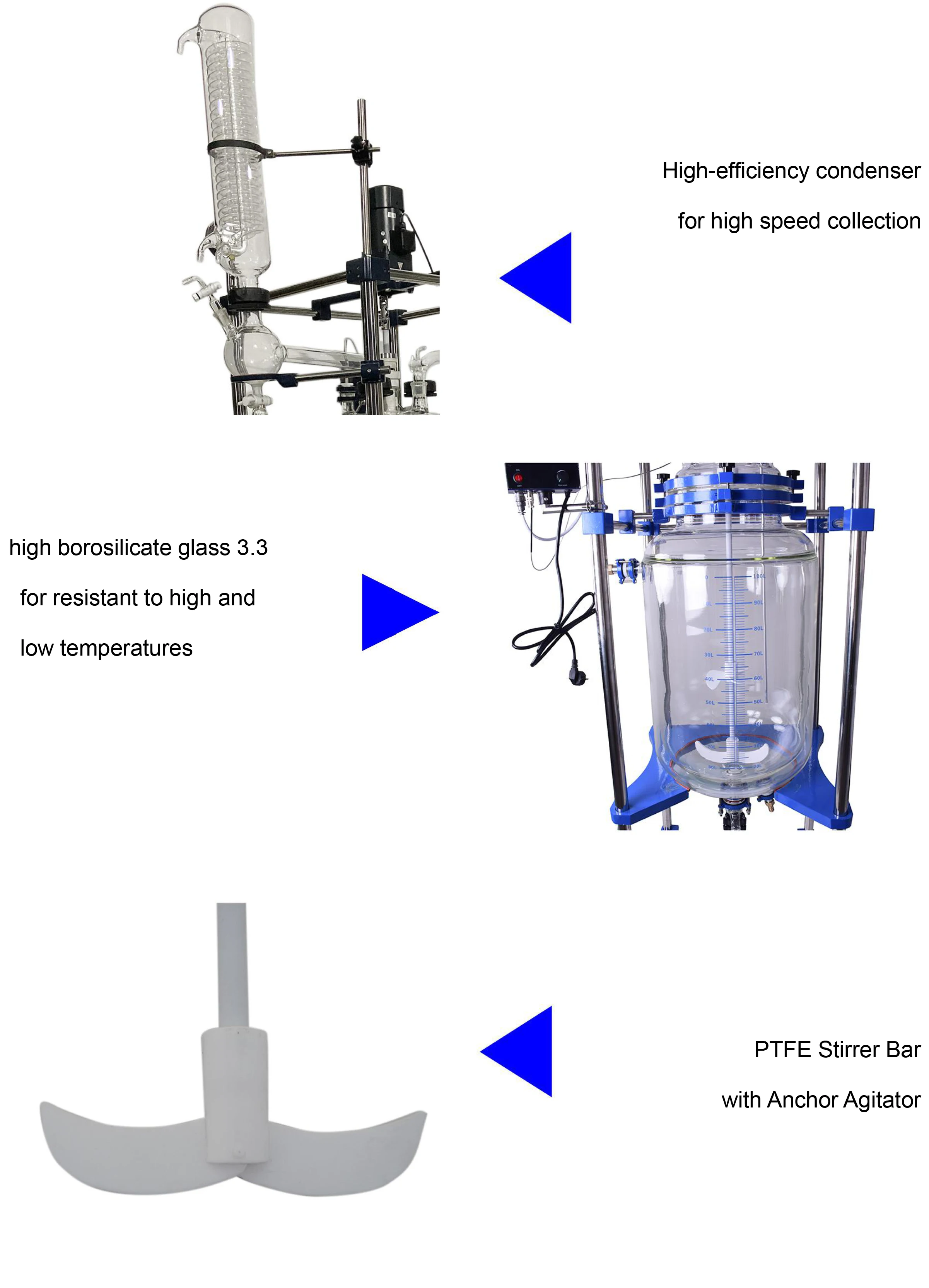

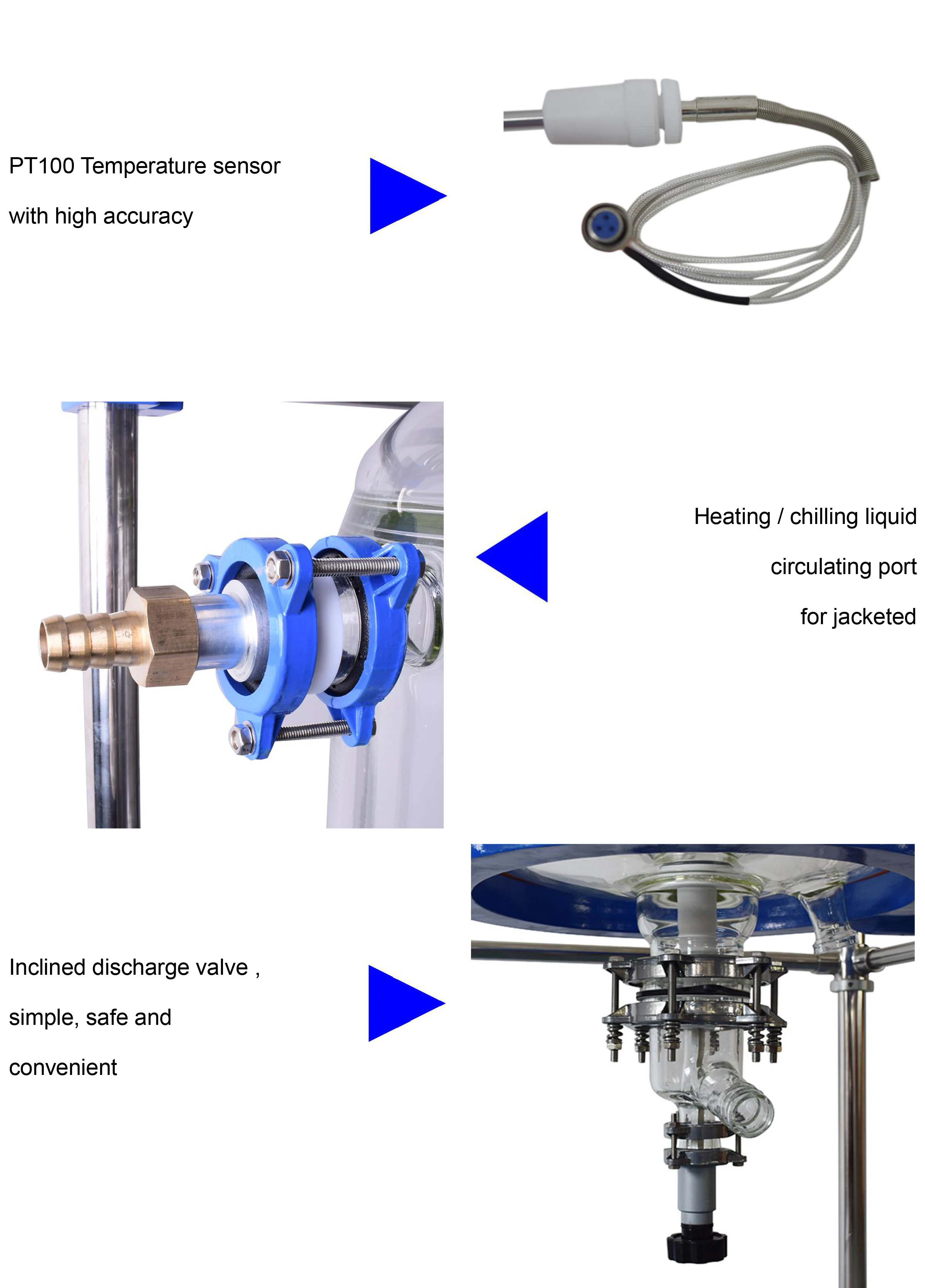

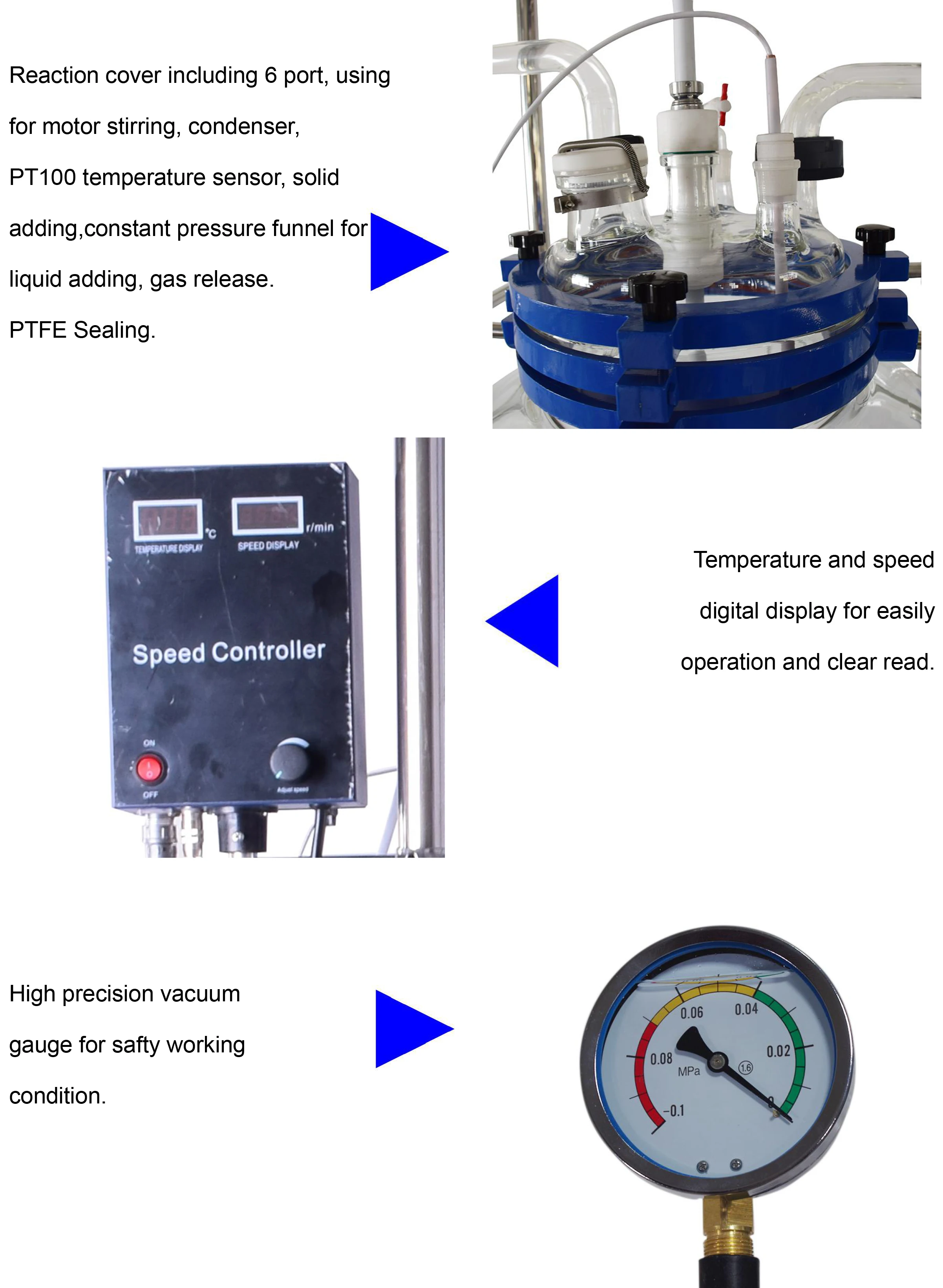

Details Photo for Jacketed glass reactor

Technical data

Model	NB-10L	NB-20	NB-30L	NB-50L	NB-100L
Glass Material	GG-17	GG-17	GG-17	GG-17	GG-17
Frame Material	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel
Fittings Material	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel	304 Stainless steel

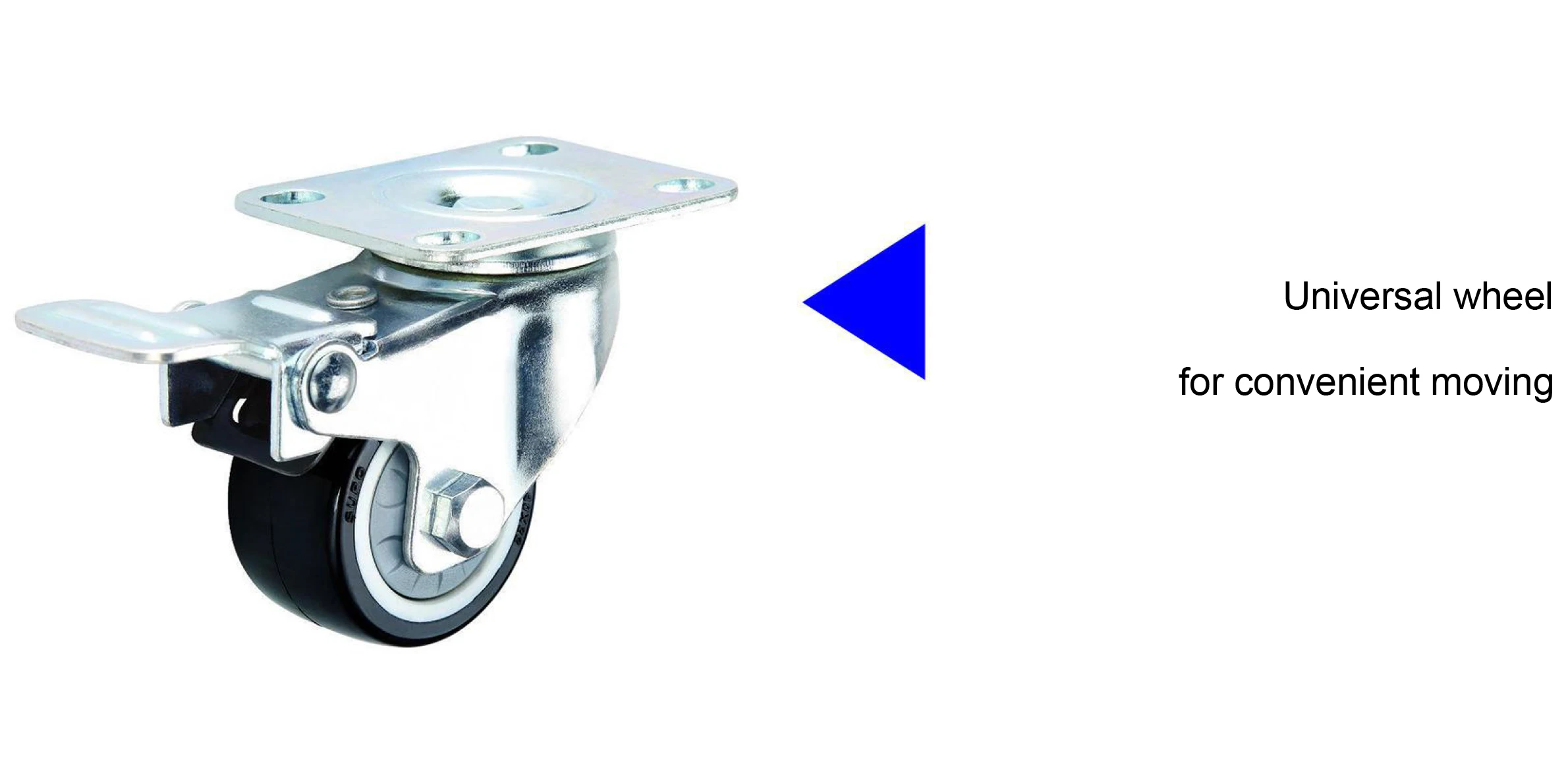

Moves	Brake Caster	Brake Caster	Brake Caster	Brake Caster	Brake Caster
Reaction bottle capacity	10L	20L	30L	50L	100L
Jacketed Capacity	6L	8L	10L	12L	18L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	Six port	Six port	Six port	Six port	Six port
Discharger port distance to ground	450mm	450mm	450mm	450mm	450mm
Temp. range	-80-250℃	-80-250℃	-80-250℃	-80-250℃	-80-250℃
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-450rpm	0-450rpm	0-450rpm	0-450rpm	0-450rpm
Stirring diameter	12mm	12mm	12mm	12mm	15mm
Stirring power	90W1/3	120W1/3	120W1/3	120W1/3	250W1/3
Coltage(V/Hz)	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Dimension(mm)	5205202000	5605602100	7605602300	7605602450	6106102400
Packing size(mm)	1370590800	1480660810	1720680850	1720680850	1900700870
Packign weight(KG)	68kg	80kg	88	92	125

Other product

We also can supply related product, such water chiller, heating bath, vacuum pump.

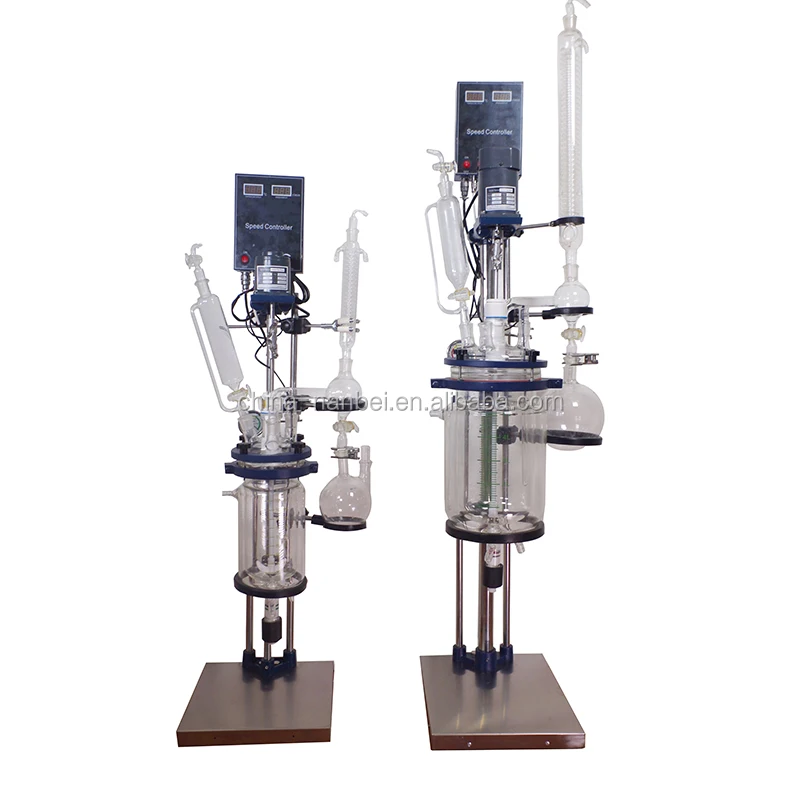

1-5 liters glass reactor	10-80 liters glass reactor	200 liters glass reactor
