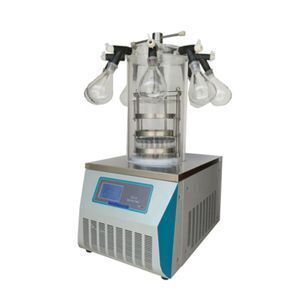

Vacuum laboratory freeze drying machine price

Supplier: Zhengzhou Nanbei Instrument Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Admin Zhang
Price: $2490.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 YEAR;	Certification:	ISO,CE;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,Chemical digital lab used freeze drying machine;	Voltage:	220v;
Power(W):	700w;	Packaging Detail:	Export standard packaging, Vacuum laboratory freeze drying machine price;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Vacuum laboratory freeze drying machine price;	Freeze drying area:	0.12m2;
Brand Name:	Nanbei;	Port:	Any port in China;
Flask:	1000ml,500ml ,250ml ,100ml;	Supply Ability:	1000 Set/Sets per Month Vacuum laboratory freeze drying machine price;
Type:	Freeze dryer,Manifold top press freeze drying machine;	Condenser temperature:	-55℃ (-80 ℃ optional);
Dimension(LWH):	460625(370+465) mm;	Place of Origin:	Henan China;
Applicable Industries:	laboratory;	Condenser capacity:	3-4 L /24h;
Usage:	Freeze drying chemicals, fruits, vegetable, meet...;	Manifold:	with 8 ports;
Key Selling Points:	Easy to Operate;	Weight:	41kg;
Condition:	New;	After-sales Service Provided:	Free spare parts,Engineers available to service machinery overseas;

Vacuum laboratory freeze drying machine price

Our Product

1.Feature and Description

General Introduction

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

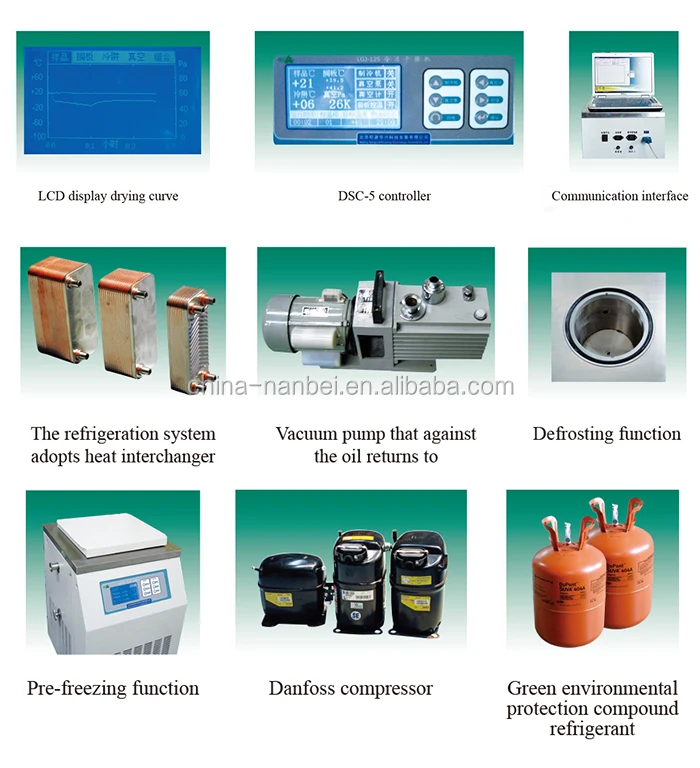

Main features

1. CFC Free refrigeration

2. LCD display drying curves, English interface

3. Big opening of condenser, condenser with pre-freezing function

4. low noise compressor, good efficiency, long service life

5. Condenser and operation panel are all stainless steel

6. Drying Chamber with organic glass is safe and visible

7. Shelf and tray are stainless steel, tray spacing can be customized

8. Small volume , easy and convenient operation

9. Nitrogen valve is optional

10. Eutectic point test device is optional

11. Communication interface is optional

12. Cascade refrigeration is optional , applied for -80℃device

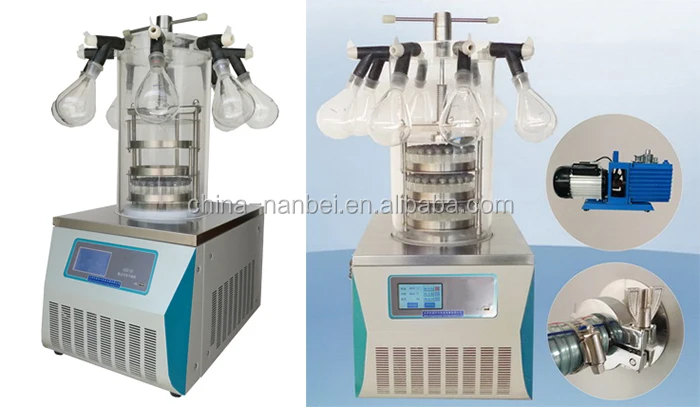

2.Picture for Our product

Production picture of freeze drying machine:

3.Usage and Application

LGJ-10 Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top equipment.

4.Technical data

Freeze drying area	0.08m2
Condenser capacity	3-4 L /24h
Condenser temperature	-55℃ (-80 ℃ optioanl)
Vacuum degree	< 10 Pa
Material tray	¢180mm, 3 layers
Bulk capacity	0.8 L, 10mm thickness
Vial capacity Φ12mm	560 pcs
Vial capacity Φ16mm	285 pcs
Vial capacity Φ22mm	165 pcs
Style of press	By hand
Manifold	with 8 ports
Flask	1000ml, 500ml, 250ml, 100ml
Cooling	Air,draughty,ambient temperature ≤25℃
Voltage	220V ,50 Hz; 110V, 50Hz; 110V, 60Hz
Power	700W
Host dimension	460625(370+465) mm
Host weight	41 kg
