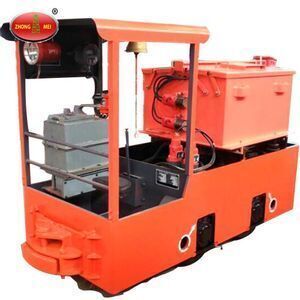

Railway Axle Electric Locomotive For Line Service

Supplier: Shandong China Coal Group Co., Ltd. Import & Export Branch
Region: Shandong, China
Contact: Ms Azure He
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden cases or as your requirement for Railway Axle Electric Locomotive For Line Service;	Speed (km/h):	20km/h;
Brand Name:	China Coal;	Supply Ability:	1000 Set/Sets per Month Railway Axle Electric Locomotive For Line Service;
Service & Application:	Mucking in mining & tunneling;	Dimensions (L x W x H) (mm):	446013401590;
Battery volt rating (V):	192(440Ah);	Horsepower:	2*22kw;
Fuel Type:	Electric;	Place of Origin:	Shandong China;
Coupler height over Steel rail (mm):	320/430;	Braking method:	Mechanical and electrical;
Transmission:	Single level Spur gearing;	Wheel diameter over tread:	680;
Payment Terms:	L/C,D/A,T/T,Western Union,Paypal, Alibaba Trade Assurance;	Min Curve radius (m):	7;
Port:	Qingdao,Shanghai,Ningbo,Shenzhen;	Wheelbase (mm):	1100;
Track gauge (mm):	900;	Controller:	AC frequency conversion;

Product Description

Introduction of Railway Axle Electric Locomotive For Line Service

locomotive is AC-DC transmission diesel locomotive which can undertake passenger and freight traction transport on trunk lines, secondary trunk lines in mountain areas and railways in extremely cold areas. The locomotive is divided into three types: 1. mountain type double heading passenger and freight diesel locomotive; 2. cold-proof type double heading passenger and freight diesel locomotive; 3. standard type double-cab passenger and freight diesel locomotive. DF7D diesel locomotive is equipped with 12V240/275 series diesel engine and its main components and parts are interchangeable with 16V240/275 series diesel engine of current trunk-line prime type passenger and freight diesel locomotive. DF7D diesel locomotive possesses excellent economy and advanced technology. Equipped with specially designed bogie, the mountain type locomotive has good dynamic curve negotiation performance upon service on small curves in mountainous areas. Equipped with reinforced cold-proof facilities, the cold-proof type locomotive is very applicable to extremely cold areas in the northeast.zmwm07

Parameter of Railway Axle Electric Locomotive For Line Service

Diesel locomotive,coal mine locomotives,battery powered electric locomotive

Basic technical data	140
Brand	China Coal
Rail gauge	1 435 mm
Traction system	3 kV
Locomotive body lenght	14 500 mm
Width	2 950 mm
Height with pantographs lowered	4 500 mm
Fixed wheelbase	3 330 mm
Total wheelbase	11 500 mm
Distance between pivots	8 170 mm
Minimal curve radius	120 m
Service weight	82 t
Sustained traction	110 kN
Hourly traction	140 kN
The maximum tensile strength	212 kN
Permanent speed	66,5 km/h
Maximum speed	120 km/h
