Crane Clip/Rail Clamp For Sale Rail Lifting Clamp

Supplier: Shandong China Coal Group Co., Ltd. Import & Export Branch
Region: Shandong, China
Contact: Ms Azure He
Price: $1.00 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Light Rail Model:	TG30/43/50;	Samples:	Samples are availible;
spring washer:	60Mn,60si2Mn;	Port:	Qingdao,Ningbo,Shanghai,Shenzhen;
Brand Name:	China Coal;	Place of Origin:	China;
surface:	plain, black, zinc plated, HDG, etc;	Name:	Rail Clamp;
Material:	Q235 carbon steel,Steel;	Usage:	railway, crane rail, or other rails;
Delivery:	within 15 days after got payment;	Type:	Sleepers;
Heavy Rail Model:	QU70/80/100/120;	Packaging Detail:	bulk in carton, then on pallet, or according to customers' requirement for Railway clamp;
Supply Ability:	500000 Piece/Pieces per Month Railway clamp;	Dimensions (L x W x H) (mm):	60Mn,60si2Mn;
Brand:	China Coal;	Payment Terms:	L/C,D/A,T/T,Western Union,Paypal, Alibaba Trade Assurance;

Product Introduction

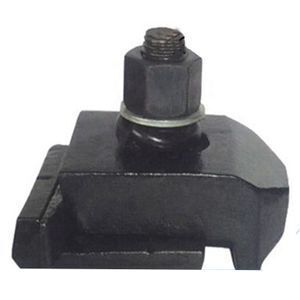

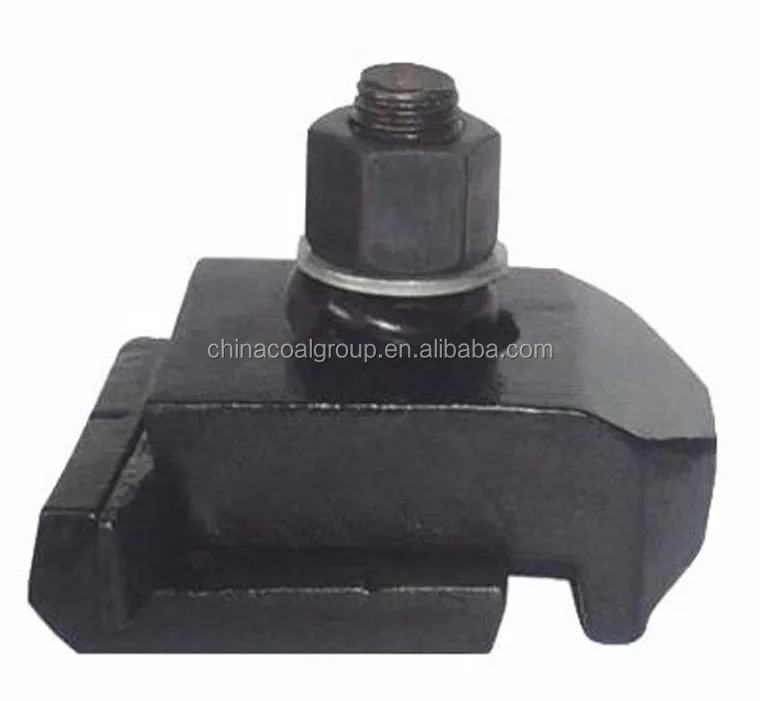

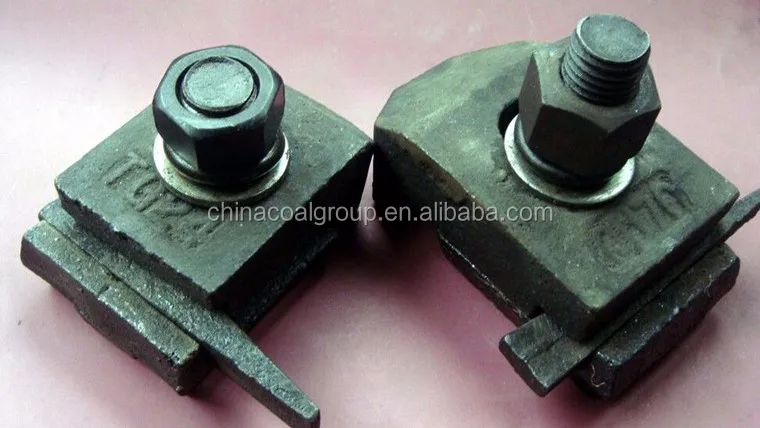

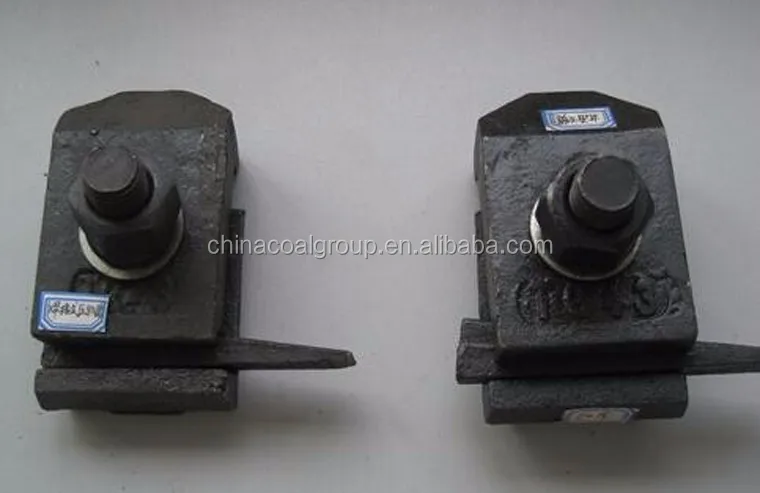

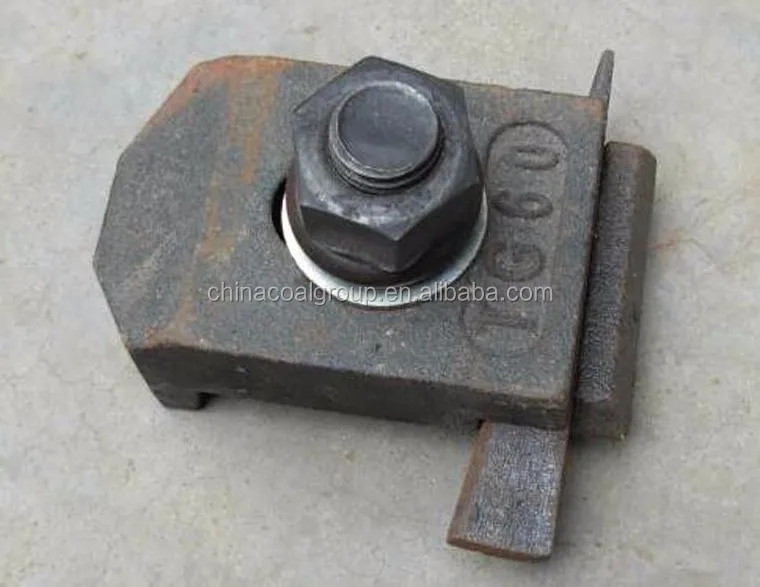

This rail clamp for the form-fitting and rescue connection of two rail ends,wide variety of applications due to short and compact design,used in pairs.The rail clamp device makes the cracked rail tight through joint splint and bolts when the rail is too late to be replaced, which makes sure the train can pass smoothly. zmwm07

Main Parameter

Name	Rail Clamp

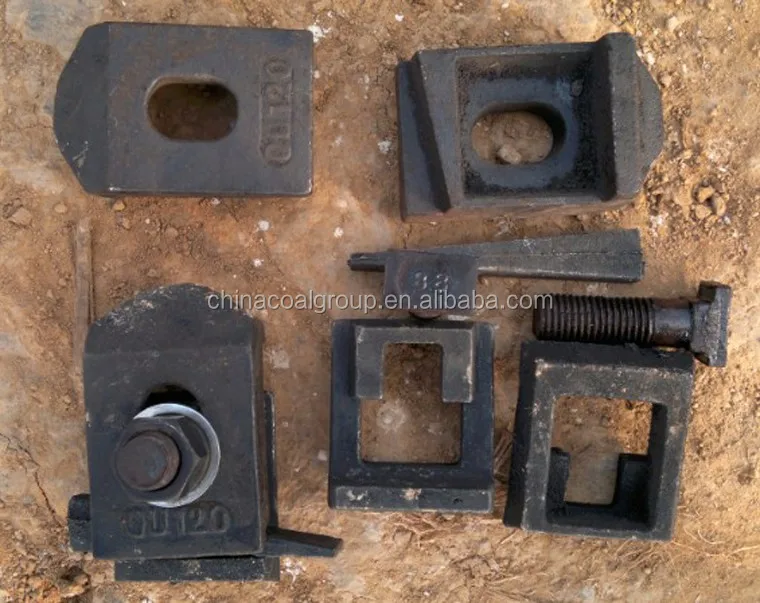

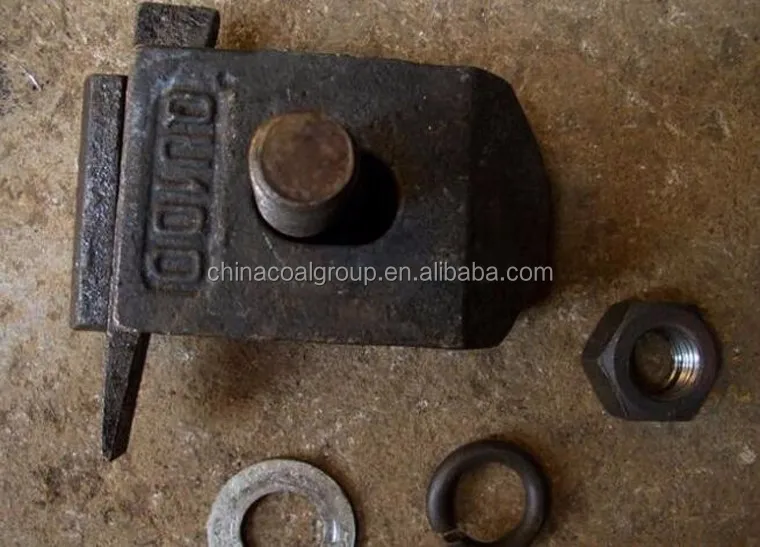

Assembly	base plate, cover plate, t bolt, nut, spring washer, flat washer, pin
Material	base plate and cover plate: ductile cast iron, cast steel t bolt, nut, flat washer: Q235 carbon steel spring washer: 60Mn,60si2Mn
Surface	plain, black, zinc plated, HDG, etc
Usage	railway, crane rail, or other rails
Light Rail Model	TG30/43/50
Heavy Rail Model	QU70/80/100/120
Samples	Samples are availible
Delivery	within 15 days after got payment
Package	bulk in carton, then on pallet, or according to customers' requirement
