PZ 7 Aliva Dry Shotcrete Concrete Spraying Gunite Machine price for sale

Supplier: Henan Weibang Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Mr Weibang J.
Price: $1300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max. Conveying Distance:	30 mvertical, 100m horizontal;	Warranty:	1 Year;
Machinery Test Report:	Provided;	Model:	Factory price shotcrete machine for sale;
Max Aggregate Size:	20mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
After Warranty Service:	Video technical support,Online support;	Feeding Height (mm):	1300;
Port:	Tianjian ,Shanghai,Ningbo,Qingdao or other ports;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Online support;
Air Consumption:	8-10m3/min;	Applicable Industries:	Construction works ;
Application:	culverts, underground engineering, coal mine construction;	Supply Ability:	1000 Set/Sets per Month;
air pressure:	0.4-0.6 MPa;	Video outgoing-inspection:	Provided;
Weight:	900 kgs,850kg;	Voltage:	380V;
Certification:	ISO CE;	Place of Origin:	Henan China;
Marketing Type:	New Product 2020;	Dimension(LWH):	1500mm800mm1300mm;
Local Service Location:	South Africa;	Packaging Detail:	PZ 7 Aliva Dry Shotcrete Concrete Spraying Gunite Machine packaged with carton box, plastic bags, wooden cases or as your requirement;
UNIQUE SELLING POINT:	High operating efficiency;	Particle size:	≤20mm;
Brand Name:	TXSL;	Core Components:	Engine,Motor;
Capacity:	9 M3/H;	Motor power:	380V;
Power:	5.5 KW;	Transmission Distance:	200 horizontal /100 Vertical;
Condition:	New;	Drive mode:	Electric Motor;
Warranty of core components:	1 Year;	Hose Inner Diameter:	51;
Showroom Location:	None;

Product Description

The spray machine series are divided into PZ-3, PZ-5,PZ-7, PZ-9 and other models. They are used in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering;The explosion-proof type is suitable for coal mine, chemical mining and other places with high combustible gas.

Product Features

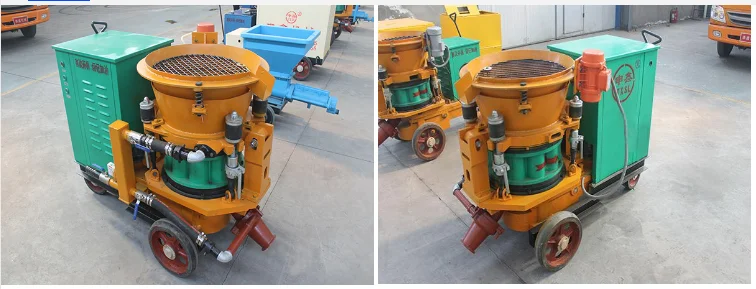

Main Features of PZ 7 Aliva Dry Shotcrete Concrete Spraying Gunite Machine price for sale

1, Enlarged feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubb-er liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduces the wear of parts.

Product Parameters

Main Features of PZ 7 Aliva Dry Shotcrete Concrete Spraying Gunite Machine price for sale

Model	PZ-5	PZ-7	PZ-9
Working Capacity (m³ / h)	5	7	9
Max. Convey Distance (m)	30 vertical, 100 horizontal	30 vertical, 100 horizontal	30 vertical, 100 horizontal
Recommended Water-cement Ratio	≤0.4	≤0.4	≤0.4
Accelerator Dosage (%)	2-10	2-10	2-10
Max. Grain Size (mm)	20	20	20
Spraying Hose Diameter (mm)	Φ51	Φ57/Φ64	Φ57/Φ64
Working Air Pressure (MPa)	0.4-0.6	0.4-0.6	0.4-0.6
Air Consumption (m³ /min)	8-10	10-12	10-12
Feeding Height (mm)	1100	1300	1300
Main Motor + Vibration Motor (kw)	5.5+0.15	7.5+0.25	11+0.25
Weight (kg)	750	850	900
Dimensions (mm)	1400×800×1100	1500×800×1300	1500×800×1300

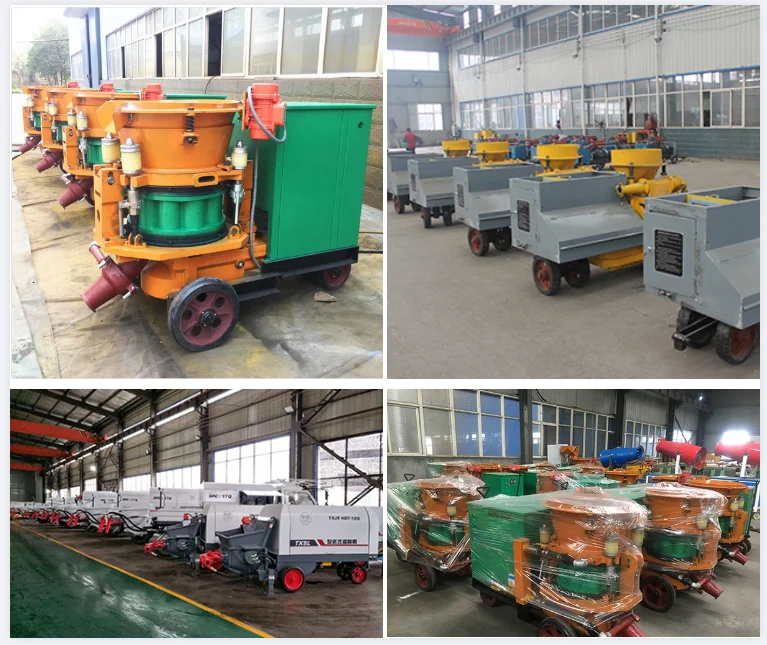

we are shotcrete machine suppliers and manufacturer for 20 years.we can supply electric drive,air motor and diesel shotcrete machine for choose,

we also can customize according to your requirements, factory price.

If you have any questions,please feel free to contact us.we will recommend you a proper shotcrete machine.

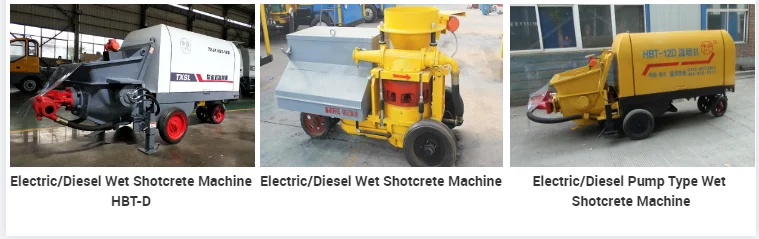

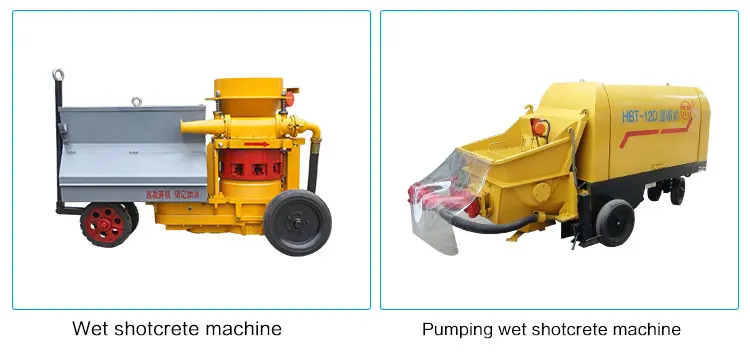

We have different types of shotcrete machines for our customers to chose.

Why choose us?

Are you concerned about high price of overseas purchasing?

Are you concerned about machine quality?

Are you concerned about after-sales service?

Are you concerned about quick-wear parts?

Product Application

This series are divided into PZ-5, PZ-7, PZ-9.

PZ-5 gunite machine is medium-sized shotcrete machine,to spray the dry or damp concrete mixture.

PZ-7 dry mix shotcrete machine is a universal medium-sized shotcrete machine.

PZ-9 is a large concrete spraying machine used to spray dry or wet concrete mixture.

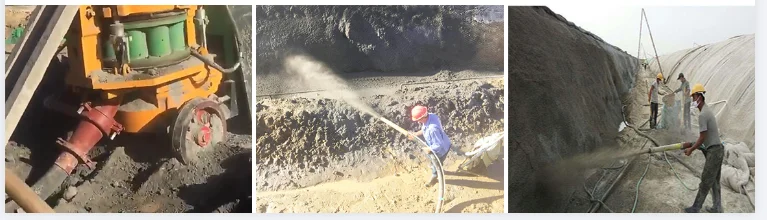

PZ5/7/9 are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.

Can be equipped with electric, pneumatic or diesel engine drive.
