Aliva Similar mini concrete spray machine

Product details
Condition:New;Hose Inner Diameter:51 mm;
Recommended Water-cement Ratio:0.4;Showroom Location:None;
Packaging Detail:Plywood pellet or Cases suitable for long-distance shipment Aliva Similar mini concrete spray machine;Warranty:1 year;
Local Service Location:None;After Warranty Service:Video technical support,Online support;
Brand Name:TXSL;Accelerator Dosage (%):2-10;
Weight:680KG;Dimension(L*W*H):L1250mmxW780mmxH1170mm;
Working Capacity (m3 / h):7;Place of Origin:Henan China;
producte name:concrete spray machine;Feeding Height (mm):1100;
Max. Convey Distance (m):30 vertical, 100 horizontal;Voltage:380V;
Spraying Hose Diameter (mm):51;Air Consumption (m3/min):8-10;
Air Consumption:8-10m3/min;model:PZ 3 5 7;
Applicable Industries:Construction works ;After-sales Service Provided:Video technical support,Online support;
Max. Grain Size (mm):20;Max. Conveying Distance:Horizontal:200m Vertical: 100m;
Certification:ISO9001:2008;Max Aggregate Size:20mm;
Power(W):5.5 KW;UNIQUE SELLING POINT:High operating efficiency;

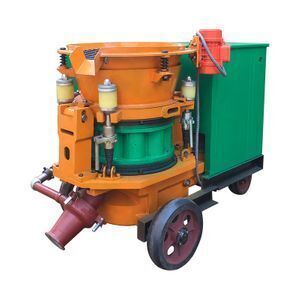

Aliva Similar mini concrete spray machine

Product Features

Main Features of Aliva Similar mini concrete spray machine

1, Enlarged feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubb-er liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduces the wear of parts.



Product Parameters

Main Features of Aliva Similar mini concrete spray machine

Model
PZ-3
PZ-5
PZ-7
PZ-9
Working Capacity (m³ / h)
3
5
7
9
Max. Convey Distance (m)
30 vertical, 200 horizontal
30 vertical, 200 horizontal
30 vertical, 200 horizontal
30 vertical,
200 horizontal
Recommended Water-cement Ratio
≤0.4
≤0.4
≤0.4
≤0.4
Accelerator Dosage (%)
2-10
2-10
2-10
2-10
Max. Grain Size (mm)
10
15
20
20
Spraying Hose Diameter (mm)
38/50
Φ51
Φ57
Φ64
Working Air Pressure (MPa)
0.2-0.4
0.2-0.4
0.4-0.6
0.4-0.6
Air Consumption (m³ /min)
5-6
8-9
10-12
10-12
Feeding Height (mm)
900
1100
1300
1300
Main Motor + Vibration Motor (kw)
4
5.5+0.15
7.5+0.25
11+0.25
Weight (kg)
430
750
850
900
Dimensions (mm)
1130×540×1020
1350×750×1200
1500×800×1300

Why choose us?

Are you concerned about high price of overseas purchasing?

Are you concerned about machine quality?

Are you concerned about after-sales service?

Are you concerned about quick-wear parts?



Product Application

This series are divided into PZ-5, PZ-7, PZ-9.

PZ-5 gunite machine is medium-sized shotcrete machine,to spray the dry or damp concrete mixture.

PZ-7 dry mix shotcrete machine is a universal medium-sized shotcrete machine.



PZ-9 is a large concrete spraying machine used to spray dry or wet concrete mixture.

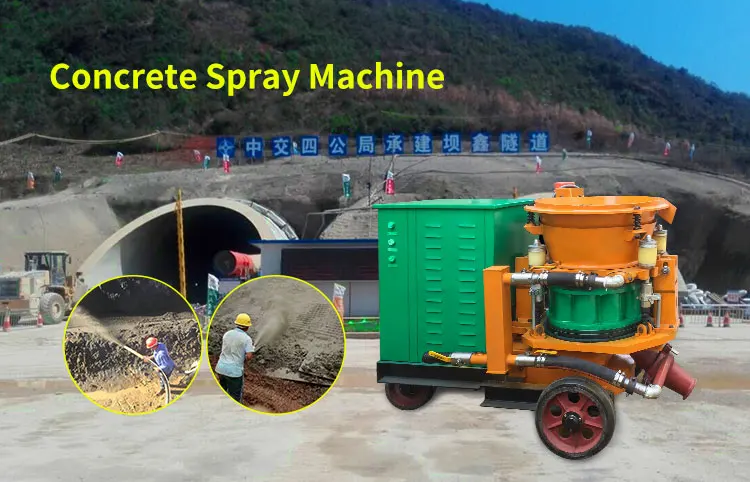

PZ5/7/9 are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.

Can be equipped with electric, pneumatic or diesel engine drive.
