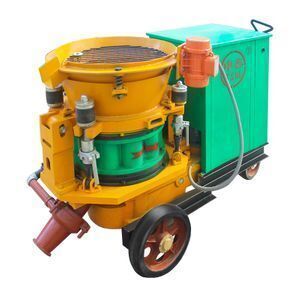

factory price portable shotcrete gunite machine

Supplier: Henan Weibang Intelligent Technology Co., Ltd.
Region: Henan, China
Contact: Mr Weibang J.
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working pressure:	0.4-0.6(M pa);	After-sales Service Provided:	Video technical support,Online support;
Max. Conveying Distance:	100m Horizontal: 200m;	Power(W):	5.5kw;
Main Power:	5.5+0.15KW;	Condition:	New;
Model Number:	PZ;	Place of Origin:	Henan China;
Max Aggregate Size:	20mm;	Air Consumption:	8-10m3/min;
Dimension(LWH):	13008001100(LWH)(mm);	Single package size:	155X850X135 cm;
Package Type:	Plywood pellet or Cases suitable for long-distance shipment Portable dry mix shotcrete machine for sale quality guaranteed;	Weight:	750KG;
Hose Inner Diameter:	57mm;	Water-cement ratio:	≤0.4;
Blast tube diameter:	51mm;	Air consumption:	8-10(M pa);
Capacity:	7(m3/h);	UNIQUE SELLING POINT:	High operating efficiency;
Brand Name:	Weibang;	Dimension:	13008001100(mm);
Warranty:	12 Months;	Hose Inner Diameter:	57 mm;
Voltage:	220v/380v customization;	Accelerator Addition:	2-10(%);
Certification:	CE /ISO9001;	Single gross weight:	135 KG;
Selling Units:	Single item;	Applicable Industries:	Construction works ;

factory price portable shotcrete gunite machine

Product Features

Main Features of factory price portable shotcrete gunite machine

1, Enlarged feeding inlet facilitates the continuity of concrete output. Air flow can be set at a certain rate, also can be adjusted timely to ensure the continuity of the concrete and accelerator.
2, New straight-through rotor, macromolecule elastic chamber, combined and soft discharge elbow and rubb-er liner prevent concrete sticking and blocking in the machine.
3, Wear parts are made of the materials with unique structures. Elastic and automatic clamping device improves tightness of the machine and reduces the wear of parts.

Product Parameters

Main Features of factory price portable shotcrete gunite machine:

PZ series shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel

Model	PZ-3	PZ-5	PZ-7	PZ-9
Working Capacity (m³ / h)	3	5	7	9
Max. Convey Distance (m)	30 vertical, 200 horizontal	30 vertical, 200 horizontal	30 vertical, 200 horizontal	30 vertical, 200 horizontal
Recommended Water-cement Ratio	≤0.4	≤0.4	≤0.4	≤0.4
Accelerator Dosage (%)	2-10	2-10	2-10	2-10
Max. Grain Size (mm)	10	15	20	20
Spraying Hose Diameter (mm)	38/50	Φ51	Φ57	Φ64
Working Air Pressure (MPa)	0.2-0.4	0.2-0.4	0.4-0.6	0.4-0.6
Air Consumption (m³ /min)	5-6	8-9	10-12	10-12
Feeding Height (mm)	900	1100	1300	1300
Main Motor + Vibration Motor (kw)	4	5.5+0.15	7.5+0.25	11+0.25
Weight (kg)	430	750	850	900
Dimensions (mm)	1130×540×1020	1350×750×1200	1500×800×1300	1650×900×1250

Why choose us?

Are you concerned about high price of overseas purchasing?

Are you concerned about machine quality?

Are you concerned about after-sales service?

Are you concerned about quick-wear parts?

Hot Products

For dry shotcreting, you have more choice:

You may also try wet shotcreting, we have the following machine models:

Product Application

This series are divided into PZ-5, PZ-7, PZ-9.

PZ-5 gunite machine is medium-sized shotcrete machine,to spray the dry or damp concrete mixture.

PZ-7 dry mix shotcrete machine is a universal medium-sized shotcrete machine.

PZ-9 is a large concrete spraying machine used to spray dry or wet concrete mixture.

PZ5/7/9 are mainly used for dry-mix concrete spraying in tunnelling, culvert, subway, slope stabilization, swimming pools, mining and underground engineering; The explosion-proof type is suitable for coal mining, chemical mine and other places with high combustible gas.

Can be equipped with electric, pneumatic or diesel engine drive.
