powerful hand-held mining YT28 air leg pneumatic rock drill

  • 435.00 piece
Min. Order: 1 piece FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
air pressure:0.63Mpa;Certification:CE ISO;
Voltage:220/380;Selling Units:Single item;
Package Type:rock drill Standard wooden case packing powerful hand-held mining YT28 air leg pneumatic rock drill;After-sales Service Provided:Video technical support,Field maintenance and repair service;
Operating Air Pressure:0.4-0.63 MPa;Single gross weight:30 KG;
weight:28kg;Single package size:69.5X25.8X22.5 cm;
Weight:28kg;Warranty:1 Year;
Dimension(L*W*H):661*242*195cm;Delivery Detail:0 days after payment;
Usage:Coal;Condition:New;
Brand Name:TXSL;Model Number:yt28 rock drill;
Drilling Frequency:≥40HZ;Type:Core Drilling Rig;
Applicable Industries:Energy & Mining;Drilling Hole Diameter:32-42mm;
Power Type:Gasoline;Drilling Depth:5m;
Certification:CE ISO;power type:pneumatic rock drill;
Voltage:380V;Place of Origin:Henan China (Mainland);
Product Description

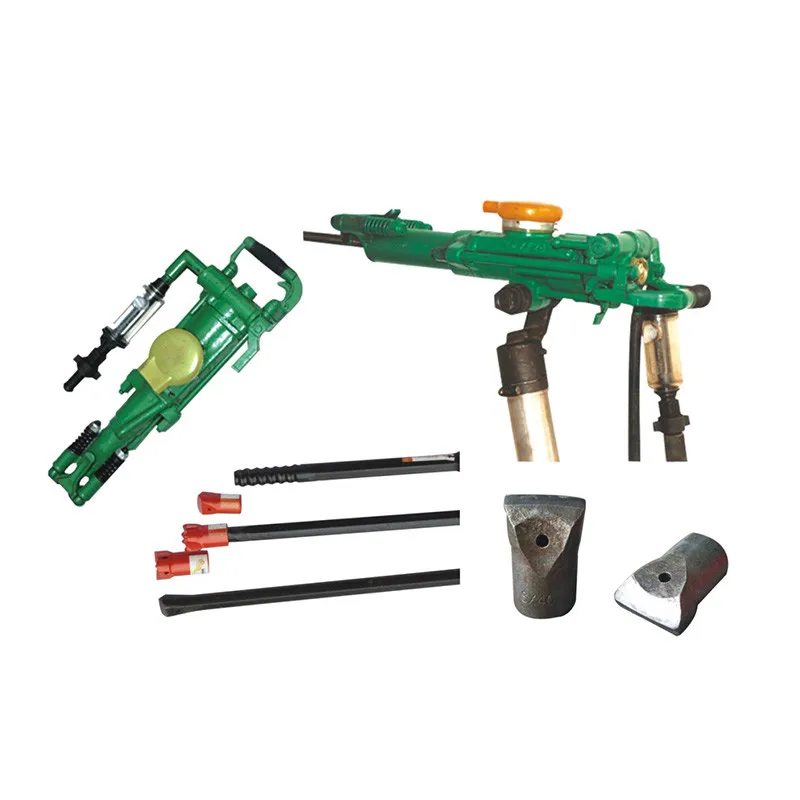

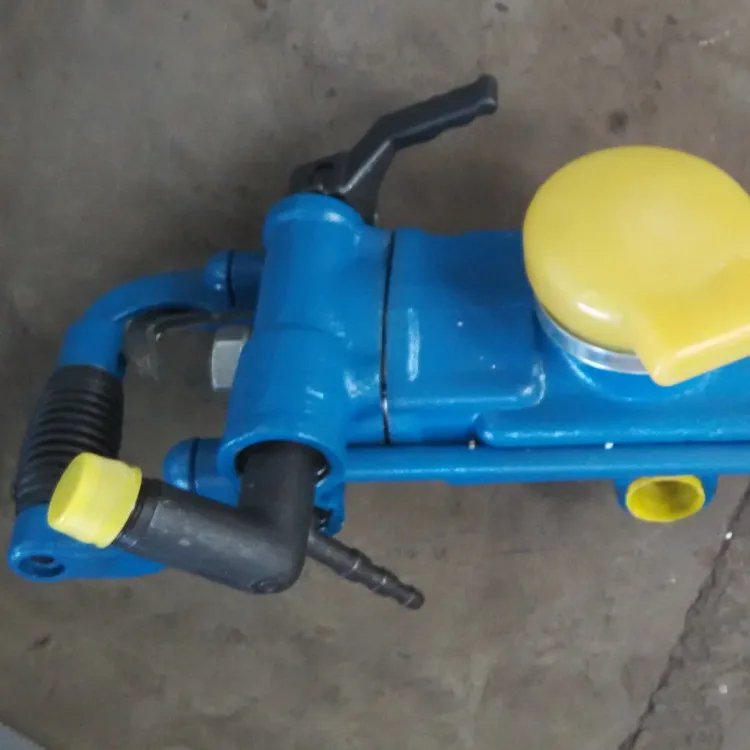

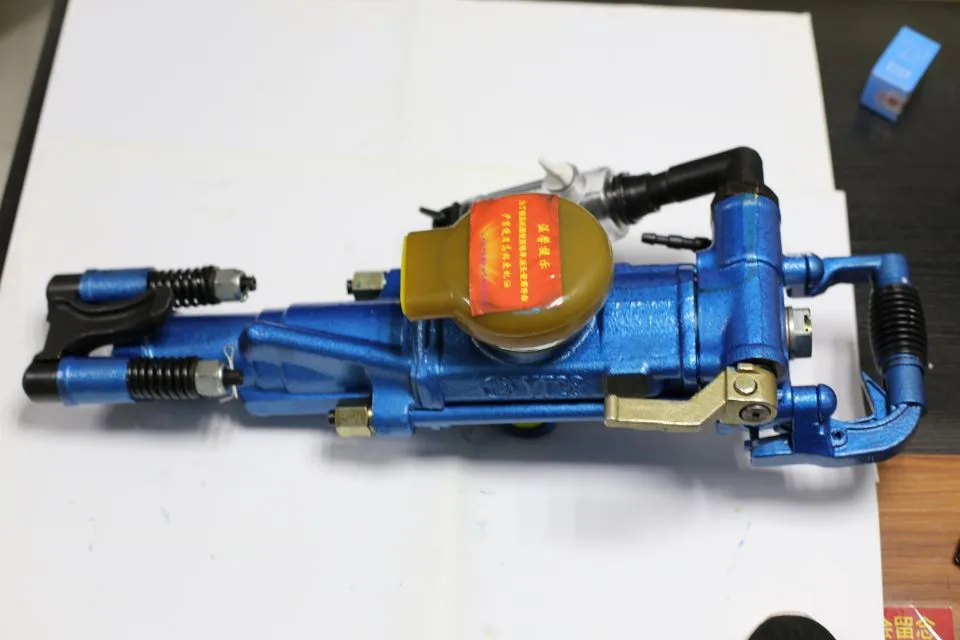

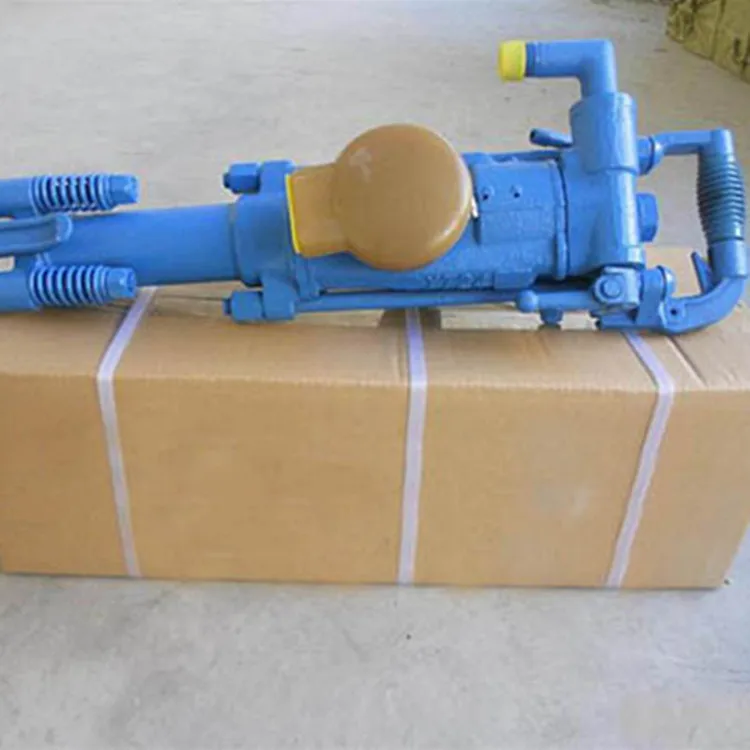

powerful hand-held mining YT28 air leg pneumatic rock drill

powerful hand-held mining YT28 air leg pneumatic rock drill is the most modern rock drilling machine. It adopts the technology of modern rock drilling machine, and its performance is superior. Compared with other type of products, it has the advantages of high efficiency, low noise, light weight, high footage speed. It is widely used in the drilling operation of large mines, medium-sized mines and tunnels.

YT28 pusher leg drill is most suitable for drilling horizontal or inclined blast hole on medium-hard or hard rock, and it can also be installed in the drill carriage or drill frame.

Product Parameters
Weight (kg)
26
Drilling depth (m)
4
Dimensions (mm)
661×247×195
Bore (mm)
80
Piston stroke (mm)
60
Working pressure (MPa)
0.4-0.63
Impact Energy (J)
≥80
Air leg type
FT160BC Long air leg
Impact Frequency (Hz)
≥37
Air-leg length (mm)
1800
Air consumption (L / S)
≤81
Advance stroke (mm)
1365
Torque (N.m)
≥19
Cylinder diameter (mm)
65
Air pipe inner diameter (mm)
25
Oil capacity (ml)
200
Drilling hole diameter (mm)
32-42
Weight of TY200B oil injector (kg)
16.9

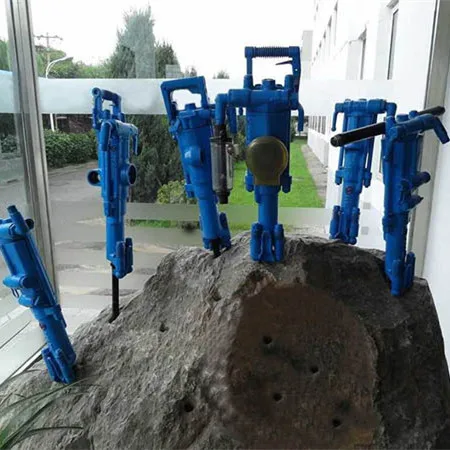

Detailed Image
Applications

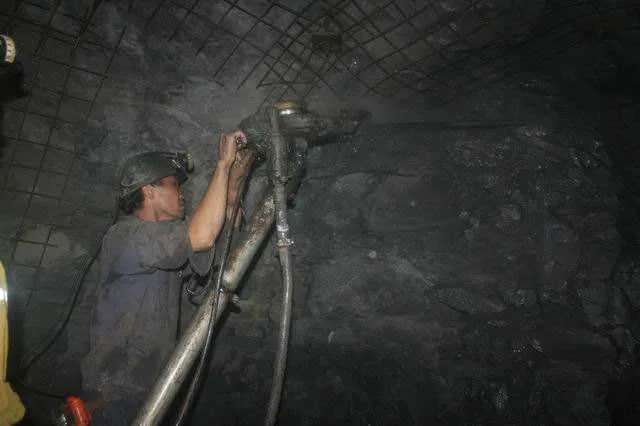

powerful hand-held mining YT28 air leg pneumatic rock drill is widely used in mining, roadway tunneling and various rock drilling operations. It is an important tool in metallurgy, coal, railway, transportation, water conservancy, infrastructure and national defense rock engineering.

Related Products

             PZ series Dry Shotcrete Machine                                            SJB Mortar/Cement Grout Pump

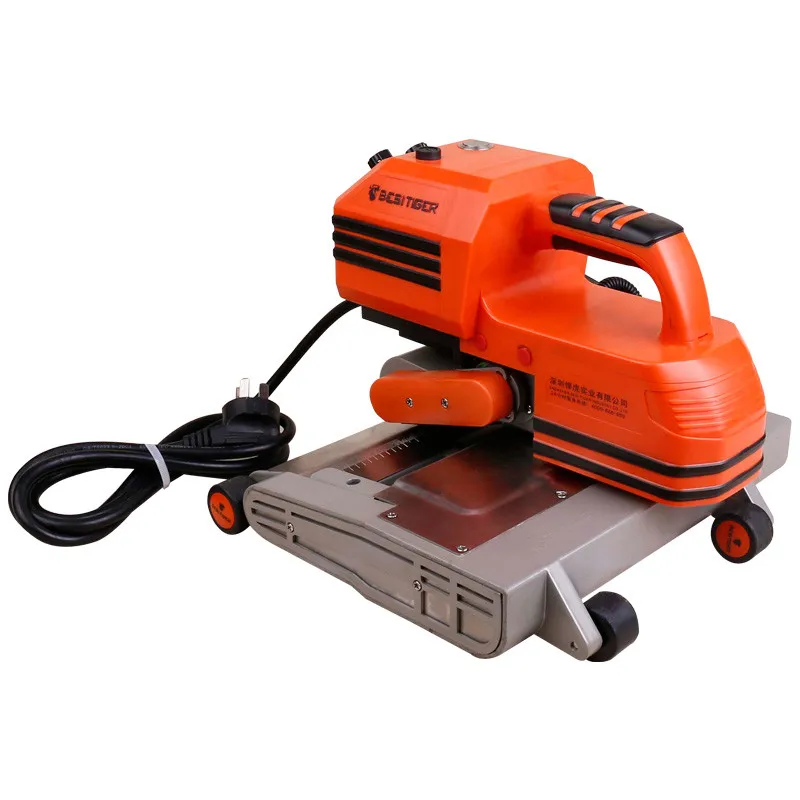

              Geomembrane Welding Machine                                        Ultrasonic Spot Welding Machine
