Flexible Polyurethane Foam Injection Machine
-
Supplier: Shanghai Ruth Constructional Materials International Trading Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Barbara Sheng -
Price: $150.00 /set -
Min. Order: 1 set
| Supply Ability: | 1000 Set/Sets per Week Flexible Polyurethane Foam Injection Machine; | Item: | PU Resin Injection Machine; |
| Dimension(L*W*H): | 46*22*49; | Penetration: | Place within or enter; |
| Packaging Detail: | 1set per carton. Flexible Polyurethane Foam Injection Machine.; | Brand Name: | Ruth; |
| Type: | waterproofing tools; | MOQ: | 1Set; |
| Usage: | Waterproofing; | Payment Terms: | L/C,T/T,Western Union; |
| Port: | Shanghai; | Operation: | Electric drill operated; |
| Packing: | 1set/carton; | Function: | Entry port for injection resin; |
| Delivery Detail: | Shipped in 10 days after payment; | Application: | Waterproof use; |

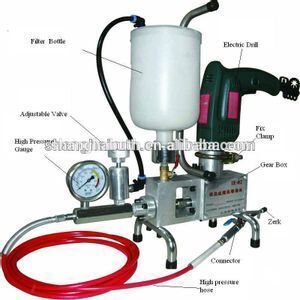

- Item: Portable PU Resin Injection Machine
- Brand Name: Ruth Brand
- MOQ: 1 set
- Sample Time: 3 days-polyurethane Grouting Machine
- Package details:
1set/Carton, Carton Size:46*22*49cm, Net Weight: 9kgs
20 sets/Pallet, Pallet Size: 1*1*1M - Easy to carry & maintain, maximum output pressure up to 70MPa.
- Injection pressure:0-70Mpa(8000-10000Lb)
- 2 ways of material feed-in: pour & suck
- The Drill is Matabo. The power consumption:560W/220V or 110V
Material of application
WPU and OPU foam stop leakage agent, Concrete crack waterproofing, Epoxy resin.
Applications
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.
Specification
Weight(Include Package) | around 10Kg |
Maximum output pressure | 70MPa |
Pressure of restarting | less than 20 MPa |
Safe range of high-pressure hose | less than 70 MPa |
Safe range of switch valve | less than 50 MPa |
Materials of Application
Hydrophilic Polyurethane (WPU) and Hydrophobic Polyurethane (OPU) foam stop leakage agent, Epoxy Resin.
Application Field
Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement Hairline Crack, etc., water stop projects.
Notes during Applying
- Stop injecting if injected materials does not emit from the cracks after 5 minutes of application. Check for cross-drilled buried pipeline or other unnoticed holes.
- All application process should be closely watched. If the injection machine’s pressure remained high after releasing the valve on the connector, cracks and injection packers should be checked.
Transportation by Air: Arrival within 2-7 days upon receipt of payment, excluding weekends and holidays.
Transportation by Ship: Delivery within 2-5 days upon receipt of payment, excluding weekends and holidays.
Packing Detail: 40 cartons per pallet (1*1 M)
1. 24hour online service.
2. Enquiry will be replied in 2 hours.
Q: Would you afford samples to test by ourselves?
A: Of course we can, we will provide you free samples with freight charge, when you place an order, we will pay the freight charge back to you.
Q: Is samples as same as big order?
A: Keep same Quality as you saw always.
Q: What is your main Market?
A: Asia, Southeast Asia, Middle East, Oceanica.
Q: How can I get the after-service?
A: The service package will help, if it is man-made problems, we also send the spare parts, but you should pay.
-
