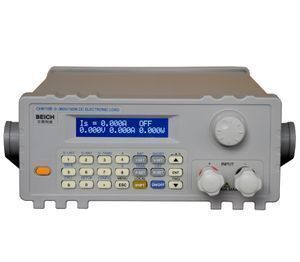

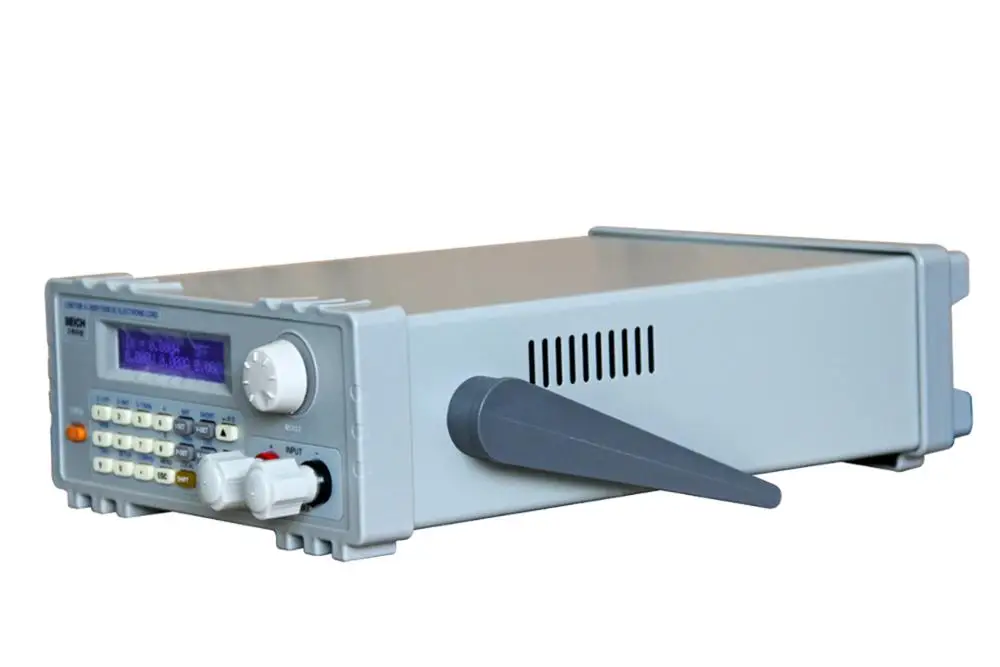

BEICH CH8710 Programmed DC Electronic Load Series Products from DC Electronic Load

Product Details

Brand Name:	BEICH;	Payment Terms:	T/T;
Port:	Shanghai;	Packaging Detail:	Paper Carton;
Model Number:	CH8710;	Package Preview:	;
Place of Origin:	Jiangsu China;	Supply Ability:	100 Piece/Pieces per Month;

Performance characteristics:

Maximum 360V test voltage to meet the test requirements of non-isolated driving power supply

Fixed Current, Fixed Voltage, Fixed Resistance, Fixed Power Mode

Dynamic measurement mode

Battery Testing Mode

List Automated Test Mode

Standard RS232C interface

Remote Testing Function

Over Voltage, Over Current, Over Power, Over Temperature Protection

Main technical indicators:

Model		CH8710B	CH8710C	CH9710B	CH9710C
Rated value	Input voltage	0~360V
	Input current	1mA~30A		0.1mA~30A
	Input power	150W	300W	150W	300W
Display mode		LED with backlight		High brightness VFD
	Range	Accuracy	Resolving Power	Accuracy	Resolving Power
Load accuracy	0-36V	±(0.1%+0.03%FS)	1mV	±(0.05%+0.03%FS)	1mV
	0-360V	±(0.1%+0.03%FS)	10mV	±(0.05%+0.03%FS)	10mV
	0-3A	±(0.1%+0.1%FS)	1mA	±(0.05%+0.05%FS)	0.1mA
	0-30A	±(0.2%+0.3%FS)	10mA	±(0.05%+0.05%FS)	1mA
Fixed Voltage Mode	1.5V-36V	±(0.1%+0.03%FS)	1mV	±(0.05%+0.03%FS)	1mV
Fixed Voltage Mode	1.5V-360V	±(0.1%+0.03%FS)	10mV	±(0.05%+0.03%FS)	10mV
Fixed Current mode	0-3A	±(0.1%+0.1%FS)	1mA	±(0.05%+0.03%FS)	0.1mA
Fixed Current mode	0-30A	±(0.2%+0.3%FS)	10mA	±(0.05%+0.03%FS)	1mA
Fixed Resistance mode	0.1Ω-10Ω	±(1%+0.3%FS)	0.001Ω	±(0.2%+0.2%FS)	0.001Ω
	10Ω-99Ω	±(1%+0.3%FS)	0.01Ω	±(0.1%+0.1%FS)	0.01Ω
	100Ω-999Ω	±(1%+0.3%FS)	0.1Ω	±(0.1%+0.1%FS)	0.1Ω
	1KΩ-4KΩ	±(1%+0.8%FS)	1Ω	±(1%+1%FS)	1Ω
Fixed Power mode	0-10W	±(1%+0.1%FS)	1mW	±(0.1%+0.1%FS)	1mW
	10-100W	±(1%+0.1%FS)	10mW	±(0.1%+0.1%FS)	1 0mW
	100-300W	±(1%+0.1%FS)	0.1 W	±(0.1%+0.1%FS)	0.1 W
Current measurements	0-3A	±(0.1%+0.1%FS)	1mA	±(0.05%+0.05%FS)	0.1mA
Current measurements	0-15A/30A	±(0.2%+0.3%FS)	10mA	±(0.05%+0.05%FS)	1mA
Voltage measurements	1.5V-36V	±(0.1%+0.03%FS)	1mV	±(0.05%+0.03%FS)	0.1mV
Voltage measurements	1.5V-360V	±(0.1%+0.03%FS)	10mV	±(0.05%+0.03%FS)	1mV
Battery Test Function	Input voltage:0.8-360V Maximum capacity:999A/H Resolving Power:10mA Discharge time:1~60000sec			Input voltage:0.8-360V Maximum capacity:999A/H Resolving Power:0.1mA Discharge time:1~60000sec
Dynamic Test mode	T1&T2(A or B Value Test Time): 1mS-999S Error<3% + 1mS			T1&T2(A or B Value Test Time): 0.1mS-999S Error<2.5% + 0.1mS
Protection scope	>Rated condition 5%
Input impedance	≥200KΩ
Outline size	WHD 225mm100mm330mm			WHD 215mm88mm335mm
Weight		About 5.5Kg	About 6.5Kg	About 5.5Kg	About 6.5Kg
