BEICH CH1200 Winding Turn Tester Products from DC Electronic Load

Product Details

Operating Temperature:	0-40℃;	Supply Voltage:	220(1±10%)V AC;
Measuring Range:	1-80000 circles;	Place of Origin:	Jiangsu China (Mainland);
Model Number:	CH1200/1200R;	Accuracy Class:	0.2;
Brand Name:	BEICH;	Display Type:	LED;
Dimensions:	335x320x290mm;	Packaging Detail:	Paper Carton;
Payment Terms:	T/T;	Weight:	6Kg;

Product Introduction:

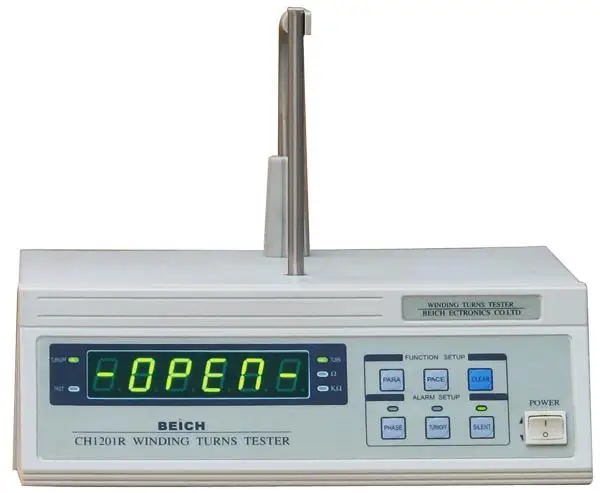

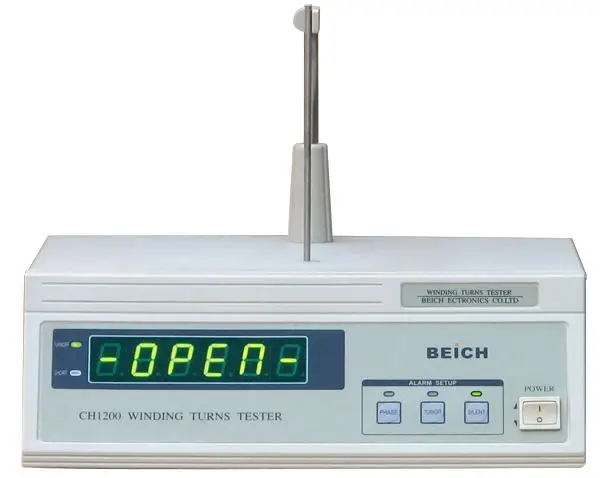

CH1200 winding turn tester can conveniently measure turns and DC resistance of windings, including that of motor, transformer, electronic engine, relay, etc. The meter has the characteristics of being intelligent, having nice design, high accuracy, high speed and easy operation. It’s not necessary to calibrate and change range at the time of measurement so that measurement efficiency could be improved.

Feature:

New circuit design

Dual control of CPLD and MCU

High speed, high accuracy

4-terminal mode of resistance measurement

Wide measurement range

Specifications:

Model Parameter	CH1201	CH1201R	CH1200	CH1200R
Sensor’ type	BS9.5 BS6 BS4
Winding’s shape	Inner diameter>BS4mm outer diameter<120mm height<110mm
Winding measurement range	1~80000		1~30000
Winding measurement accuracy	1~300±0 300~500±1 500~2000±0.2% 20000~80000±0.5%		1~500±1 500~30000±0.3%
Winding basic measurement speed	Fast:3measurements/second		Slow:1.5measurements/second
Resistance measurement range	No	100uΩ~200KΩ	No	100uΩ~20KΩ
Resistance basic measurement speed	No	5 times /S	No	3 times /S
Resistance measurement accuracy	No	0.2%	No	0.2%
Range mode	Auto selection
Display mode	6-digit LED
Alarm selection	Short-circuit,phase,quiet
Dimensions(W×H×D)	335mm×320mm×290mm
Weight	Approx.6Kg
Working temperature &humidity	0℃~40℃,≤90%RH
Power requirement	198-242VAC 47.5-52.5Hz
Power consumption	≤30VA
Note	To ensure measurement accuracy,sensor of φ9.5 type is recommended when inner diameter of winding under test is more than 30mm
