15KW EV Car Conversion Kits

Product details
Weight:55kg;Max. Speed:7500r/min;
Supply Ability:10000 Set/Sets per Month;Rated Speed:3000r/min;
Model Number:15kw;Rated Voltage:96V/108V;
Application:Electric Vehicle or Boat;Peak Torque:150N.m;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Brand Name:SHINEGLE;
Packaging Detail:Seaworthy Packing;Place of Origin:Guangdong China;
Protection Grade:IP67;Rated Power:15kw;
Port:Shenzhen, Foshan or Guangzhou;Rated Torque:65N.m;
Name:conversion kit 15kw;
Product Description

About US

(A very important question is what does a conversion kit include?
Normally, a conversion kit for electric vehicle is comprised of a motor and controller assembly(includes key switch, stall switch, accelerator and 4m wire harness). Thus, the price of battery pack and charger or other parts is not included.


We have devoted ourselves in motor control system for more than 10 years. Our products are sold to all over the world.

We can provide electric ac motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.

Our driving system is suitable for various types of electric vehicle, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).

SHINEGLE 7.5kw/10kw/15kw electric vehicle conversion kit are especially for those who want to retrofit their fuel cars to EVs.

Moreover, Our controller and motor can be applied to electric boat.

As an enterprise with full ability to develop and produce. Our products can be customized according to clients’ needs.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Motor
Rate power:7.5/10/15KW
Duty:S1
Max speed:7500 rpm
Rate voltage:72/96/108V
Net weight:35~50kg
Speed sensor:64 Pulse
Rated speed:3000~4500rpm

Controller
Rated voltage:72/96/108V
Rated output current:100/120
Max output current:500A
Efficiency:98%
Protection grade:IP65
Packing:wooden box
Net weight:5~10kg
Ambient temperature:-40 ~ 50℃
HS:8714990000

Gearbox
Speed capacity:9000 rpm
Ratio:6:1/8:1/10:1/12:1
Packing:wooden box
Torque capacity:180N.m
Center distance:50~106mm
HS:7326909000
Noise:≤65dB
Est. net weight:15~30kg

Main Features

1) High torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers the fastest system solutions

4) Work with clients to calculate and test

5) Long time system testing, product maturity

Certifications
Detailed Images

(Click the Following Corresponding Pictures for More Information)

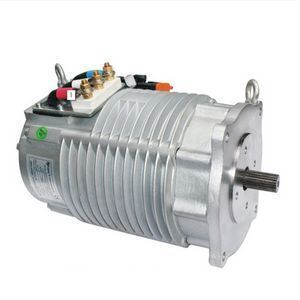

Name: AC Motor

Brand: SHINEGLE

Original: China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.


Name: Motor Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.

Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.


Name: Battery and Charger

Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100000km protection for our customers.

Our Service

Pre-Sales Service

* Customer sends inquiry

* Tailor the right system

* Sample testing support

After-Sales Service

* Timely technical communication

* Result feedback and improvement

Packing & Delivery
Packing
Size
1280 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packing Details
Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
100kg



Packing Details
Normal packing is wooden box(Size: L*W*H). Sometimes we choose cartons when by air.
Related Products

(Click for More Information)

AC&BLDC Motor Controlle
3kw ac & bldc motor controller                    4kw ac & bldc motor controller
5kw ac & bldc motor controller
7.5kw ac & bldc motor controller                 10kw ac & bldc motor controller
15kw ac & bldc motor controller

AC Motor
3kw ac motor                           4kw ac motor                              5kw ac motor
7.5kw ac motor                        10kw ac motor                           15kw ac motor

Electric Vehicle Conversion Kit
7.5kw electric vehicle conversion kit
10kw electric vehicle conversion kit
15kw electric vehicle conversion kit

Electric Vehicle Conversion Kit

               DC Motor Controller

                    AC Motor Controller
FAQ

1.Q: What is the difference of ac and dc motor?
AC motor does not need routine maintenance, but dc motor needs. AC motor has larger torque comparing with dc motor at the same power. But from the perspective of performance, they have no difference. Both of them have the same function and can use in same application.

2.Q: Is your controller compatible with ac & dc motor?
Yes. Which means it can be used in both ac and dc motor.

3. Q: How to install them in vehicle?
We will provide instruction and technical support online to help clients to make it work.

4. Q: How to build an electric car or hybrid car?
Although we are the supplier of electric vehicle components, we are determined to solve problems for clients. So if you do not have thoughts, we are happy to be of help. Just contact us.

As a company that is of R&D ability, we are now planning to develop controllers for different applications, such as electric bus, street sweeper, mobility scooter for the senior, electric motorcycle, etc. If you are in need, just send us inquiry or chat with us by Trade Manager.

Feel free to contact us if you have any problem for we have confidence in providing an ideal solution for you with 15-year experience in developing motor and motor control system.
