Low Price Ready Mixed Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine

Supplier: Henan Landao Machinery And Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Debbie Zou
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Power(W):	7.5KW;
Brand Name:	LANDAO;	Mixer type:	ribbon mixer;
Weight:	2500kg;	Silo volume:	2m3;
Mixing time:	5-8 mintues;	Supply Ability:	60 Set/Sets per Month Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine;
Voltage:	380V;	Control System:	Electric control box;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Card;
Bag Weight:	10kg-50kg;	Port:	Qingdao Shanghai Shenzhen Ninbo port in China for Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine;
Features:	Easy Operation;	Mixing system:	horizontal spiral ribbon mixer;
Packaging Detail:	plastic filled with main machine and spare parts use the wooden box(es) for Low Price Ready Mixed Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine;	Operation workers:	2 person;
Name:	Ready Mixed Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine;	Place of Origin:	Henan China (Mainland);
Packaging method:	Automatic Valve packaging machine;	Warranty:	1 Year;
Application:	Dry Mortar Mixing;	Certification:	CE ISO;
Features:	small investment;	Dimension(LWH):	3000mm1300mm2700mm;

Low Price Ready Mixed Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine

Product Description

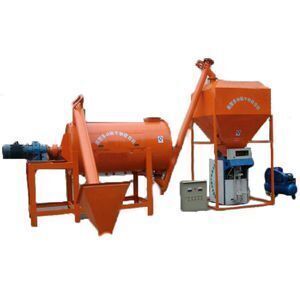

A Complete Dry Mortar Production Line

1	Feeding Screw Conveyor	4	Finished Production Bin	7	Electric Control Box
2	Ribbon Mixer	5	Automatic Volve Port Packing Machine
3	Finished Conveyor	6	Air Compressor

Introduction

Simple tile adhesive mixer is horizontal three layer spiral ribbon mixer

Horizontal mixer tank is equipped with a moving door to easy to clear up, Can be made of carbon steel, stainless steel, stainless steel mixer is suited to the color raw material mixing.

Good sealing in the end of mixing machine,so can achieve no leak leakage and high efficiency.

Automatic weighing and packing machine:5-8seconds/bag package speed.weight of bag:10kg-50kg,open mouth or valve port can do.

Easy installation,easy operation,Low maintenace,low investment

A complete tile adhesive dry mortar production line

1-6ton per batch output supply

Detailed Images

Technology parameter

Item	1ton/batch	2tons/batch	3tons/batch	4ton/batch	5tons/batch
Mixing power	5.5KW	7.5KW	15KW	11KW	22KW
Feeding conveyor power	3KW	3KW	4KW	4KW	4KW
Second conveyor power	###	4KW	4KW	4KW	5.5KW
Mixing time (minute/batch)	5-8minutes	5-8minutes	5-8minutes	5-8minutes	5-8minutes

Advantage of our tile adhesive plant

Note

For the first time to use this machine, mixer machine must be add grease oil to reducer.

For this ribbon mixer machine, it need while feeding raw material while mixing, when feeding over, then also about 5-8minutes will be high evenness, when discharging finished material, please not open fully for discharging door, if open fully, maybe it will be easy block the second screw conveyor.

Please clean the mixer machine use the air tube when work finished every time

Application

Application

Bonding Mortar
Masonry mortar, wall(ceramic) and floor tile adhesive mortar etc

Decoration Mortar
Decorative plaster, inner and outer wall putty, colorful decoration mortar etc

Protection Mortar
Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar ect.

Factory Show

What are our advantage of our team and factory?

1.The company employs more than 120 R&D professionals, production engineers and technical support experts and will guarantee the short production time within 10-20days and good quality.

2.We are located in Henan Province China,the largest construction town,there is a large advantage on experience and cost.it is easy for you to visit our company and the factory.we will also provide you 24h online chat service.

3.Online chat,quick reply,good quality.

4.We have sell lots of construction equipment,that can demand different purchase demand,it is convenient.

5.We have gained a global sales network reaching in Uganda,Colombia, Bolivia,Brazil,Algeria, Ecuador, Russia, Pakistan, Vietnam, Dubai, Ghana, India and so on. The quality,the price,the delivery time will be the best.

Packaging & Shipping

Delivery time: 10-20 days after receipt payment

Payment terms: 30% T/T in advance, the balance is paid (by T/T) before delivery

Package

Wire cables are used for fastening the machine on the trailer or inside the container

Cork wood are placed in front or behind the machine to protect it

Plastic film is covered on the machine as a rain-roof

FAQ

Q1:What is the area occupied of complete dry mortar machine?

A1:A complete simple 5 ton per hour line is about 20 m2 and height is less than 3 meters

Q2:How about the power consumption?

A2:For 2ton/h line,that need 80-100Kwh for 8 hours,for 4ton/h line,it need 120-140Kwh for 8 hours.for 5ton/h line,it need about 220-240Kwh for 8 hours

Q3:Weather can choose the packaging machine?

A3:Of course,we have simple packing machine and automatic packing machine(automatic weighing and automatic packing).we can do valve port and open port packaging machine according to your bag

Contact Information

Contact Person	Debbie Zou
Website	www.ldmixer.com
Skype	marchliy
Wechat	18730233290
Phone/Whatsapp	+00 86 18730233290
Email	debbiezou66(at)gmail.com
Welcome to inquiry Low Price Ready Mixed Ceramic Tile Adhesive Mortar Mixing Manufacturing Machine
