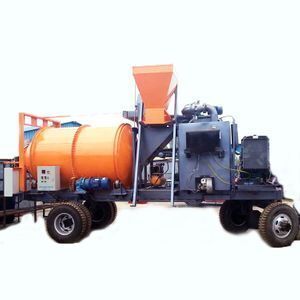

Mobile Mini Hot Mix Asphalt Plant Price for Sale

Supplier: Henan Landao Machinery And Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Debbie Zou
Price: $8500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	5200X1820X3000mm;	Packaging Detail:	Packing in fumigation-free wooden case for Mobile Mini Hot Mix Asphalt Plant Price for Sale;
Rotary motor:	5.5KW;	Product name:	Mobile Mini Hot Mix Asphalt Plant Price for Sale;
Power(W):	30KW+5.5KW+2.2KW+3KW;	Mixing Volume:	first time 20 minute,then 4-5 times/hour;
Port:	Qingdao,Shanghai,Tianjin,main port in China for Mobile Mini Hot Mix Asphalt Plant Price for Sale;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Card;
Brand Name:	LANDAO;	Fuel consumption:	20L/H;
Voltage:	380V;	Place of Origin:	Henan China (Mainland);
Supply Ability:	50 Set/Sets per Month Mobile Mini Hot Mix Asphalt Plant Price for Sale;	Capacity:	6-7ton/hr;
Condition:	New;	After-sales Service Provided:	Video technical support,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Mixing Type:	Drum Continuous Mix;	Fan:	1.5KW;
Charging Motor:	3KW;	Burner:	Gas;
Warranty:	12 Months;	Weight:	3500kg;
Control system:	30KW Gererator;

Mobile Mini Hot Mix Asphalt Plant Price for Sale

Product Description

Dual Drum Asphalt Concrete Mixer is a new type of mobile bitumen mixer, which doesn’t own the specific advantages of simple structure, high efficacy and turning easily, and has its own generator, adopt electronic triggering.

Mobile asphalt mixer machine is an energy conservation and environmental protection asphalt mixer. It is a new type asphalt mixer. It is equipped with digital display system it has precise mix proportion and the temperature is adjustable. It also can use asphalt as fuel for heating. With reliable quality, reasonable structure, high efficiency and because of its practicability and reliability, this equipment is widely used in highway, road, mine, oil field, airdrome construction

Technical Parameters

Model			LD-10
Mixing Drum	performance	Mixing Capacity	6ton-7ton per hour
		Discharge temperature /℃	120-180(can adjustable)
		Time required / minute	10-15
		Fuel Oil Consumption kg /Ton	3-4
	Configuration	Insulation drum Volume	3.88 m3
		Burner Model	RL44MZ
		Hopper volume m3	0.2(350kg) feeding method :the end of the win-roll loading
		Dust collector	Dust collector and Y80M2-2 centrifugal fan and water dust
Generator set	Generator power		30KW
	Diesel pump power		30.1KW
Weight (T)			3.5
Package dimension(mm)			5200X1820X3000

Features

Compact structure, low noise;
Trail-type, easy for transpotation;
Integrated control panel, simplicity of operation;

Autoignition burner, high thermal efficiency, low fuel consumption;
Concise asphalt supply, frost resisting pipeline;
Heating cylinder with a unique design of the internal structure, heating the aggregate fast and evenly;
Exact asphalt and aggregate rate;
Two stage dust removal.

Application

For road maintenance,the asphalt mixing machine can mix the new asphalt,also can be used for old asphalt recycling:stacking, storing,heating and mixing.

Electric start diesel generators to solve the power problem in the field,can pit road repair site anytime anywhere, the raod can access after the end of the job,ensure the smooth flow of road. Its function is more prominen especially in the cold winter.

It is a common pavement equipment widely used in construction of bridges, highways, tunnels, airports, and municipal works and so on
