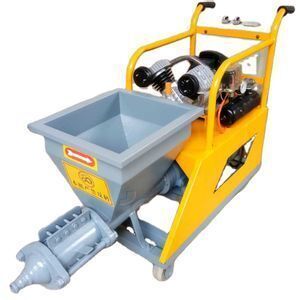

China Supplier Wet Mix Shotcrete Spray Gunite Machine Price for Sale
-
Supplier: Henan Landao Machinery And Equipment Co., Ltd. -
Region: Henan, China -
Contact: Ms Debbie Zou -
Price: $999.00 /set -
Min. Order: 1 set
| Power: | 3kw; | Application: | Mortar Spray Machine; |
| Showroom Location: | Indonesia; | Brand Name: | Landao; |
| Port: | Qingdao,Shanghai,Tianjin China for China Supplier Wet Mix Shotcrete Spray Gunite Machine Price for Sale; | Warranty: | 12 Months,1 Year; |
| Max Aggregate Size: | 20mm; | Voltage: | 380V,380V; |
| Warranty of core components: | 1 Year; | Marketing Type: | New Product 2019; |
| Wheel: | Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel; | UNIQUE SELLING POINT: | High load Moment; |
| Operating air pressure: | 0.4~0.6MPa; | Automatic Grade: | Automatic; |
| Hose Inner Diameter: | 51; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade assurance; |
| Type: | Concrete Injector Cement Gun; | Supply Ability: | 600 Set/Sets per Month China Supplier Wet Mix Shotcrete Spray Gunite Machine Price; |
| After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Online support; | Video outgoing-inspection: | Provided; |
| Condition: | New; | Air Consumption: | 7~8m3/min; |
| Machinery Test Report: | Not Available; | Certification: | ISO; |
| Dimension(L*W*H): | 1520X820X1280mm; | After Warranty Service: | Online support,Spare parts,Field maintenance and repair service; |
| Core Components: | Motor,Gear,Pump; | Capacity: | 2m3/h,5m3/h,6 m3/h,7m3/h; |
| Engine: | Electric; | Rate of the lime and water: | ≤0.4-0.45; |
| Packaging Detail: | Free-fumigation Safe Export Wood Case for China Supplier Wet Mix Shotcrete Spray Gunite Machine Price for Sale; | Place of Origin: | Henan China; |
| Max. Conveying Distance: | Horizontal:200m Vertical: 20m; | Applicable Industries: | Building Material Shops,Construction works ; |
| Weight: | 260kg; | Local Service Location: | Indonesia; |
China Supplier Wet Mix Shotcrete Spray Gunite Machine Price for Sale
| Introduce |
|
Concrete spraying machine can be used for dry or damp mix spraying in the work site, it is to provide efficient and convenient operating performance, instead of artificial wall plastering,solve the raw material waste when working. |
| Features |
|
1. High working pressure, stable flow, can deliver mortar with higher sand content. |
|
2. It adopts screw delivery, the flow is uniformity. |
|
3. It adopts mechanical transmission, the structure is simple and compact, the wearing parts are cheap and easy to be replaced. |
|
4.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality |
|
5. It is small in size, convenient to move, especially suitable to working in narrow space. |
Dry concrete shotcrete machine for construction with accessories
| Model | PZ-3 | PZ-5 | PZ-6 | PZ-7 |
| Capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h |
|
Working pressure |
0.2-0.4 MPa |
0.4-0.6 MPa |
0.6-0.8 MPa | 0.6-0.8 MPa |
| Max. convey distance |
Horizontal:200m Vertical: 20m |
Horizontal:200m
Vertical: 20m |
Horizontal:200m
Vertical: 20m |
Horizontal:200m
Vertical: 20m |
|
Power |
3KW |
5.5KW | 5.5KW | 7.5KW |
|
Blast consumption |
3-4 m3/min |
6-7m3/min |
7-8 m 3/min |
8-10 m 3/min |
| Hose inner size | 38mm | 51mm | 55mm | 64mm |
| Water cement ratio |
≤0.4-0.45 |
≤0.4-0.45 |
≤0.4-0.45 |
≤0.4-0.45 |
| Voltage |
380V |
380V |
380V |
380V |
|
Rate of the material matching |
cement/dinas =1:3-5 |
cement/dinas =1:3-5 |
cement/dinas =1:3-5 |
cement/dinas =1:3-5 |
|
Overall dimension(mm) |
1040X550X940 mm |
1280x700x1280 mm |
1520×820×1280 mm |
1500X700X1280 mm |
|
Whole weight |
260kg |
580kg |
650kg |
700kg |
Wet concrete shotcrete machine for construction with accessories
| Model | HSP-5 | HSP-6 | HSP-7 |
| Output | 5m³/h | 6m³/h | 7m³/h |
| Max. Convey Distance |
Horizontal:40m; Vertical: 20m |
Horizontal:30m; Vertical: 20m |
Horizontal:20m; Vertical: 15m |
| Max. Aggregate Size | Ø 15mm | Ø 15mm | Ø 15mm |
| Hose Inner Size | Ø 51mm | Ø 57mm | Ø 57mm |
| Operating Pressure | 0.3~0.5MPa | 0.4~0.6MPa | 0.4~0.6MPa |
| Air Consumption | 10-15m³/min | 10-15m³/min | 10-15m³/min |
| Consume Air Capacity | ≥12m3/min | ≥12m3/min | ≥12m3/min |
| Average Rebound Rate | ≤10% | ≤10% | ≤10% |
|
liquid accelerator additive amount |
0.3-0.5% | 0.4-0.6% | 0.4-0.6% |
| Motor Power | 7.5KW | 7.5KW | 7.5KW |
| Voltage | 380V | 380V |
380V or as Your Request |
|
Accelerator metering pump |
Air Motor | Air Motor | Air Motor |
|
ABOUT LANDAO |
|
Henan Landao Machinery And Equipment Co., Ltd. is a manufacturer and trader specializing in the research, development and production of construction machinery for nearly 20 years.and main manufacture concrete mixer,concrete batching plant,batch plant parts,dry mortar production line,steel bender machine,winch and so on. the best. |
