300tpd cement plant professional manufacturer in China

Supplier: Jiangsu Pengfei Group Co., Ltd.
Region: Jiangsu, China
Contact: Ms Wang Jingjing
Price: $10000000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Cement processing machine;	Video outgoing-inspection:	Provided;
application:	produce clinker,cement;	Dimension(LWH):	According to the design;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	process circuit:	closed circuit,open circuit;
motor supplier:	Simens,TECO;	Local Service Location:	None;
Place of Origin:	Jiangsu China;	Certification:	ISO9001, CE etc;
Warranty of core components:	1 Year;	Power:	According to the design;
Condition:	New;	Supply Ability:	100 Set/Sets per Year;
Voltage:	According to the design;	Core Components:	Engine;
Port:	Nantong or Shanghai port;	Weight:	According to the design;
Marketing Type:	New Product 2020;	Packaging Detail:	All the packing of cement plant is suitable for the ocean transporting and inland transporting,1.The kiln shell is transported in 6 sections. 2.The supports is packed on the cushion.3. the small parts is packed in wooden box and iron frame.4.there will be shipping mark on the packing box.i.e destination port,net weight/gross weight,heightlengthweight,c;
After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	1 Year;
equipment color:	as per demand;	Showroom Location:	None;
Machinery Test Report:	Provided;	material:	limestone,sandstone,clay,iron ore, gypsum;
Payment Terms:	L/C,T/T,cash;	Brand Name:	Pengfei;
Key Selling Points:	Energy saving;	process type:	wet process,dry process;

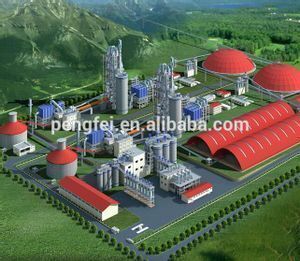

Jiangsu Pengfei 300tpd cement plant professional manufacturer in China

Product Description(cement plant)

Cement production line is the production line construction project composed by a series of corollary equipments which are used for product cement.It is mainly composed by crushing equipment,homogenize equipment,raw material preparation equipment,drying equipment,preheat and predecomposition equipment,the clinker sintering equipment,cooling equipment,grinding equipment,packaging equipment,conveying equipment,environmental production dust collection equipment etc.The jiangsu pengfei group supply process design,civil construction,complete equipment,installation and trial run,technical services,the general contracting.

Design basis:

1.Production method: Establish a 300tpd cement production line with five stage cyclone preheater. From limestone crushing, raw material grinding, burning system, cement mill, packing and other production facilities.

2. designed capacity

Clinker:300tpd

90000tpy Annual operating days: 300

Annual cement production capacity:101020tons

The above product is based on Chinese cement standard, and it can be adjusted as per local cement standard.

3.Cement proportion of bag and bulk

Bagged packing:70% bulk packing:30%

4.transportation method of material and product

Raw materials, fuel, and cement are transported by truck.

Material and heat consumption:

Theoretical material consumption:1.514kg/kg.Cl

Heat consumption for clinker:4098kJ/kg.Cl

Equipment list

Section	Equipment name,specification, and parameter	Capacity
Limestone crushing and conveying	Primary:Jaw crusher Model:400×600 Capacity:17~115t/h Secondary:Hammer crusher Model:800×600 Capacity:25~35t/h	25~35t/h
Iron ore crushing	Jaw crusher:PEX250×750	14m3/h
Raw material grinding	Specification:2.2×7.5m Feeding size:≤25mm Product fineness:12%(0.08mmsquare hole sieve) Main motor power:380kW Closed edge drive	23t/h Middle hardness
Waste gas treatment	Air conditioning tower:Specification:φ3.85×26m Water spraying capacity::4t/h max
Waste gas treatment	electrostatic precipitator Model:CDPK Cross sectional area of electric field:30m2 Processing air volume:112000 m3/h
Preheater system	High temperature fan Model:1858SIBB24 Processing air volume:85000m3/h Full pressure:7200Pa Working temperature:350degree Main motor power:280kW
	Five stage cyclone preheater C1: 1-DIa2569mm C2 ,C3: 1-Dia2769mm C4, C5: 1-Dia2944mm	12.5t/h
	Lift pump Specification: Dia 800×4000mm Lift height: 45m With roots fan: RE-145, 45kW	25m3/h
Kiln medium	Rotary kiln Specification:2.7×45m Slope :3.5% Main speed:0.3~2.25r/min Auxiliary speed:0.08785r/min Main power:75kW	12.5t/h
Kiln outlet, clinker cooling and transportation	Cooler Specification:2.8×28m Main motor:55kW	12.5t/h
Kiln outlet, clinker cooling and transportation	Burner Type:three channels	4t/h
Gypsum crusher	Model:PEX-250×750 Feeding size:≤210mm Discharging size:≤25mm Motor power:30kW	20t/h
Cement grinding	Ball mill Specification:2.2×7.5m Feeding size:≤25mm Product fineness:330m2/kg Main motor :380kW Drive type:edge drive	15t/h
Cement grinding	O-SEPA separator Specification:N-500 Air volume:30000 m3/h	15t/h
Cement packing	Two spouts packer	30t/h

Company Information

The advantage of the position

Pengfei group has the important location, and it is the largest production & export base of large size rotary equipment in China’s coastal area. The advantage of the position: Jiangsu Pengfei Group Co., Ltd locates the main transportation county in the middle of Jiangsu province Haian county. It takes two hours from the company to the international cosmopolis Shanghai City. The international Nantong port and Shanghai port which locates in the Yangtse River Estuary make the large sized equipment export from our company very convenient.

Scope of business

1, It has the great comprehensive ability to provide best quality service on turn-key basis with technology design, complete plant, erection and debugging, commissioning for the new type dry process rotary kiln cement production enterprise under the daily capacity of 10000T.

2, It supplies complete equipments and technical services of grinding, calcination, oil extraction, crushing, dust collecting, conveying and lifting for the metallurgy, the chemical industry, the electrical power, the mine, the coal, the oil, the environmental protection enterprises, etc.

General introduction of the company

The company has the six subsidiary companies such as the mechanical plant, installation plant, electronic plant, casting plant, installation plant, the new type construction material plant, etc. it covers an area of 350000m2 , and has 0.82billion RMB of total assets. There are 1500 personnel and 450 engineers and technicians, the annual manufacturing capacity reaches 300000t. Pengfei has already reached the capacity to manufacture 400 sets of large ball mills, 300 sets of roller press, 260 sets of pre grinding equipments and 150 sets of large rotary kiln per year.

Many thanks for your enquiry and would submit with pleasure in private order.

JiangSu Pengfei Group Co.,Ltd

contact preson(sales manager):Sally Wang

tel:+8615962769091

skype:wang.sally98

whatsapp:+8615962769091
