Slag vertical mill/slag crushing equipment
- 9000000.00 set
| Marketing Type: | Hot Product 2019; | Packaging Detail: | Standard sea packaging; |
| Power(W): | According to design; | Motor: | Simens; |
| Payment Terms: | L/C,T/T; | Port: | Shanghai; |
| Key Selling Points: | Easy to Operate; | Condition: | New; |
| Certification: | CE ISO CCPIT; | Core Components: | Engine,Bearing,Gearbox,Motor,Gear; |
| Place of Origin: | Jiangsu China; | Manufacture: | Jiangsu pengfei Group; |
| Applicable Industries: | Manufacturing Plant,Construction works ; | Video outgoing-inspection: | Provided; |
| Supply Ability: | 6.0 Set/Sets per Year YR; | Machinery Test Report: | Provided; |
| Dimension(L*W*H): | According to design; | Voltage: | 220V 380V 6KV 10KV; |
| Package Preview: | ; | Showroom Location: | Uzbekistan,Tajikistan; |
| Local Service Location: | Kazakhstan,Uzbekistan; | Brand Name: | Jiangsu pengfei; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| Warranty of core components: | 1 YEAR; | Warranty: | Free one year,1 YEAR; |
| Project patern: | Turnkey project; | Weight: | According to design; |

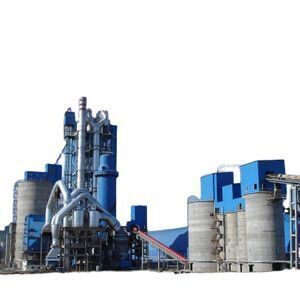

5000 tpd new dry process cement production line
Imp&Exp. Sales Manager:Darek Wang
Mobile: 0086-13862700215
SKYPE: tigertiger7353
Wechat: (0086)13862700215
Main equipments:
|
Sr. No. |
Descriptions |
Quantity |
Main technical Performance |
Capacity |
Power of motor |
Remarks |
|
(Unit) |
(t/h) |
(kW) |
(%) |
|||
|
1 |
Hammer crusher 2022F |
1 |
Output granulating<75mm |
700 |
800 |
|
|
2 |
Limestone pre-homogenizing storage shed |
1 |
Stocking capacity: 1000t/h drawing capacity: 500t/h |
Storage Capacity: 50000t |
||
|
3 |
HRM4800 vertical mill |
1 |
Fineness 14% |
400 |
3800 |
|
|
4 |
HCR5000 pre-heater with calciner |
1 |
Calcining rate feed to kiln is more than 90% |
230 |
|
|
|
5 |
φ4.8×74m rotary kiln |
1 |
n=0.6-4.0 Inclination: 4% |
230 |
630 |
|
|
6 |
Kiln gas beam grate cooler |
1 |
Discharge temperature=ambient +65°C |
230 |
165 |
|
|
7 |
HRM2200 vertical coal mill |
1 |
Fineness of product 8% |
45 |
630 |
|
|
8 |
I.D Fan |
1 |
Air flow: 920000m3/h Pressure: 8000Pa |
|
2500 |
|
|
9 |
Electrostatic precipitator at kiln end |
1 |
Air flow: 820000m3/h Outlet air dust content: <50mg/m3 |
310m2 |
|
|
|
10 |
Roller |
2 |
HFCG140/80 |
365 |
500 |
|
|
11 |
Cement Mill |
2 |
φ4.2×13m |
135 |
3550 |
|
|
12 |
8-spout rotary packing machine |
4 |
8 spouts |
120t/h |
|
|
Storage form and storage capacity of materials
|
Sr. no. |
Name of materials |
Size of Storage silo (m) |
Storage capacity (t) |
Remarks |
|
1 |
Limestone |
φ90m Pre-homogenizing Storage shed |
47000 |
|
|
2 |
Raw material |
42×120m Pre-homogenizing Storage shed |
25000 |
|
|
3 |
Raw meal |
φ22.5×52m Homogenizing silo |
17000 |
|
|
4 |
Clinker |
φ40×50m |
60000 |
|
