cnc plasma cutting machine cnc cutting machine plasma with cheap price

Product details
Rated Power:200A for plasma cutting,60A/100A/120A/160A/200A;Warranty:2 years for jinan plasma cutter;
software:fastcam;Motor Type:Stepper Motor;
Voltage:3 phase 380V/50HZ,3 phase 380V/50HZ;Transmission:X/Y axis with rack;
Local Service Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Philippines,Brazil,Peru,Saudi Arabia,India,Mexico,Russia,Malaysia,Australia;Place of Origin:Shandong China;
Supply Ability:500 Unit/Units per Year;working way:Untouched Arc Striking;
Weight:1000kg for cheap cnc plasma cutting machine;Guide rail:Hiwin Square rail from Taiwan;
Core Components:Bearing,Pump,Gear,Motor,Gearbox,PLC,Pressure vessel,Engine;Applicable Industries:Hotels,Machinery Repair Shops,Construction works ;
Condition:New;Packaging Detail:standard export wood box packing for 2020 new arrivals plasma cnc cutting machine price in pakistani cnc plasma cutter;
Marketing Type:New Product 2020;Showroom Location:Egypt,Canada,United States,Italy,Brazil,Pakistan,India;
Year:new cnc plasma cutter;Model Number:cnc plasma machine;
Brand Name:IGoldenCNC plasma cutting machine;Key Selling Points:Competitive Price;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Weight (KG):1000;
Driver motor:leadshine driver and stepper motor;Dimension(L*W*H):1300*2500mm plasma cutting;
area:1300mm*2500mm cnc plasma cutting machine;Machinery Test Report:Provided;
Dimensions:plasma cnc cutting machine;Warranty of core components:2 years;
table:saw tooth table;Port:qingdao,shanghai,guangzhou,tianjin;
Video outgoing-inspection:Provided;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;



Popular Machine

cnc plasma cutting machine also called plasma cutter, and plasma cutting is a processing method that uses the heat of a high-temperature plasma arc to partially or partially melt (and evaporate) the metal at the incision of the workpiece and uses the momentum of the high-speed plasma to remove the molten metal to form an incision. plasma cutting machine including portable plasma cutter, or table plasma cutting or with rotary device……All all the specification of machine can be customized!!! Now just  click the following machine for more details!


Portable Plasma CNC  Table Plasma CNC  Plasma Cutter CNC
Product Description

cnc plasma cutting machine cnc cutting machine plasma with cheap price

Features:

1) The beam uses light structural design,with good rigidity structure, light deadweight .

2) The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.

3) Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4) Equipped with other advertise equipment (blister/engraving machine) .Improve the efficiency of several times

5) Cutting mouth is small, tidy,and avoid a second dressing processing.









Technical date

+

Model

IGP1530 1325

Working  area (X-Y)

1500mmx3000mm

Working  material

Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium Plates

Working  Thickness

0.5-19 mm

Cutting Speed

0-6000mm/min

Power

8.5kw

Input Voltage

380V 50HZ (or according to your need)

Plasma Current

63A/100A/120A/160A/200A

Connecting Way

USB

Working Mode

Untouched arc striking

Cooling method

With water pump and tank provide circulating water cooling

Z axis travel

0-70mm

The automatic elastic raise

0-5mm

Rail guide

Precision work round

Transmit way

Taiwan imported ball screw

Operation language

English (Option)

Command

G code, *uoo, *mmg, *plt

Optional power source

USA brand Hypertherm

Spare parts

Electrode ,Electricity nozzle and Water jacket

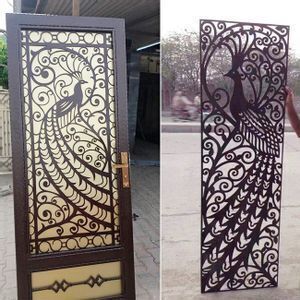

Finished Products

 Application:

1.Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.silver, Titanium and other metal plate and tube.

2. Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.












About us



Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.
