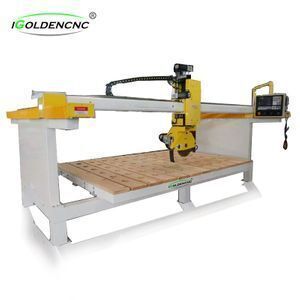

Bridge saw type cnc stone cutting machine for marble granite quartz kitchen countertop

Click here to contact

Product details

Key Selling Points:	High-accuracy;	Port:	Tianjing, Qingdao, Shanghai;
Place of Origin:	Shandong China;	Supply Ability:	200 Set/Sets per Month;
Certification:	CE ISO9001;	Working area:	3000*2000mm;
Brand Name:	iGOLDENCNC;	Servo motor and driver:	With;
Lathe Structure:	T-slot Square Tube;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Power(W):	4.5KW;	Dimension(LWH):	3700mm2200mm1800mm;
Transmission:	X/Y rack and pinion, Z ball screw;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Stone Cutting Machine;	Condition:	New;
Spindle:	water cooling spindle and cutters;	Weight:	2300KG;
Voltage:	AC380V/50Hz;	Showroom Location:	Canada,United Kingdom,Italy,France,Germany,Viet Nam,Brazil,Peru,Mexico,Algeria,Romania,Malaysia,Australia;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Spindle speed:	24000r/min;
keywords:	bridge saw cnc stone cutting machine;	Applicable Industries:	Construction works ,Advertising Company;
Warranty:	2 years;	Packaging Detail:	standard wood case;
Use:	Marble granite stone cutting kitchen countertop,Kitchen countertop cutting polishing edging;	Production Capacity:	100sets/month;
Local Service Location:	Canada,Italy,France,Germany,Viet Nam,Brazil,Peru,Mexico,Spain,Malaysia,Australia,Argentina,Algeria;	Control System:	CNC control System;
Motor power:	4kw;

Bridge saw type cnc stone cutting machine for marble granite quartz kitchen countertop

Product Description

Machine Features

The CNC stone cutting machine is designed to realize X-Y-Z-A 4-axis linkage with more wider utilization.

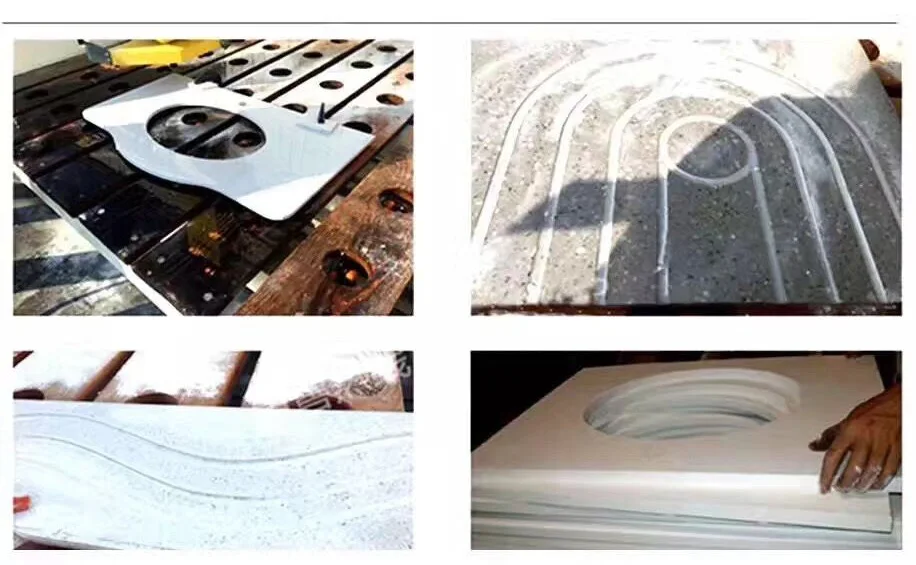

It can be used for cutting, chamfering, polishing, slotting, drilling and arc grinding etc. with easy operation and more practicability.

The machine head can be turned 90 degrees.Precision infrared positioning.

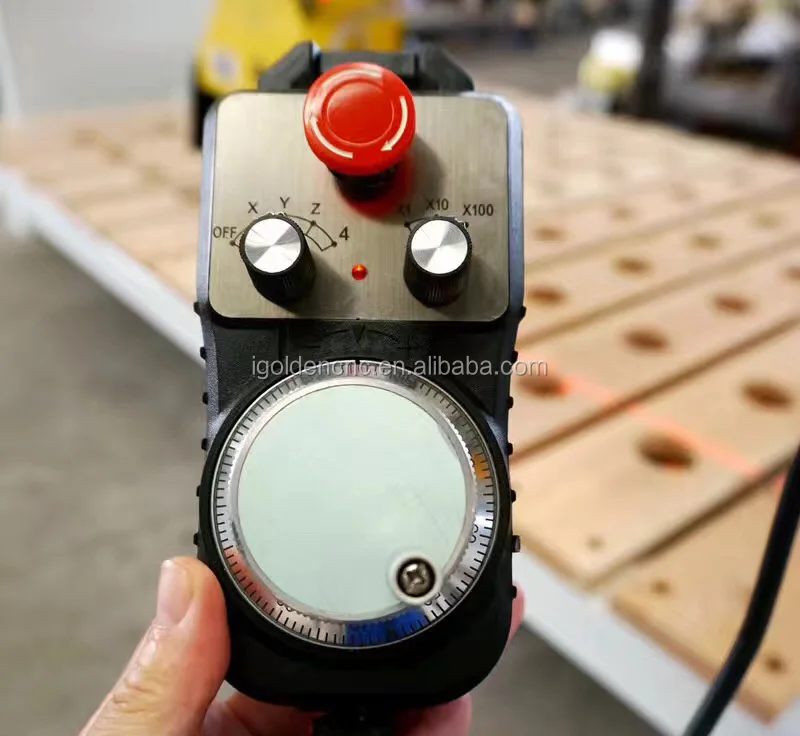

The machine can be operated by hand wheel.

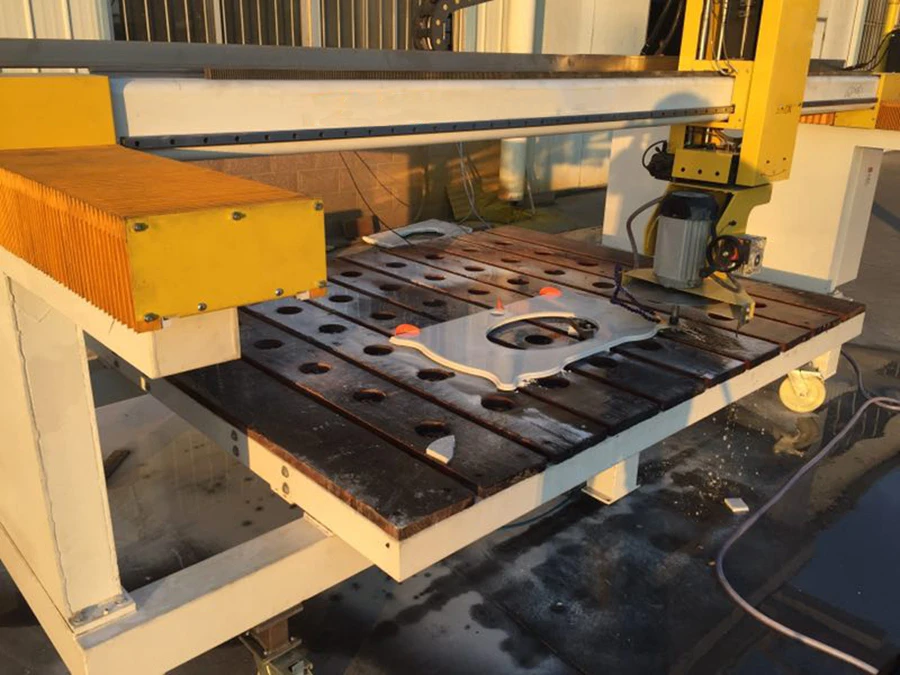

Working table can be turned 87 degree and with loading wheel,easy to feeding.

Technical Parameters

NO.	Description	Parameters
1	Working area	30002000350mm
2	Table size	3000*2000mm
3	Transmission	X/Y rack and pinion, Z ball screw
4	Table structure	T Slot
5	Spindle power	4.5KW
6	Spindle speed	24000r/min
7	Travelling speed	10m/min
8	Working speed	8m/min
9	Working Delicacy	0.005mm
10	Repositioning Accuracy	0.05mm
11	Driving Motor	Servo brand
12	Control System	Special cnc control System
13	Command Code	G Code.u00.mmg*.plt
14	Power(without spindle)	1500W
15	Voltage	AC380/50HZ
16	Tilting table and loading wheel	With
17	Software	Artcam/Type3,other CAD/CAM
