automatic pvc mdf edge banding machine woodworking for wood

Supplier: Shandong Igolden Cnc Technology Co., Ltd.
Region: Shandong, China
Contact: Ms Linda zhen
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Air pressure:	0.7Mpa;
Weight (KG):	1200;	Single package size:	10X10X10 cm;
Machinery Test Report:	Provided;	Warranty of core components:	2 years;
Single gross weight:	10.0 KG;	Function:	edge banding;
Warranty:	2 years for cnc edge banding machine;	Application:	Solid Wood Panels;
Product name:	edge banding machine;	Panel Feed Speed(m/min):	20 m/min;
Condition:	New;	Color:	White cnc edge banding machine;
Panel Width:	70mm;	Packaging Detail:	Standard export plywood case for automatic pvc mdf edge banding machine woodworking for wood;
Panel thickness:	10-50mm;	Voltage:	380V/50Hz(60HZ);
After Warranty Service:	Video technical support,Spare parts,Field maintenance and repair service;	Marketing Type:	New Product 2020;
Video outgoing-inspection:	Provided;	Selling Units:	Single item;
Core Components:	Bearing,Motor,Pump,Gear,PLC,Gearbox,Pressure vessel,Engine;	Key Selling Points:	Sustainable;
Dimension(LWH):	400010001500mm curve edge banding machine;	Applicable Industries:	Construction works ,cnc edge banding machine;
Tape thickness:	0.4-3mm;	Tape width:	12-45mm;
Local Service Location:	Egypt,Canada,United States,Italy;	Certification:	CE ISO9001;
Feed speed:	15-23m/min;	Type:	Edge Banding Machine;
Showroom Location:	Egypt,United States,Malaysia;	Brand Name:	IGOLDENCNC;

Product Description

automatic pvc mdf edge banding machine woodworking for wood

Features:

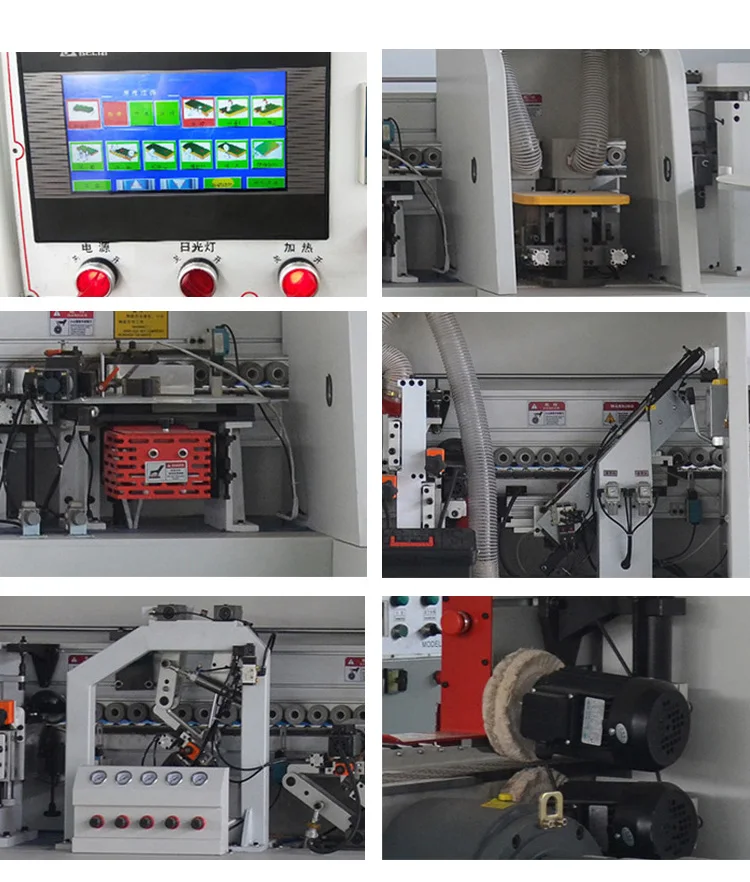

1.Full-automatic edge banding machine function include glue,head together,rough repair,refine,Scraping edgeand polishing.

2.Have good shape,reasonable layout,has sound arrester,dust collector and overload protection.

3.The main parts of the machine adopt steel plate by laser cutting,one time welded together,the body is firm and undeformed.

4.Can increase or decrease component structure according to actual demand.

Parameters:

1	Panel length	≥120mm
2	Panel width	≥60mm
3	Panel thickness	10-60mm
4	Edge band width	12-65mm
5	Edge band thickness	0.4-3mm
6	Feed speed	12/16/20m/min
7	Input Voltage	380V
8	Input frequency	50HZ
9	Output frequency	200HZ
10	Total power	8.23KW
11	Air pressure	6kg/cm2
12	Machine size	420010901540mm

Applications:

1.Cabinet,closet,panel furniture,office furniture,hospital furniture,bank furniture,children furniture.

2.It's mainly used for plywood,fiber board,partical board edge banding.

3.Various wooden door edge banding.
