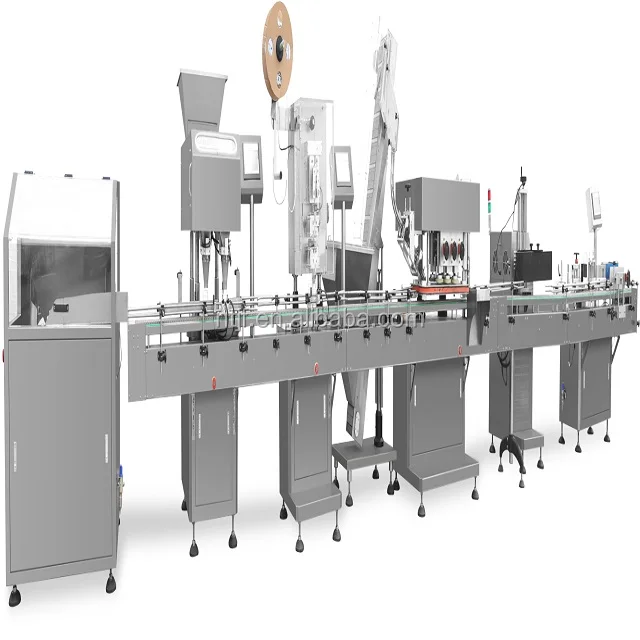

tablet counting and packing line Integrated tablets/capsules/pills automatic filling and packing line

Product details
Weight:2300 kg,2300 kg;Original:Nantong,two hours drive from Shanghai;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Brand Name:Jianfeng;
Function:Packing Filling;Application:Beverage, Chemical, Food, Medical;
Usage:capsule tablet,counting & filling;Place of Origin:Jiangsu China;
Warranty:1 Year;warranty:12 months;
Port:Shanghai or Ningbo port;Supply Ability:40 Case/Cases per Month;
Voltage:220V;Power:4500;
Packaging Detail:Name:JF-A160-16 tablets/capsules/pills automatic packing line Package :wood case Size:10000*2500*1950mm Delivery Detail: 30 days after payment;Packing speed:40-80 bottles(bags)/min;
Packing material:Wood case;Dimension(L*W*H):10000*2500*2900;
Material:Stainless Steel 304/316L;Name:tablets/capsules/pills automatic packing line;
Condition:New;Certification:CE ISO;
Payment Terms:L/C,D/A,D/P,T/T;
Working principle

Used for tablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.



Product Description

Main features

1.Wide applicability, with our original anti-dust technology, it can be used for tablets( including abnormal tablets), capsules, gels( including abnormal gels, transparent gels and opaque gels) pearls and most kind of tabloids.
2.High-intelligentce: intelligent design of each machine with interactive operating multi-language panel. Can save 10~20 kinds of different operating parameters and easy to load for different products. Self-diagnose ,displays errors and make alarms. Well cooperation between each machine and in the whole line.
3.High efficiency. Take purposed to operate, easy to operate, to adjust, to clean and to maintain. Low working cost, low maintain cost. 3 workers will be enough to operate.
4.Small in size and low cost in power.
5. Control system: adopting PLC and touch screen control.

Main technical param

 Applicable bottle shape :round,square plastic bottle

Filling material: Φ00~5#capsule,soft capsule,Φ5.5~20compressed tablet,special-shaped tablet,sugarcoated tablet,Φ3~20 pill

Production capacity:40~80 bottles per minute(It depends on the bottle size,filling quantity and the tablet size)

Setting range of bottling volume:1—9999

Power supply:AC220V 50Hz 4.4kw

Accuracy rate:>99.5%(higher than the industrial standard )

Air pressure:0.6Mpa

Overall dimension:10000×2500×1950mm

 Weight:2300kg
Configuration



NO

Name

 Manufacturer

1

Motor

  TQG(Taiwan)

2

See bottle of photoelectric sensor

 OMRON

3

Count the Photoelectric Head

Adopt Everlight Electronics., Ltd

4

Pneumatic Components

SMC

5

Switch button

French schneider

6man-machine interface

 Adopt Delta-China(Siemens)

7

Main control chip

Using imported STMicroelectronics co., LTD

8

The leakage switch

Germany's Siemens

9

Switching power suppy

French schneider

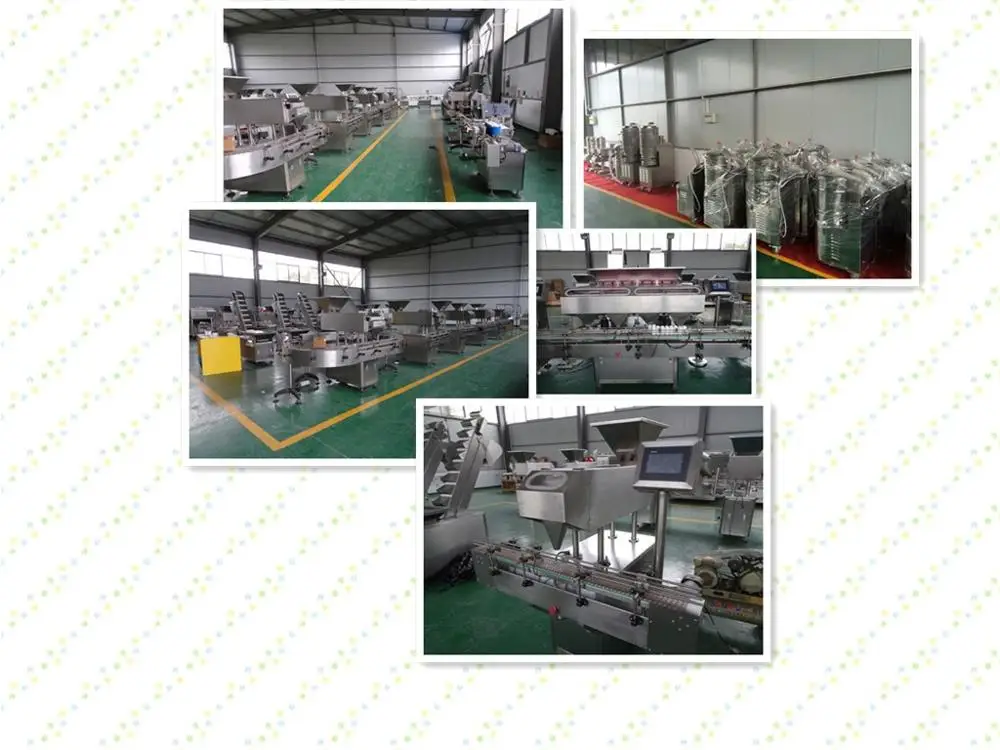

Company Information
