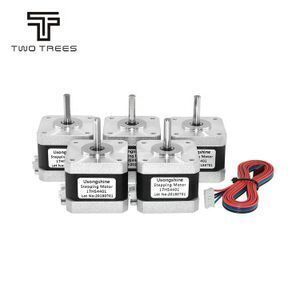

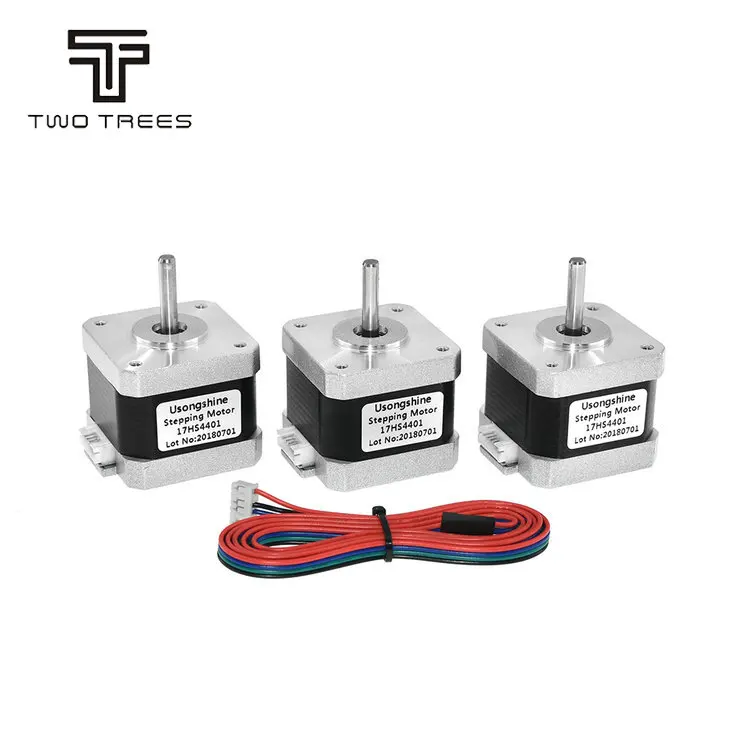

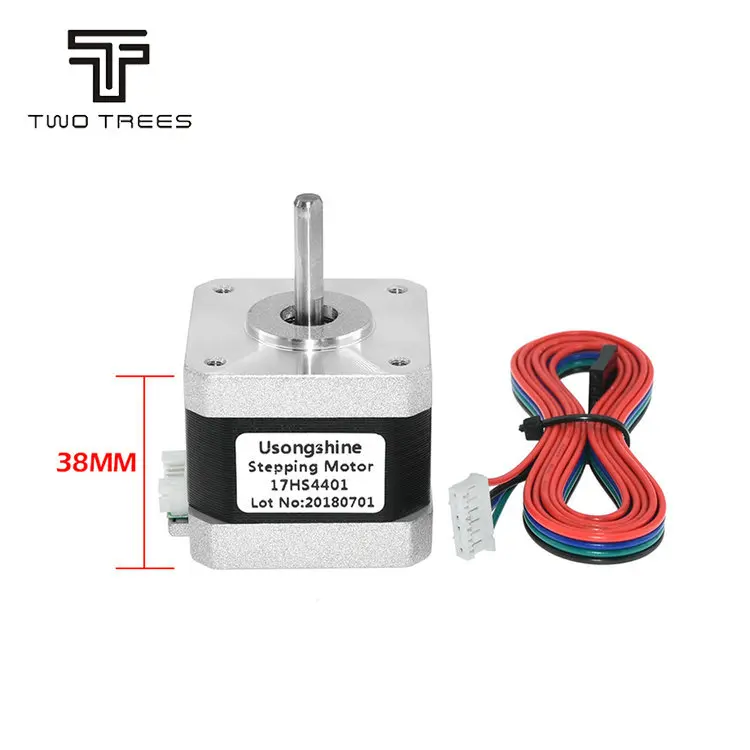

Nema17 stepper motor 2 phase 1.8 degrees 1.5A 3d printer hybrid driver motor stepper step motor 17hs4401
-
Supplier: Shenzhen Twotrees Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Angel Ma -
Price: $3.74 / >=5 pieces -
Min. Order: 5 pieces
Product details
| Place of Origin: | Guangdong China; | Maximum starting rate: | ≥1500 PPS; |
| Single gross weight: | 0.267 KG; | Brand Name: | Twotrees; |
| Electrical strength: | AC600V/1mA/1S; | Positioning Torque: | 15 mN.m REF.; |
| Insulation resistance: | ≥100 MΩ (DC 500V); | Rated Current: | DC 1.5A/Phase; |
| Rotating direction: | A-AB-B Clockwise; | Selling Units: | Single item; |

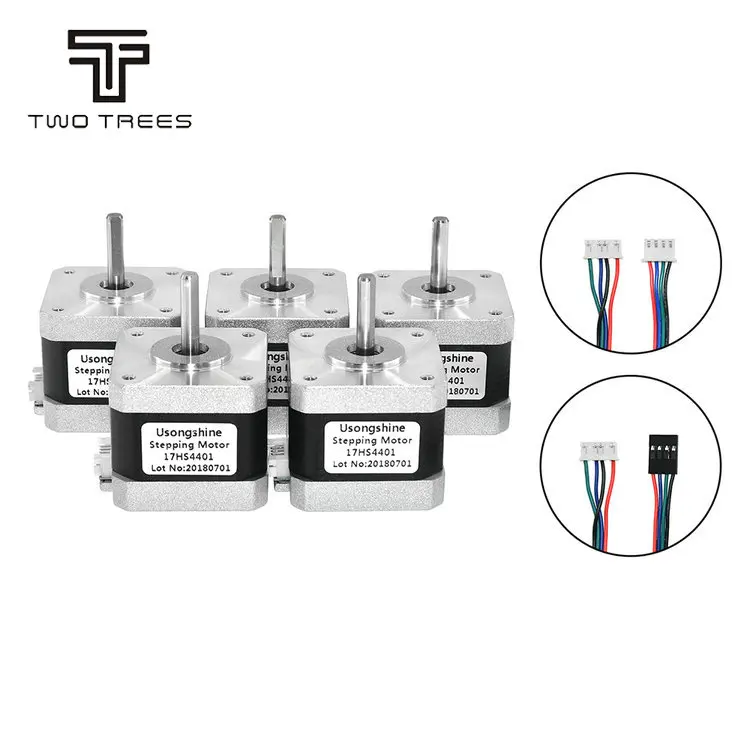

| Type: | Hybrid; | Packaging Detail: | Box packaging,One motor with a DuPont line or XH2.54 line; |
| Step Angle(degrees): | 1.8°±0.09°; | Single package size: | 10X8X5 cm; |
| Maximum slewing rate: | ≥1900 PPS; | Insulation class: | B; |
| Product name: | Nema 17 stepper motor 17HS4401; | Certification: | ce,ISO,RoHS; |
| Phase: | 2; | Current / Phase: | DC 1.5A/Phase; |
| Model Number: | 17HS4401; |
Product Description
15 mN.m high torque 2 phase 1.8 degrees 1.5A 3d printer xyz axis hybrid driver motor stepper step motor 17hs4401
| Feature | Specification | Feature | specification |
| Phase | 2 | Step Angle(degrees) | 1.8°±0.09° |
| Rated Voltage | DC 3.6V | Rated Current | DC 1.5A/Phase |
| Phase Resistance(20℃) | 2.4*(1±15%)Ω/Phase | Phase Inductance | 3.7*(1±20%)mH/Phase |
| Holding Torque | ≥420mN.m | Positioning Torque | 15 mN.m REF. |
| Rotating direction | A-AB-B Clockwise | Maximum starting rate | ≥1500 PPS |
| Maximum slewing rate | ≥1900 PPS | Insulation resistance | ≥100 MΩ (DC 500V) |
| Electrical strength | AC600V/1mA/1S | Insulation class | B |
+
| Unmarked tolerances according to IT14 |  | |
| Basic parameters/mm | Tolerance value | |
| 0-3 | 0.25 | |
| 3-6 | 0.3 | |
| 6-10 | 0.36 | |
| 10-18 | 0.43 | |
| 18-30 | 0.52 | |
| 30-50 | 0.63 | |
