waste plastic PE film washing recycling line machine

Product details
Power(W):pp pe washing machine;Color:Customers' Request;
Warranty:1 Year;After-sales Service Provided:Field installation, commissioning and training;
Selling Units:Single item;Dimension(L*W*H):pp pe washing machine;
Motor:SIEMENS/ WEG/ customized;Weight:pp pe washing machine;
Material Processed:PE PET PP;Place of Origin:Jiangsu China (Mainland);
Contactor:Schneider or customized;Delivery Detail:0 days after payment;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE ISO9001;
Capacity:300kg/h-2000kg/h;Application:Plastic Recycling;
Voltage:380v 50hz 3phase customized;Single package size:6X1X2 cm;
Automatic Grade:Automatic;Condition:New;
Stainless steel:SUS 304;Brand Name:BENK;
Single gross weight:30,000 KG;Production Capacity:300-2000kg/h;
Name:Agricultural Film recycling line;
Product Description

Product Application

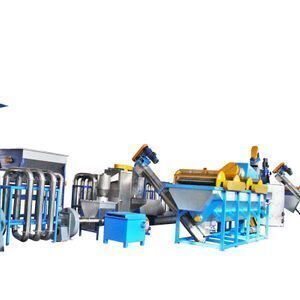

PP PE film washing machine/waste plastic recycle line is mainly for PP PE film materials' washing crushing and drying. The complete line is fully- automatic and it has characteristics of high efficiency, low energy consumption, low noise and easy operation. The recycling line can easily crushing, washing and drying wasted plastic products from beginning to finished products. Waste and dirty agricultural films and waste packing material or rigid plastics can be treated step by step by this machine.

Main Features

1) Simple structure in linear type, easy in installation and maintain.
2) Adopting advanced world famous brand components in electric parts, inverter parts and operation parts.
3) Running in a high automatization and intellectualization, no pollution.
4) Main machine capacity type: 200kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h
5) Machine part that contact with water is all made by stainless steel, except the crusher.
6) Main power consumption: 50-250KW.
7) Main water consumption: 2 ton per hour.
8) Complete line size: 30m*2.5m*3m.
Main Configuration
1
Belt conveyor
1set
2
Crusher
1set
3

High speed friction washing machine

1set
4
Floating washer
1set
5
Screw conveyor
1set
6
Squeezing dryer
1set
7
Electric cabinet
1set
Detailed Images

Belt conveyor

1. Effective length: 5 meters/6m
2. Effective width: 500mm/600mm/800mm
3. Belt conveying speed: 2-6m/min
4. Speed adjust: Automatic

Plastic crusher with water

1. Crusher type:PC-400,PC-500,PC-800,PC-1500.
2. Crushing type:crushing with water
3. Fixed knife:2 pieces
4. Rotary knife:6 pieces

High speed friction washer

1. Body material is all made by stainless steel
2. Screw diameter:380mm
3. Screw material:stainless steel
4. Motor power:7.5KW/15KW
5. Main shaft speed:560r/min

Floating washer

1. Effective length:6meter
2. Effective width:1300mm
3. Body material:stainless steel

4. Floating wheel quantity:5 pieces/6pieces
5. Screw loading power:4KW
6. Dust discharge motor:1.5KW

Dewatering machine and heating device

Hot air drying system

Single screw extruder

 Hydraulic screen changer& pelletizer

Pelletizer and vibrating water tank

Final product silo

Our Service

Pre-Sales Service

* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.

After-Sales Service

* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always up date the new technology to every customer.

Packing & Delivery
Packaging
Size
40HQ container*2
Weight
8 T



Packaging Details


We will use pe film for packing or pack it according to customers special request.
