plastic PP PE Film washing and recycling machine

Supplier: Zhangjiagang City Benk Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr BENK MACHINE
Price: $18001.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Power(W):	pp pe washing machine;
Payment Terms:	L/C,T/T,Western Union;	Color:	Customer Choice;
Brand Name:	BENK;	Packaging Detail:	Packed by Film, some by Wooden Case;
Condition:	New;	Certification:	CE ISO9001;
Place of Origin:	Jiangsu China (Mainland);	Dimension(LWH):	pp pe washing machine;
Stainless steel:	SUS 304;	Supply Ability:	50 Set/Sets per Year;
Contactor:	Schneider or customized;	Production Capacity:	300-2000kg/h;
Port:	Shanghai;	Crusher Blade:	SKD-11;
Weight:	5-10T;	Motor:	SIEMENS/ WEG/ customized;
Automatic Grade:	Automatic;	Voltage:	380v 50hz 3phase customized;
Warranty:	1 Year;	Material Processed:	PE PET PP;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	Plastic Recycling;
Capacity:	300kg/h-2000kg/h;

Product Description

Product Application

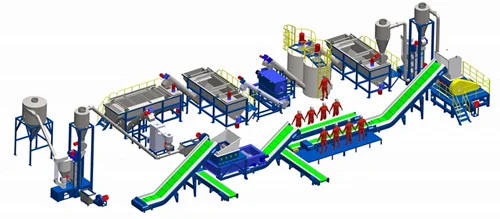

plastic PP PE Film washing and recycling machine/ pp pe film crushing washing machine/ waste plastic recycle line is mainly for PP PE film materials' washing crushing and drying. The complete line is fully- automatic and it has characteristics of high efficiency, low energy consumption, low noise and easy operation. The recycling line can easily crushing, washing and drying wasted plastic products from beginning to finished products. Waste and dirty agricultural films and waste packing material or rigid plastics can be treated step by step by this machine.

Main Features

1) Simple structure in linear type, easy in installation and maintain.
2) Adopting advanced world famous brand components in electric parts, inverter parts and operation parts.
3) Running in a high automatization and intellectualization, no pollution.
4) Main machine capacity type: 200kg/h, 300kg/h, 500kg/h, 1000kg/h, 2000kg/h
5) Machine part that contact with water is all made by stainless steel, except the crusher.
6) Main power consumption: 50-250KW.
7) Main water consumption: 2 ton per hour.
8) Complete line size: 30m*2.5m*3m.

Main Configuration

1	Belt conveyor	1set
2	Crusher	1set
3	High speed friction washing machine	1set
4	Floating washer	1set
5	Screw conveyor	1set
6	Squeezing dryer	1set
7	Electric cabinet	1set

Detailed Images

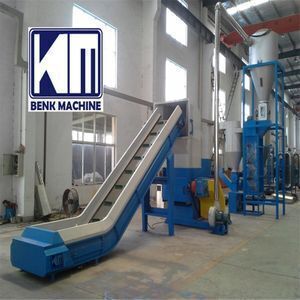

Belt conveyor

1. Effective length: 5 meters/6m
2. Effective width: 500mm/600mm/800mm
3. Belt conveying speed: 2-6m/min
4. Speed adjust: Automatic

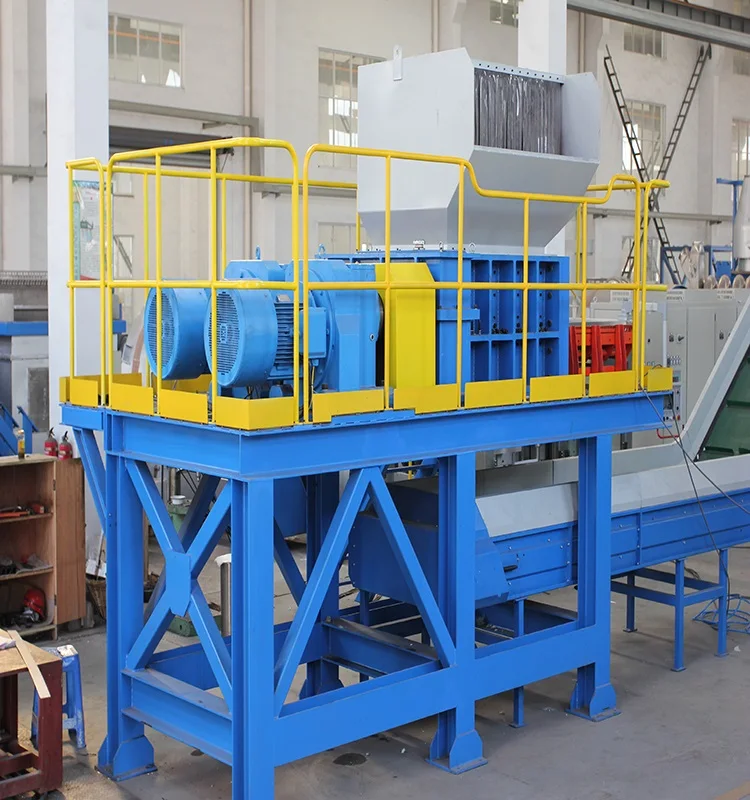

Plastic crusher with water

1. Crusher type:PC-400,PC-500,PC-800,PC-1500.
2. Crushing type:crushing with water
3. Fixed knife:2 pieces
4. Rotary knife:6 pieces

High speed friction washer

1. Body material is all made by stainless steel
2. Screw diameter:380mm
3. Screw material:stainless steel
4. Motor power:7.5KW/15KW
5. Main shaft speed:560r/min

Floating washer

1. Effective length:6meter
2. Effective width:1300mm
3. Body material:stainless steel

4. Floating wheel quantity:5 pieces/6pieces
5. Screw loading power:4KW
6. Dust discharge motor:1.5KW

Our Service

Pre-Sales Service

* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.

After-Sales Service

* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always up date the new technology to every customer.

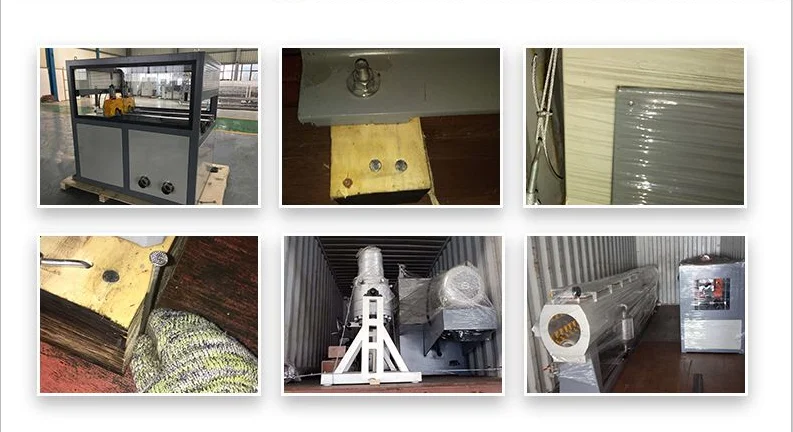

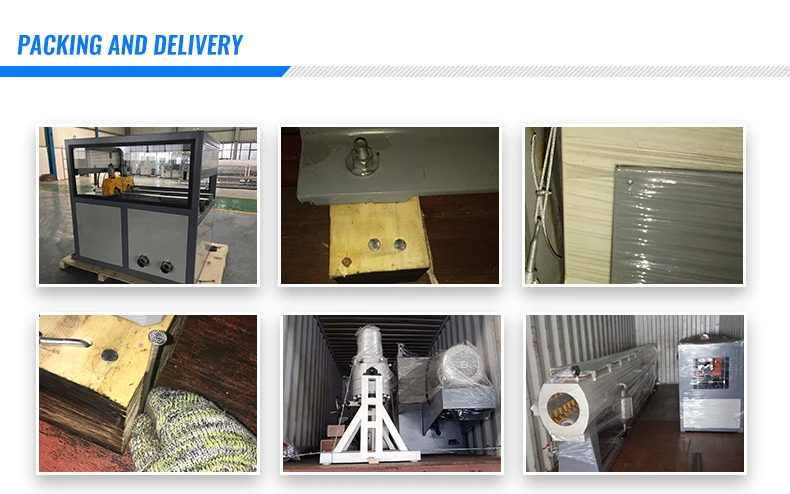

Packing & Delivery
