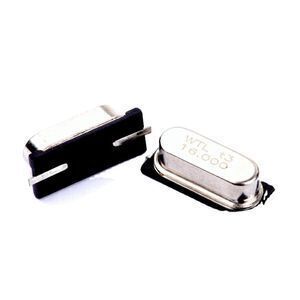

Free Sample 13.575 MHz HC-49SMD Quartz Resonator with RoHS Compliant
- 0.05 >=10 pieces
| Packaging Detail: | tape and reel package,1000pcs/reel(13.575 MHz HC-49SMD Quartz Resonator with RoHS Compliant); | Supply Ability: | 1000000.0 Piece/Pieces per Month; |
| Cetificate: | ISO9001, ISO14001, SGS, RoHS; | Place of Origin: | China; |
| Frequency: | 13.575MHz,13.575 MHz; | Frequency Range: | 3.2 MHz-100 MHz; |
| Warranty: | Global 180 Days Return; | Model Number: | WX7; |
| Item: | Quartz Resonator; | Sample: | support; |
| Package Type: | SMD; | Cross Reference: | ABLS2,SMU2 SMU4,HCM49; |
| Supplier Type: | Original manufacturer; | Impedance: | None; |
| Brand Name: | WTL; | About Us: | 20 Years Experience; |
| Shipment: | DHL, UPS, Fedex, EMS,China Post; | Capacitance: | 7pF; |
| Operating Temperature: | -40°C ~ +85°C; | Package: | Tape and reel; |
| Frequency Stability: | ±30ppm; | Payment Terms: | L/C,T/T,Western Union,credit card and paypal; |
| D/C: | None; | Port: | Shenzhen; |
| Frequency Tolerance: | 30ppm,±30ppm; | OEM/ODM: | support; |
| 品名: | Quartz Resonator; |
WTL----Win-win To Long
WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.
Website: www.wtlcrystals.com
FEATURE
1. Height 4.0mm or 3.0mm,compact unit for surface mount
2. Able to by means of a metal case and completely sealed high solution characteristics
3. Copes with high density mounting and is the optimum for mass production
ELECTRICAL SPECIFICATIONS
|
Resistance Welded HC-49/S Surface Mount Package |
|
|
Item |
Specifications |
|
Frequency Range |
3.579545 to 100.000 MHz |
|
Load Capacitance(CL) |
Series,16pF,18pF,20pF,30pF, or specify |
|
Frequency Tolerance (at 25°C) |
± 30ppm at 25±2°C(standard) or specify |
|
Frequency Stability Over Operating |
± 30ppm(Typical), or specify |
|
Operating Temperature Range |
-10°C--+60°C, -20°C--+70°C,-40°C--85°C, or specify |
|
Storage Temperature Range |
-40°C--+85 °C |
|
Shunt Capacitance (C0) |
7pF Max |
|
Driver Level(Typical) |
100µW Typical |
|
Aging(at 25°C) |
± 5ppm/year maximum |
13.575 MHz HC-49SMD Quartz Resonator with RoHS Compliant
1.19 Years Experience
2.PCB VS Crystal Matching Test for Free
3.FAE Support
4.Certification: ISO9001, ISO14001, SGS, RoHS
5.Provide A Full Set of Reliability Lab
6.Door to Door Service
7.Global 180 Days Return
8.Over 72 Countries and Regions, 27 Distributors
9.Custom-made Frequencies Due to we have our own Wafer Production Line
Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!
