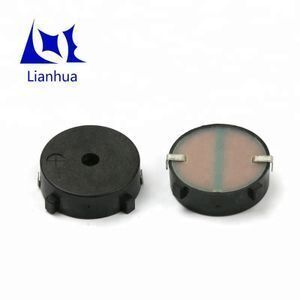

LPT2270AS cheap 22mm 12v 24v 90db smd piezo buzzer for audio equipment
- 0.26 piece
| Termination: | none; | Operating Voltage: | 1-30 Vp-p; |
| Technology: | PIEZO; | Voltage - Rated: | 12; |
| Voltage Range: | 1~30; | Height - Seated (Max): | 7.3; |
| Weight: | 2.8g; | Frequency - Self Resonant: | 4.0±0.5KHz; |
| Input Type: | AC; | Capacitance @ Frequency: | 19000pF @ 100Hz; |
| Color: | black; | 品名: | Buzzer; |
| Model Number: | LPT2270AS; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,accept paypal; |
| Supply Ability: | 500000 Piece/Pieces per Month; | Brand Name: | lianhua; |
| Mounting Type: | Surface Mount; | SPL: | 95dB; |
| Place of Origin: | Jiangsu China; | Size / Dimension: | 22.6*7; |
| Port: | SHANGHAI; | Certification: | ISO9001,IATF16949; |
| Size: | 22 * 7mm; | Height (Max): | 7.3mm; |
| Location: | Changzhou buzzer manufactory; | Current - Supply: | ≤12mA; |
| Operating Temperature: | -30°C ~ 85°C; | Voltage - Input (Max): | 30V p-p; |
| Application: | Audio equipment; | Packaging Detail: | 1.Total 3000 PCS carton 2.Volume:60*36*36; |
| Rated Voltage: | 12v,12 Vp-p; | Operating Mode: | continuous; |
| Frequency Range: | ≥95dB; | Material: | plastic; |
| Frequency: | 4.0±0.5KHz; | Type: | Buzzer,SMD piezo buzzer; |
| Rated Current: | Max.5mA; |
1. Dimension of SMD buzzer |
2. Specification of SMD buzzer |
Rated Voltage | (Vp-p) | 5 |
Operating Voltage | (Vp-p) | 1~30 |
*Rated Current | (mA) | ≤12 |
*Sound Output at 10cm | (dB) | ≥95 |
*Resonance Frequency | (KHz) | 4.0±0.5 |
Tone |
| Continuous |
Operating Temperature | (℃) | -30~+85 |
Storage Temperature | (℃) | -40~+90 |
Housing Material |
| PPO |
RoHS |
| Yes |
Quantity | (PCS) | 3000 |
Carton | (CM) | 60*36*36 |
Gross Weight | (Kg) | 14.78 |
3. Frequency curve of SMD buzzer |
4. Related buzzer |
SMD Magnetic Buzzer Piezo Buzzer Piezo Element
LET5020DS LPB4221BW FT-35G
5. Package of SMD buzzer |
6. Our company |
1.One of the leading manufacturers specilized in acoustic component since 1995.
We supply SMD buzzers,automotive buzzers,piezo buzzers,electro-magnetic buzzers
and piezo elements.
2.Capable to make 5 to 8 million products monthly
Our factory covers 5000 square meters and our company has more than 250 skillful
workers and 20 experienced engineers.It is furnished with advanced facilities for
production with four automatic machines.
3.Operating according to IATF16949,IOS 14000 and IOS 9000 guidelines to
ensure the highest quality all the time.
7. Audit Customer |
8. SMD buzzer exhibition |
1. Global Source Electronics Fair in Asia World-Expo of HongKong , Oct 11-14,2016,
Our booth No:9G17
2. Munich Electronica Fair,November 8-11,2016,Our booth No:B6.561/1.
10. SMD buzzer certification |
11. SMD buzzer transport |
12. FAQ of SMD buzzer |
| 1. Q: When can we get the reply? |
| Any inquiries will be replied within 24 hours. |
| 2. Q: Can i have samples? |
A: Yes. Sample is surely ok. We can even send you free sample and you should only payfor the freight fee. |
| 3. Q: What about minimum order quantity? |
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first. |
| 4. Q: What about delivery time? |
| A: We will send sample to you within 3 days. |
Production for big quantity needs 7 to 15 days. And it also dependson product and quantity. |
| 5. Q: What about terms of payment? |
| A: Payment terms: T/T, west Union, Paypal and L/C etc. |
| 6. Q: How you will send the goods to us? |
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc. |
| 7. Q: Are you trading company or manufacturer ? |
| A: We are changzhou buzzer manufactory |
| 8. Q: Do you support OEM and ODM services? |
| A: Yes, surely support. we can customize products according to the drawing. |
| 9. Q: Can you provide driven circuit? |
| A: Yes, of course sure. |
| 10. Q: Can you solve technical problems for us? |
| A: Yes, Our Technical team will try our best to support you. |
