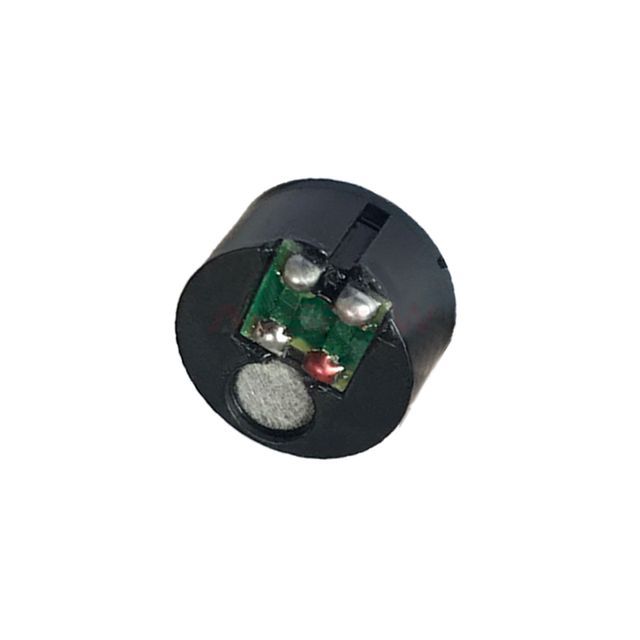

AOSPOW Dynamic Microphone Element AOSPOW Capsule 150 ohm Unidirectional Dynamic Microphone Parts
- 1.30 5000 - 9999 pieces
- 1.20 10000 - 19999 pieces
- 1.10 >=20000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Operating Temperature: | -20℃～70℃ | size: | 15*8mm |
| Input Type: | DC | Frequency Range: | 100-9000 Hz |
| Payment Terms: | Western Union, T/T, MoneyGram | Efficiency - Type: | Sensitivity |
| technology: | not applicable | Brand Name: | Aofei |
| Material: | aluminum | Frequency Response: | 100-9000 Hz |
| type: | microphone | Size/Dimensions: | 15*8mm |
| Installation Type: | wire | Seating height (maximum): | 8 mm |
| Sensitivity: | -66±2dB | frequency: | 100-9000 Hz |
| Part Name: | Dynamic Microphone | model: | Model:ASF-DM1508K150 |
| Directional characteristics: | unidirectional | termination: | Quick Connect |
| Height (max): | 8 mm | impedance: | 150Ω,150Ω |
| Output Type: | Digital, I²S | Origin: | Guangdong, China |
Product Description
Part Name: | Dynamic Microphone | ||||||
Model: | DM1508K150 is designed for | ||||||
impedance: | 150Ω | ||||||
Sensitivity: | -66±2dB | ||||||

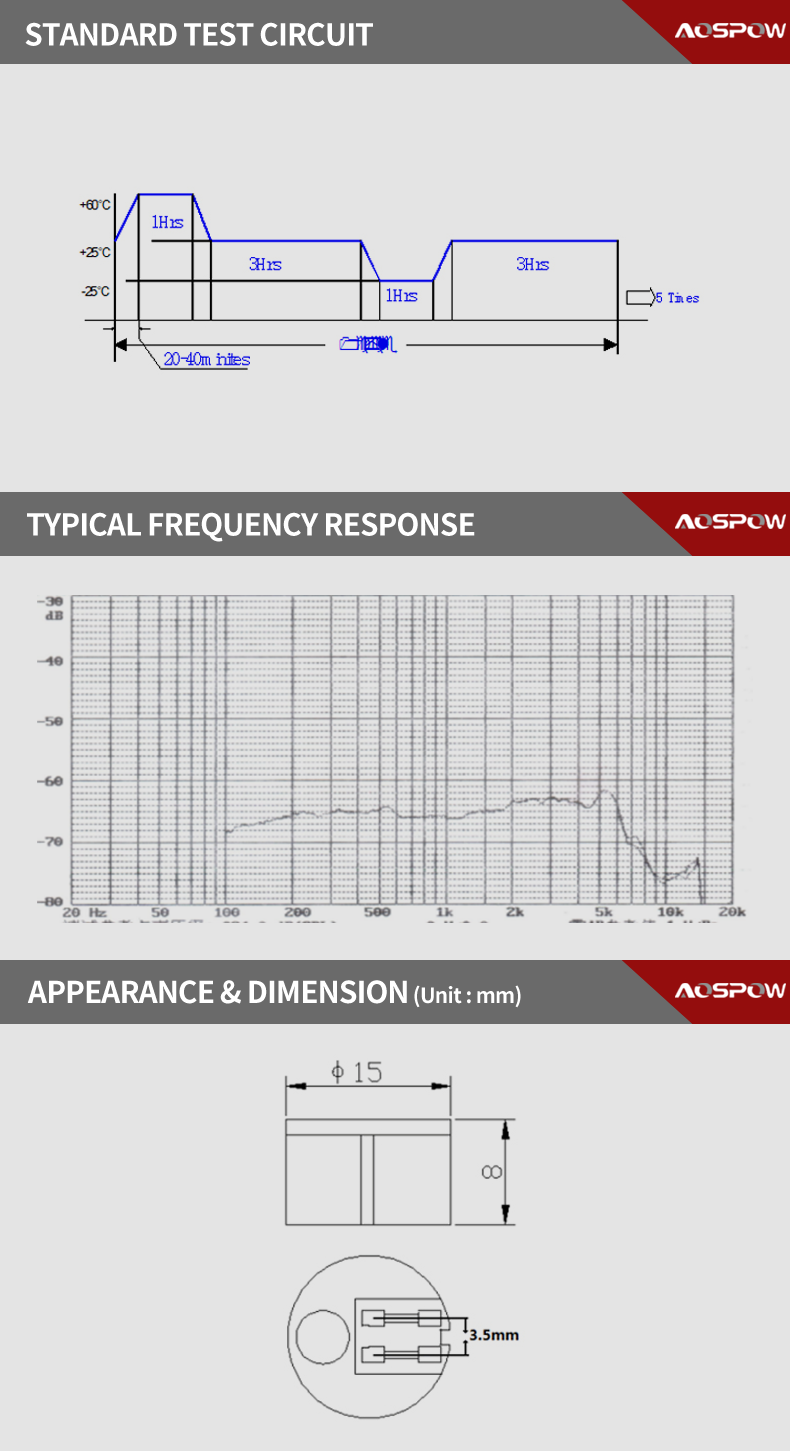

Frequency Response: | 100-9000 Hz | ||||||
Specification: | 15*8mm | ||||||
type: | Dynamic | ||||||
Q1: Can I get free samples?
A1: If what you need is our regular product, we can provide you with free samples below 10 pieces. In addition, we will charge you all the related shipping costs.
Q2: How do you control product quality?

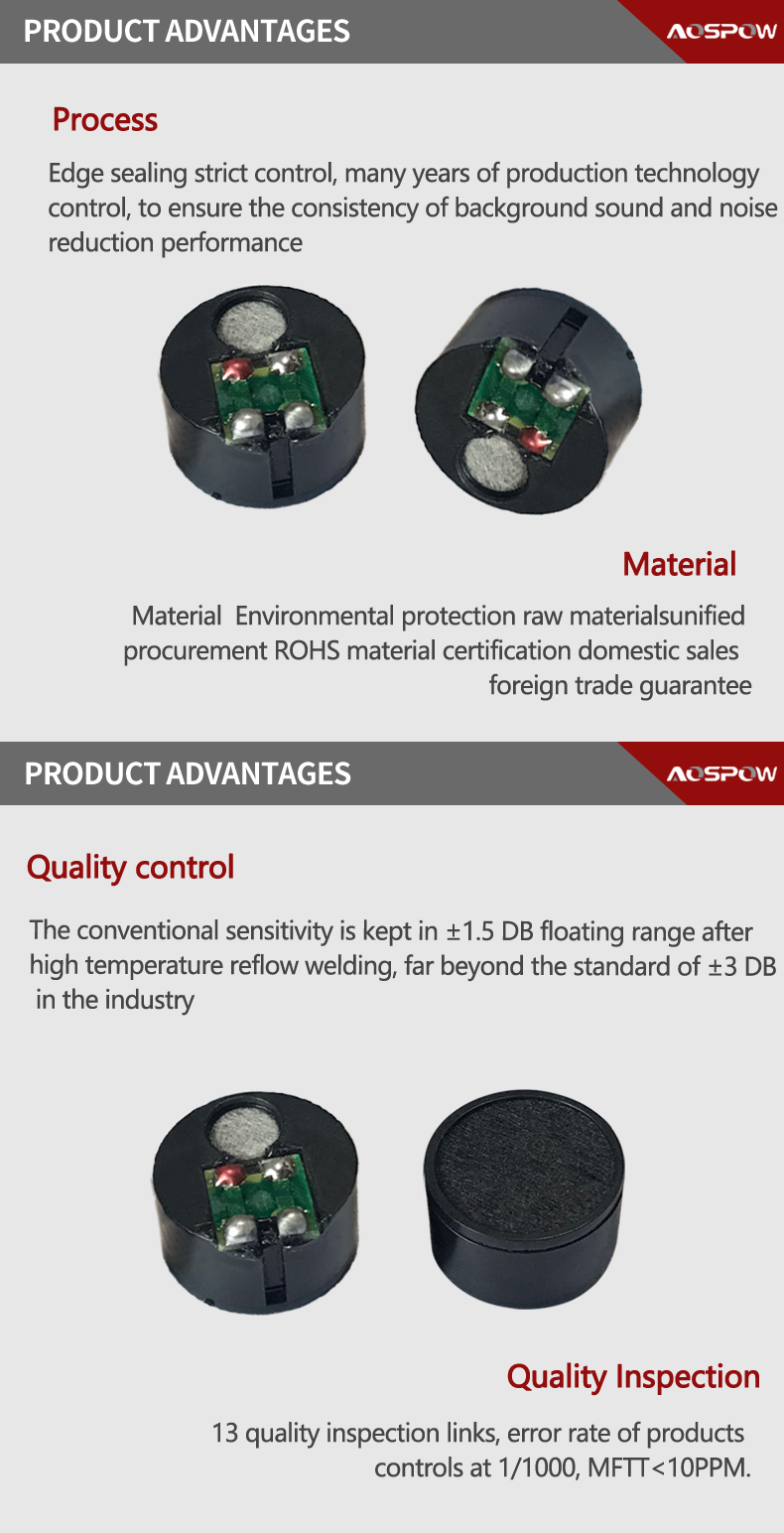

A2: Our products have strict production process requirements and strict quality inspection standards. The conventional sensitivity is maintained within the ±2 dB floating range, far exceeding the industry standard of ±3 dB. In addition, our production meets the requirements of ISO9000, 14000, ROHS, CE and FCC.
Q3: Can you customize, modify and develop products according to the design drawings?
A3: Yes, we provide OEM service and can customize products according to drawings. If the product needs to develop a new mold, you need to charge the mold and sample fees. We will refund after confirming a certain number of orders.
