Active electromagnetic beacon 12095

Click here to contact

Product details

Cross reference:	/	Frequency - Self-resonance:	2500±200Hz
model:	TMB-12095-3V	Output type:	not applicable
Operating mode:	single tone	technology:	magnetic
letter of credit:	3V	period:	Changing
Material:	custom	Input type:	DC
frequency:	2500±200Hz	impedance:	/

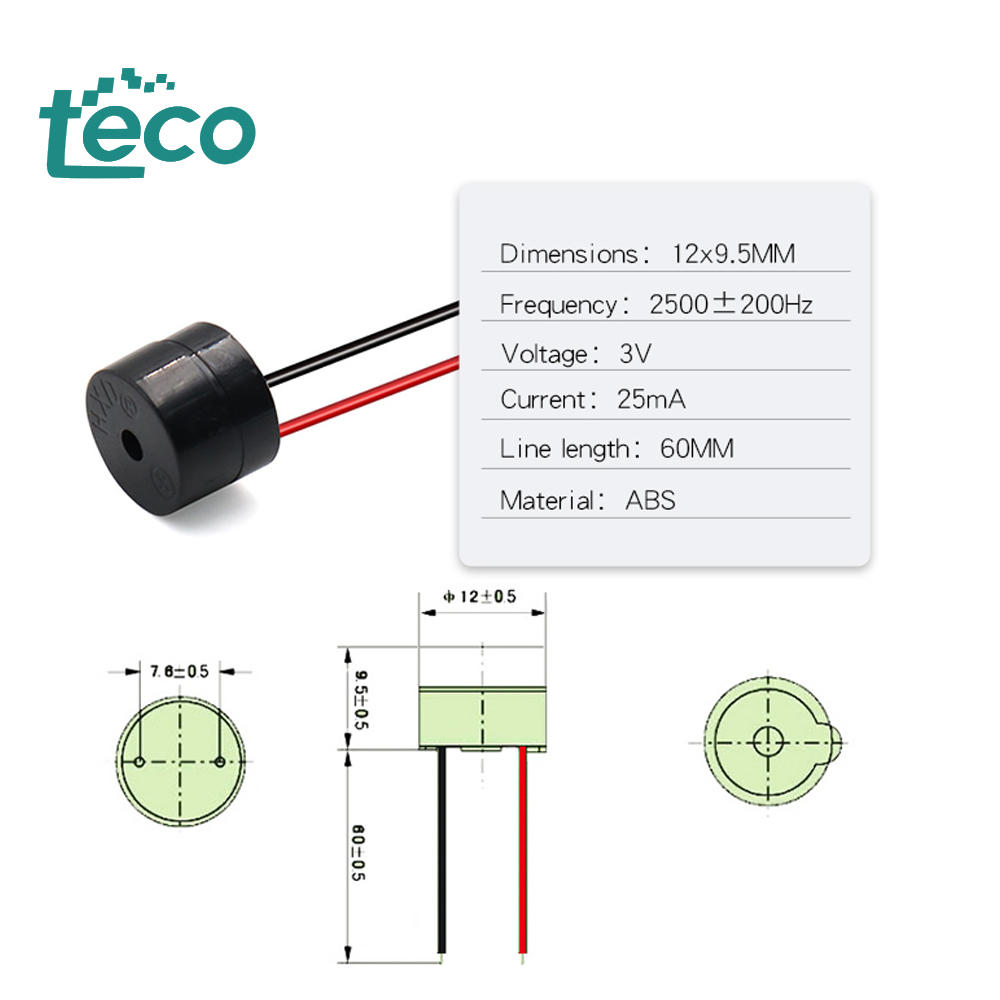

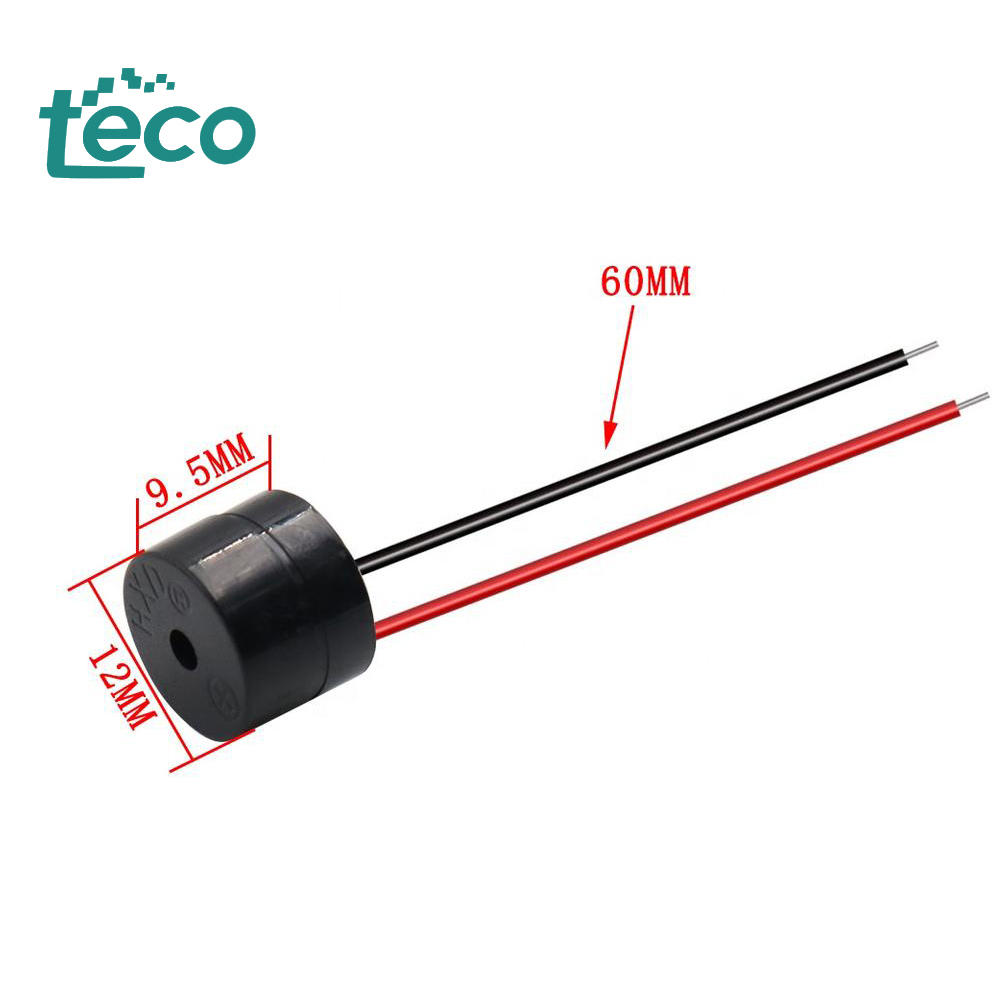

Power - Max:	/	Dimensions/Dimensions:	12*9.5MM
termination:	lead	brand:	TECO
type:	magnetic buzzer	color:	Black
application:	Electrical appliances	rated power:	/
port:	Ningbo/Shanghai	Operating temperature:	-20℃~75℃
Rated voltage:	3VDC	Place of origin:	Zhejiang, China
Efficiency - Type:	not applicable	Sitting height (maximum):	9.5MM
Rated voltage:	/	payment terms:	Presentation of documents, presentation of documents, wire transfer
Installation type:	Through hole	Capacitance@frequency:	not applicable
Voltage - Input (Max):	not applicable	Packaging details:	Standard export packaging packaging type: 50PCS / BOX 1000PCS /CARTON
Minimum sound output at 10 cm:	85 decibels	powered by:	25mA

model	TMB-12095-3V magnetic buzzer
building materials	Polybutylene terephthalate
Resonance frequency (KHZ)	2500±200
Rated voltage (DC)	3
minute. Sound output at 10cm at rated voltage (dB)	85
